NRG INSTRUCTIONS

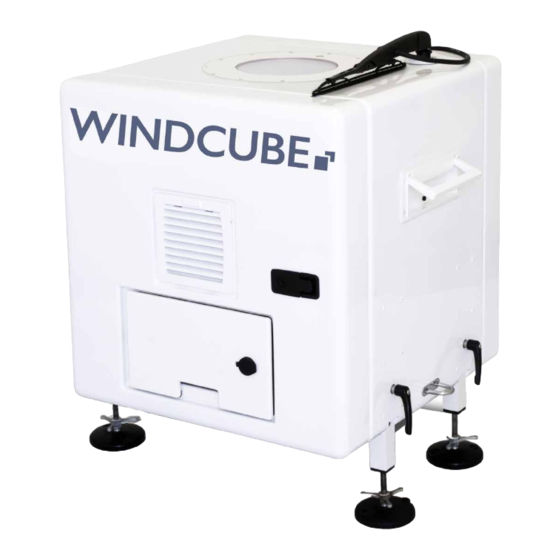

Windcube v2 Winter Performance Kit | Assembly Instructions
SUMMARY
Below are instructions for installing the Winter
Performance Kit with Windcube Profiler Lidars. To
uninstall, follow the procedure in reverse order.
Please contact NRG Technical Services if there are
any questions during installation:
+1 (802) 482-2255 x3
support@nrgsystems.com

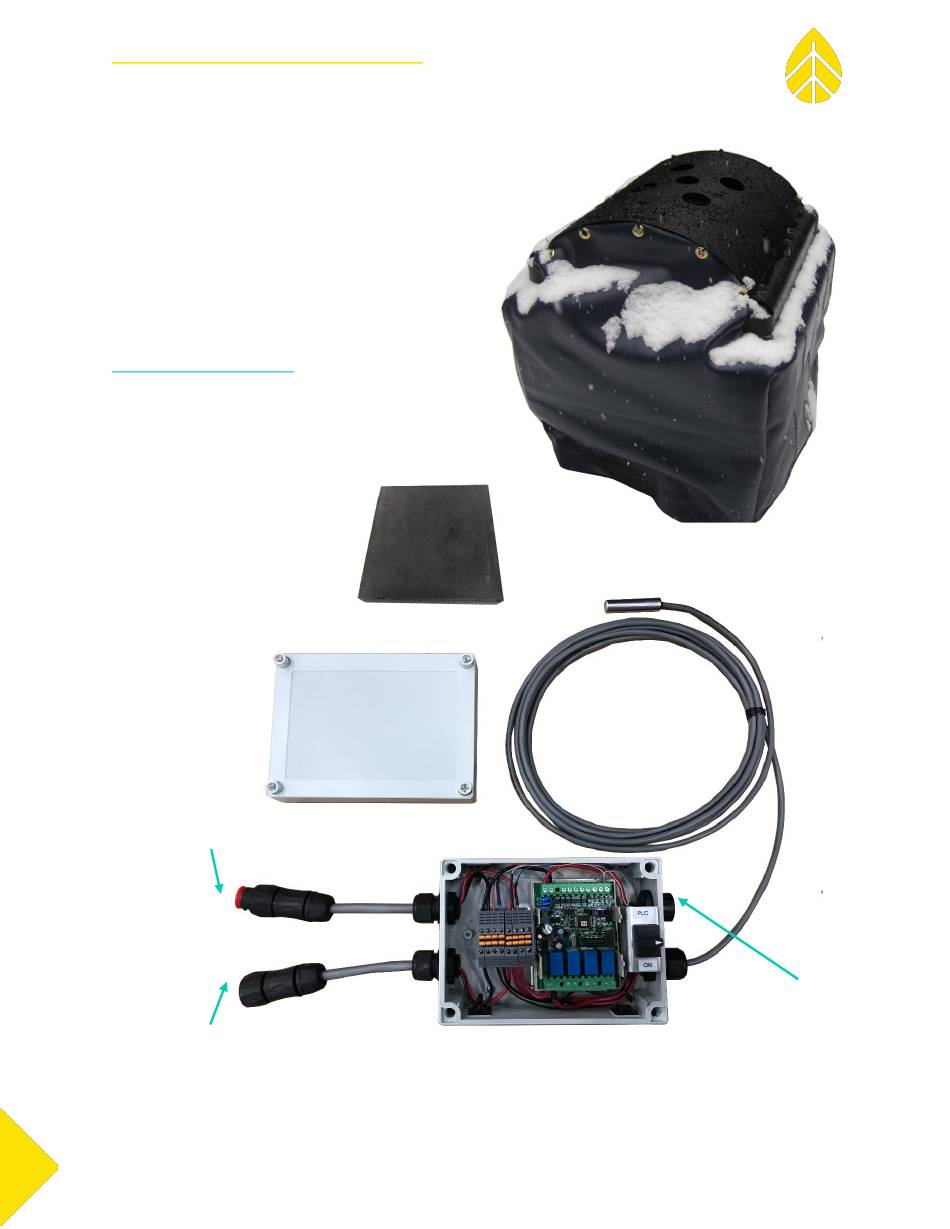

COMPONENTS
Tent assembly
Heater Controller Box
Temperature probe
IR Sensor
Foam inserts
24V DC from Power Source
24V DC to Windcube
Windcube_v2_Winter_Package_Instructions
Rev. 8.0
Foam
Insert
Heater
Controller Box
support@nrgsystems.com | Page 1
Temperature
Sensor
Heater Plate & IR Sensor
Connector for Wiper
7 March 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NRG Windcube v2
Summary of Contents for NRG Windcube v2
- Page 1 NRG INSTRUCTIONS Windcube v2 Winter Performance Kit | Assembly Instructions SUMMARY Below are instructions for installing the Winter Performance Kit with Windcube Profiler Lidars. To uninstall, follow the procedure in reverse order. Please contact NRG Technical Services if there are...
- Page 2 NRG INSTRUCTIONS Windcube v2 Winter Performance Kit | Assembly Instructions ASSEMBLY INSTRUCTIONS 1) Power off Windcube Profiler Lidar 2) Insert the foam inserts into door vents a. Open door vents (use fingers or flat screwdriver) b. Remove and retain filters c.
- Page 3 NRG INSTRUCTIONS Windcube v2 Winter Performance Kit | Assembly Instructions 4) Connect power to Controller box as shown above and place controller on the ground near the Windcube (it is OK for the controller box to get buried in snow):...
