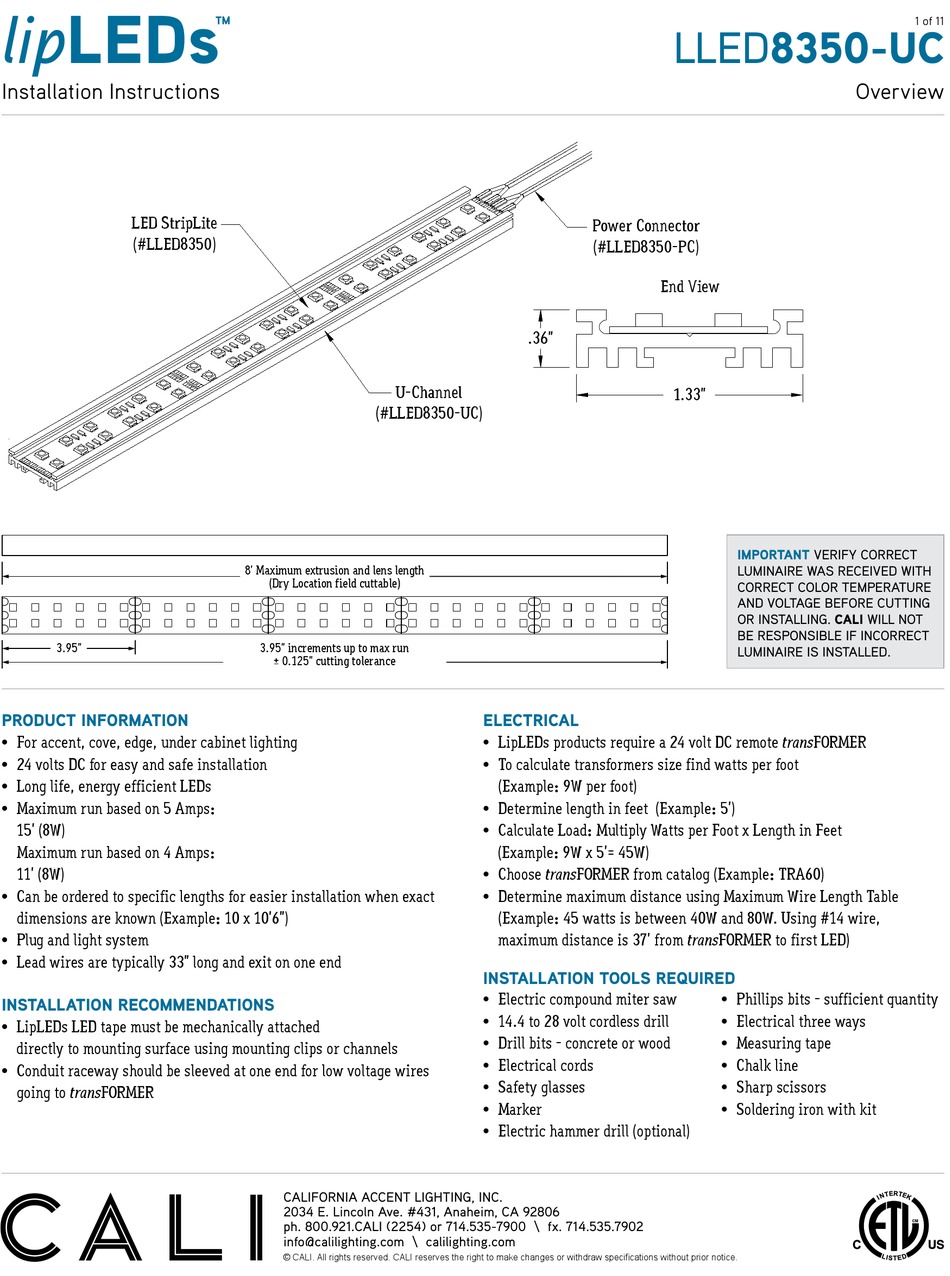

California Accent Lighting lipLEDs LLED8350-UC Installation Instructions Manual

lipLEDs
Installation Instructions
6.5"
3.9" or 6.5"
LED StripLite
(#LLED8350)
2"
6.5"
2"
3.9" or 6.5"
6"
2"
3.95"
PRODUCT INFORMATION
2"
• For accent, cove, edge, under cabinet lighting
2"
• 24 volts DC for easy and safe installation
• Long life, energy efficient LEDs
• Maximum run based on 5 Amps:
15' (8W)
1.06"
Maximum run based on 4 Amps:
6"
11' (8W)
.08"
• Can be ordered to specific lengths for easier installation when exact
dimensions are known (Example: 10 x 10'6")
• Plug and light system
3.95"
• Lead wires are typically 33" long and exit on one end
INSTALLATION RECOMMENDATIONS
• LipLEDs LED tape must be mechanically attached
2"
directly to mounting surface using mounting clips or channels
• Conduit raceway should be sleeved at one end for low voltage wires
going to transFORMER
™
6.5" increments up to max run
± 0.125" cutting tolerance
*See max run for more information
6.5" (2.5W) or 3.9" (5.5W) increments up to max run
± 0.125" cutting tolerance
*See max run for more information
8' Maximum extrusion and lens length
(Dry Location field cuttable)
2" increments up to max run
± 0.125" cutting tolerance
*See max run for more information
(Run lengths required)
U-Channel
(#LLED8350-UC)
6.5" increments up to max run
± 0.125" cutting tolerance
*See max run for more information
2" increments up to max run
± 0.125" cutting tolerance
*See max run for more information
6.5" (2.5W) or 3.9" (5.5W) increments up to max run
± 0.125" cutting tolerance
Specify Length (19.7"Assembly Increments)
*See max run for more information
(Add 2.5" to run for end cap and strain relief)
8' Maximum extrusion and lens length
6" increments up to max run
(Dry Location field cuttable)
*See max run for more information
2" increments up to max run
3.95" increments up to max run
± 0.125" cutting tolerance
± 0.125" cutting tolerance
*See max run for more information
*See max run for more information
(Run lengths required)
2" increments up to max run
± 0.125" cutting tolerance
2" increments up to max run
*See max run for more information
± 0.125" cutting tolerance
*See max run for more information
Specify Length (19.7"Assembly Increments)
(Add 2.5" to run for end cap and strain relief)
8' Maximum extrusion and lens length
6" increments up to max run
*See max run for more information
8' Maximum extrusion and lens length
3.95" increments up to max run
± 0.125" cutting tolerance
*See max run for more information
Lens and extrusion shipped in
8' sections (field cuttable)
2" increments up to max run
± 0.125" cutting tolerance
*See max run for more information
8' Maximum extrusion and lens length
CALIFORNIA ACCENT LIGHTING, INC.
2034 E. Lincoln Ave. #431, Anaheim, CA 92806
8' Maximum extrusion and lens length
ph. 800.921.CALI (2254) or 714.535-7900 \ fx. 714.535.7902
info@calilighting.com \ calilighting.com
© CALI. All rights reserved. CALI reserves the right to make changes or withdraw specifications without prior notice.
Power Connector
(#LLED8350-PC)
End View
.36"
ELECTRICAL
• LipLEDs products require a 24 volt DC remote transFORMER
• To calculate transformers size find watts per foot
(Example: 9W per foot)
• Determine length in feet (Example: 5')
• Calculate Load: Multiply Watts per Foot x Length in Feet
(Example: 9W x 5'= 45W)
• Choose transFORMER from catalog (Example: TRA60)
• Determine maximum distance using Maximum Wire Length Table
(Example: 45 watts is between 40W and 80W. Using #14 wire,
maximum distance is 37' from transFORMER to first LED)
INSTALLATION TOOLS REQUIRED
• Electric compound miter saw
• 14.4 to 28 volt cordless drill
• Drill bits - concrete or wood
• Electrical cords
• Safety glasses
• Marker
• Electric hammer drill (optional)
LLED8350-UC
Overview
1.33"
IMPORTANT VERIFY CORRECT
LUMINAIRE WAS RECEIVED WITH
CORRECT COLOR TEMPERATURE
AND VOLTAGE BEFORE CUTTING
OR INSTALLING. CALI WILL NOT
BE RESPONSIBLE IF INCORRECT
LUMINAIRE IS INSTALLED.
• Phillips bits - sufficient quantity
• Electrical three ways
• Measuring tape
• Chalk line
• Sharp scissors
• Soldering iron with kit
1 of 11
.78"
.75"
5.5W
.78"
.75"
5.5W
