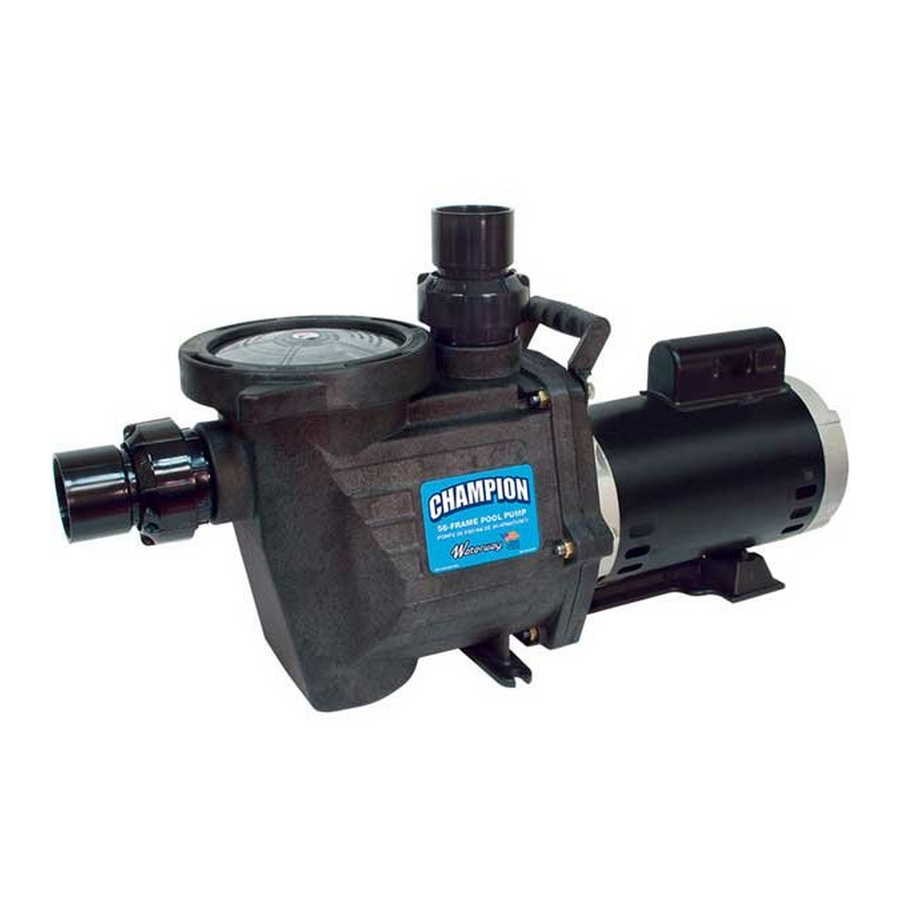

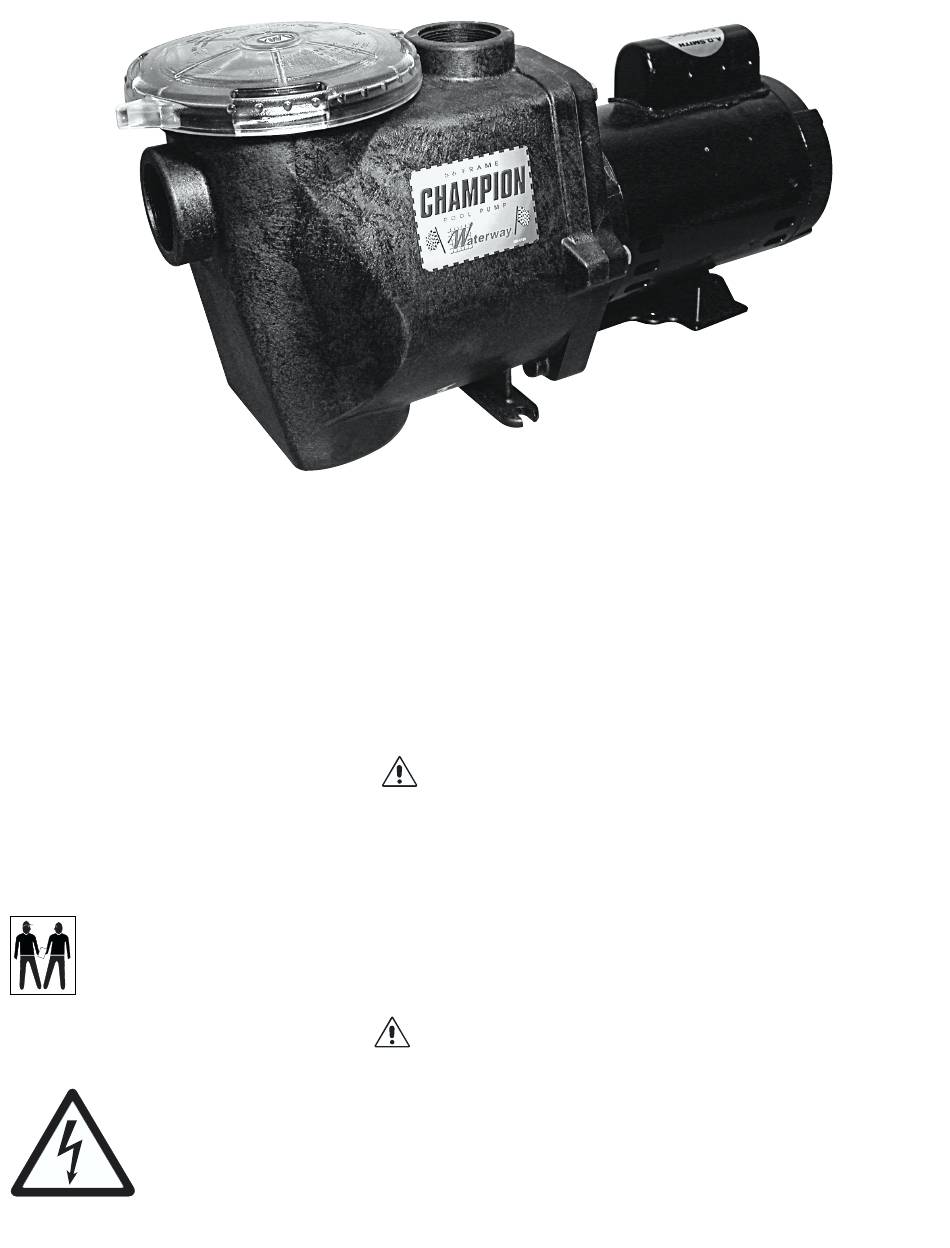

CHAMPION PUMP OWNER'S MANUAL
READ AND FOLLOW ALL INSTRUCTIONS — SAVE THESE INSTRUCTIONS
Before installing this product, read and follow all warning notices and instructions accompanying this pump. Failure to follow
safety warnings and instructions can result in severe injury, death, or property damage. Call (805) 981-0262 for additional
free copies of these instructions.
Attention Installer:
This manual contains important information about the installation, operation and safe use of this product. This infor-
mation should be given to the owner/operator of this equipment.
This pool pump must be installed by a licensed or certified electrician or a qualified pool serviceman in accor-
dance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will
create an electrical hazard which could result in death or damage to property.
Always disconnect power to the pool pump at the circuit breaker before servicing the pump. Failure to do so
could result in death or serious injury to serviceman, pool users or others due to electric shock.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:
Important Notice:
WARNING:
Risk of electrical shock or electrocution.
810-0152
