Summary of Contents for Techlogix TL-INCT-01

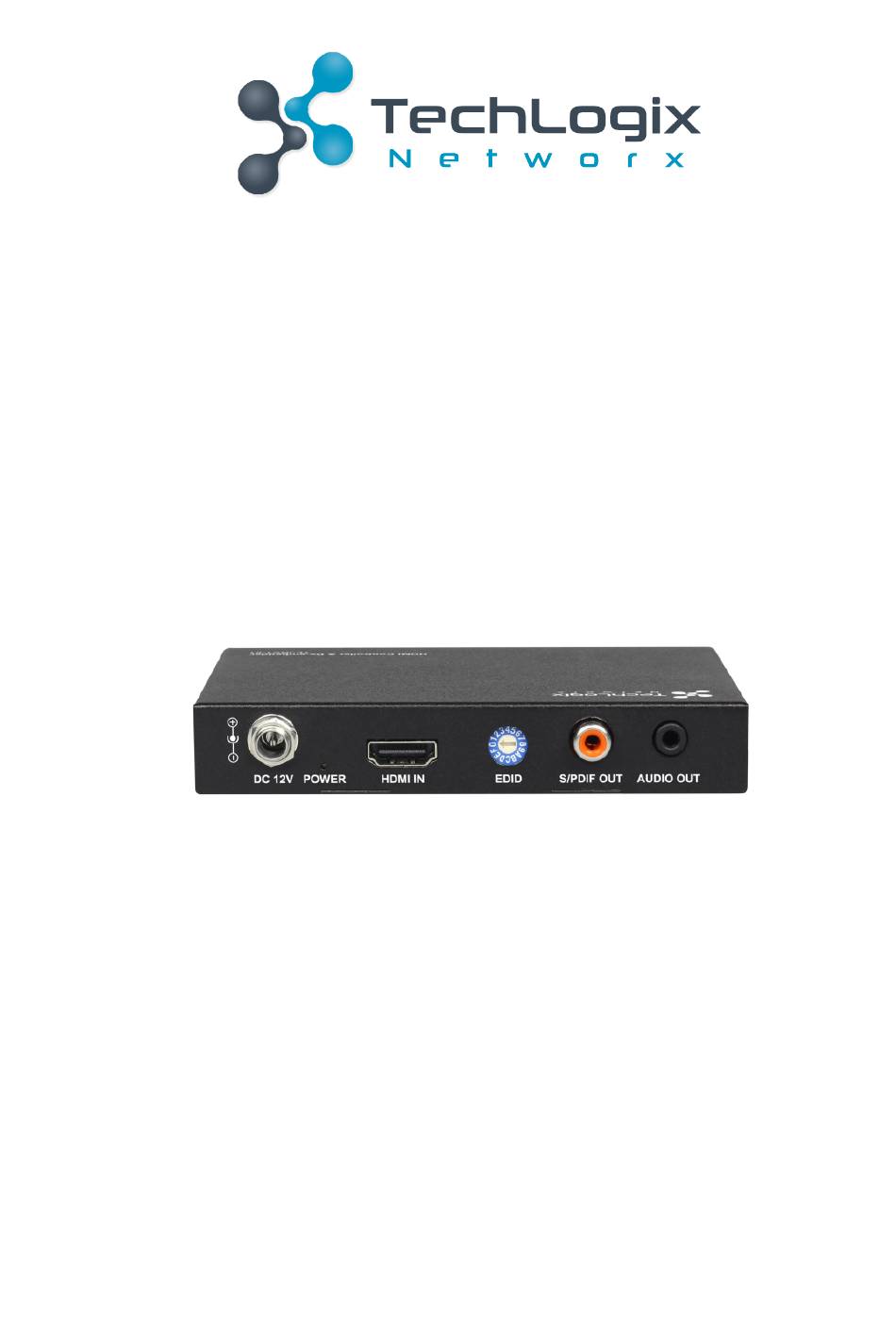

- Page 1 User Manual TL-INCT-01 HDMI In-line Controller All Rights Reserved Version: TL-INCT-01_160711...
-
Page 2: Fcc Statement
TL-INCT-01 User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, slight differences may be evident on the real product. This manual is only for operation instruction only, not for any maintenance usage. -
Page 3: Safety Precautions
TL-INCT-01 User Manual SAFETY PRECAUTIONS To insure the best experience from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... - Page 4 TL-INCT-01 User Manual 1. Introduction The TL-INCT-01 is a HDMI In-line Controller, with resolutions up to 4K@60Hz (chroma sub-sampling 4:4:4 8-bit only) and HDCP 2.2. Its digital or analog audio output allows audio to de-embed from HDMI input and send to an audio distribution system, such as an AVR or Zone Amplifier.
-
Page 5: Power Led
TL-INCT-01 User Manual 2. Appearance Front Panel Name Description 12V DC power input, threaded port for standard or DC 12V locking connection ON: The unit is powered on. POWER LED OFF: The unit is powered off. HDMI IN Connects to an HDMI source... -
Page 6: Edid Management
TL-INCT-01 User Manual 3. EDID Management Switch for EDID Management with 16 presets as follows: Position Description 0(default) Copy EDID from HDMI Out 3840x2160@60Hz 2CH 3840x2160@30Hz 2CH 1920x1080@60Hz 2CH 1280x720@60Hz 1920x1200@60Hz 2CH 1680x1050@60Hz 2CH 1600x1200@60Hz 2CH 1600x900@60Hz 1440x900@60Hz 1400x1050@60Hz 2CH... -
Page 7: Rs232 Control Tool
RS232 port configuration tool is a control tool running on PC for pre-loading RS232 commands for the TL-INCT-01 to control the sink device. Connect a PC to the TL-INCT-01 via an RS232 cable. Run the configuration tool to set the connection parameters correctly before sending the pre-loaded commands to the TL-INCT-01. -
Page 8: System Connection
TL-INCT-01 User Manual 5. System Connection The figure below illustrates a typical connection that can be utilized with TL-INCT-01: Using quality HDMI cables, connect an HDMI source (such as PC, Blu-ray, games console, satellite/cable TV, media server etc.) to HDMI IN of the TL-INCT-01. -
Page 9: Specification
Connect RELAY1 and RELAY2 to the projection screen for control the projection screen ON/OFF. Connect the included 12v power supply to the TL-INCT-01. Power on the devices. & System should be installed in a clean environment with proper temperature and humidity. - Page 10 TL-INCT-01 User Manual VESA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, Output Resolution Support 1920x1200@60Hz; SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz, 720P@50/60Hz, 576P@50Hz, 480P@60Hz Video Impedance 100 Ω General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F)
-
Page 11: Panel Drawing
TL-INCT-01 User Manual 7. Panel Drawing 8. Troubleshooting & Maintenance Problems Causes Solutions Color loss or blurry/ double Change for qualified HDMI Poor quality of HDMI cable image on HDMI display cable. No power Power up the unit Power led is off, operations Make sure power adapter is don’t work... -
Page 12: After Sales Service
TL-INCT-01 User Manual 9. After-sales Service If there appear some problems when running the device, please check and deal with the problems referenced in this user manual. 4) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
