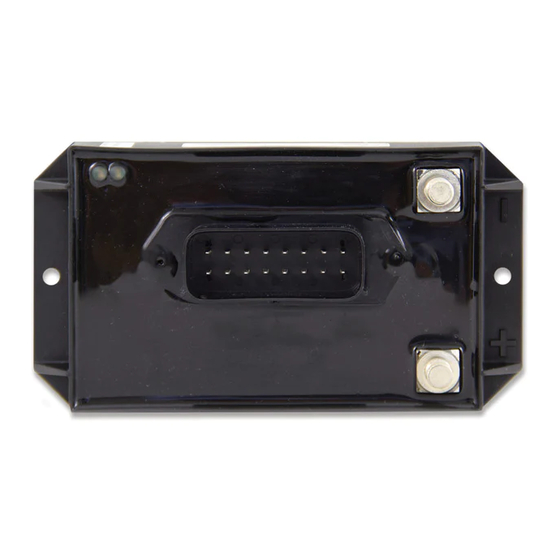

REMOTE NODE
PART NUMBER: ENGND04101
The Remote Node provides 10 outputs for connection to
vehicle devices (50 Amps max).
•(4) 10-amp solid state switchable outputs
•(6) 5-amp solid state switchable outputs.
The Remote Node also provides 4 inputs to control systems.
•Active High/Low selectable.
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the
1.800.338.7337 / www.soundoffsignal.com
1
ACTIVE LOW
OR HIGH
MOMENTARY
ACTIVE HIGH
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .

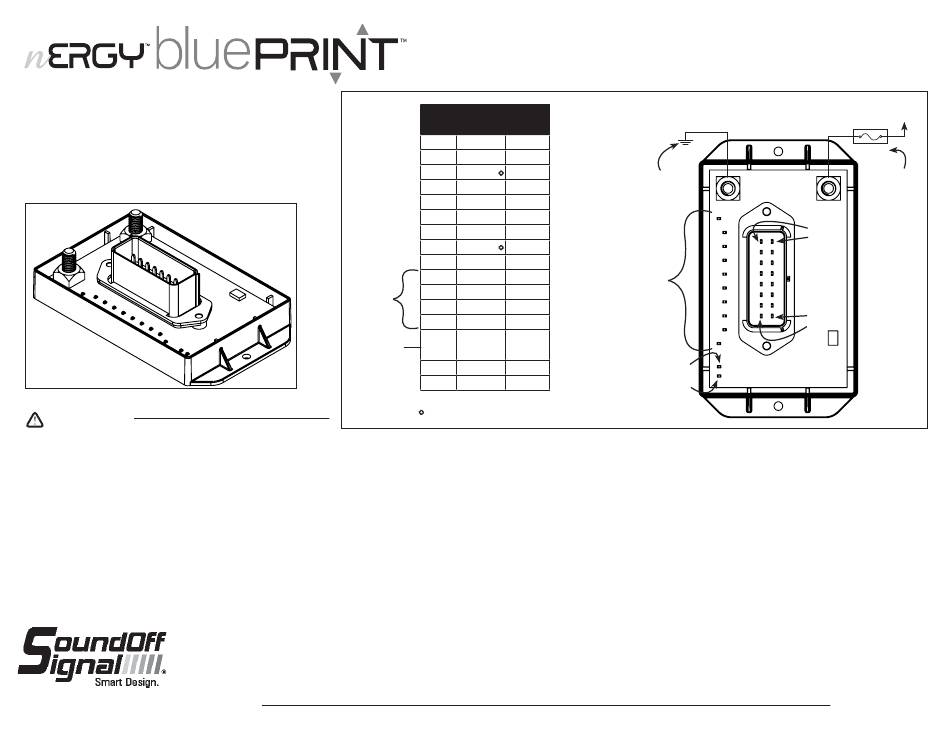

Wire Wire
Amp
Pin # Function
1 OUTPUT 9 10 Amp
2 OUTPUT 8 5 Amp
3 OUTPUT 7 10 Amp
DIRECT BATT GROUND
4 OUTPUT 6 5 Amp CONNECTION
5 OUTPUT 5 5 Amp
6 OUTPUT 4 10 Amp
7 OUTPUT 3 5 Amp
8 OUTPUT 2 10 Amp
9 OUTPUT 10 5 Amp
10 INPUT 1* OUTPUT INDICATOR LED'S
FOR OUTPUTS 1-10
11 INPUT 2
12 INPUT 3
13 INPUT 4
ADDRESS
14
SELECT
ADDRESS INDICATOR LED
15 DATA
16 OUTPUT 1 5 Amp
DIAGNOSTIC INDICATOR LED
*Input 1 can be used as general purpose input
or as a system ignition input.
Higher inrush current threshold - Xenon
See attached Install Template to aid in connections and programming
NOTICE:
-
+
(Ground)
(Power)
AUTOMOTIVE 50
AMP MAX FUSE
OR BREAKER
10
PIN 9
PIN 1
PIN 8
PIN 16
1
Please see next page for
Technical Specifications
EVCS_Remote Node_ENGND04101 1.15
V
BATT
