The package of 2Y-LINK MultiFunction Model 12 Channels Signal Processor –CI-12-ASP-DAASS contents : Product contents One 12 Channels Signal Processor CI-12-ASP-DAASS Unit with built-in power supply One power cord (AU, BS, CN, EU or US) CI-12-ASP-DAASS Signal Processor User Manual Note : This package is only one part of CCTV installation package, must work with the Associated Equipment for complete CCTV System. -
Page 3: Table Of Contents
CI-12-ASP-DAASS Contents Descriptions Page No. The Package of System Content Product Overview 1. Signal Processor CI-12-ASP-DAASS 2. Power Cord Associated Equipment needed 1. Mixer PF300A12DAASS (for channel 12) 2. Mixer PF300A12DASS (for channel 1 –11) 3. Distribution Board A. Ring Connection CC-2RJ B. -
Page 4: Product Overview

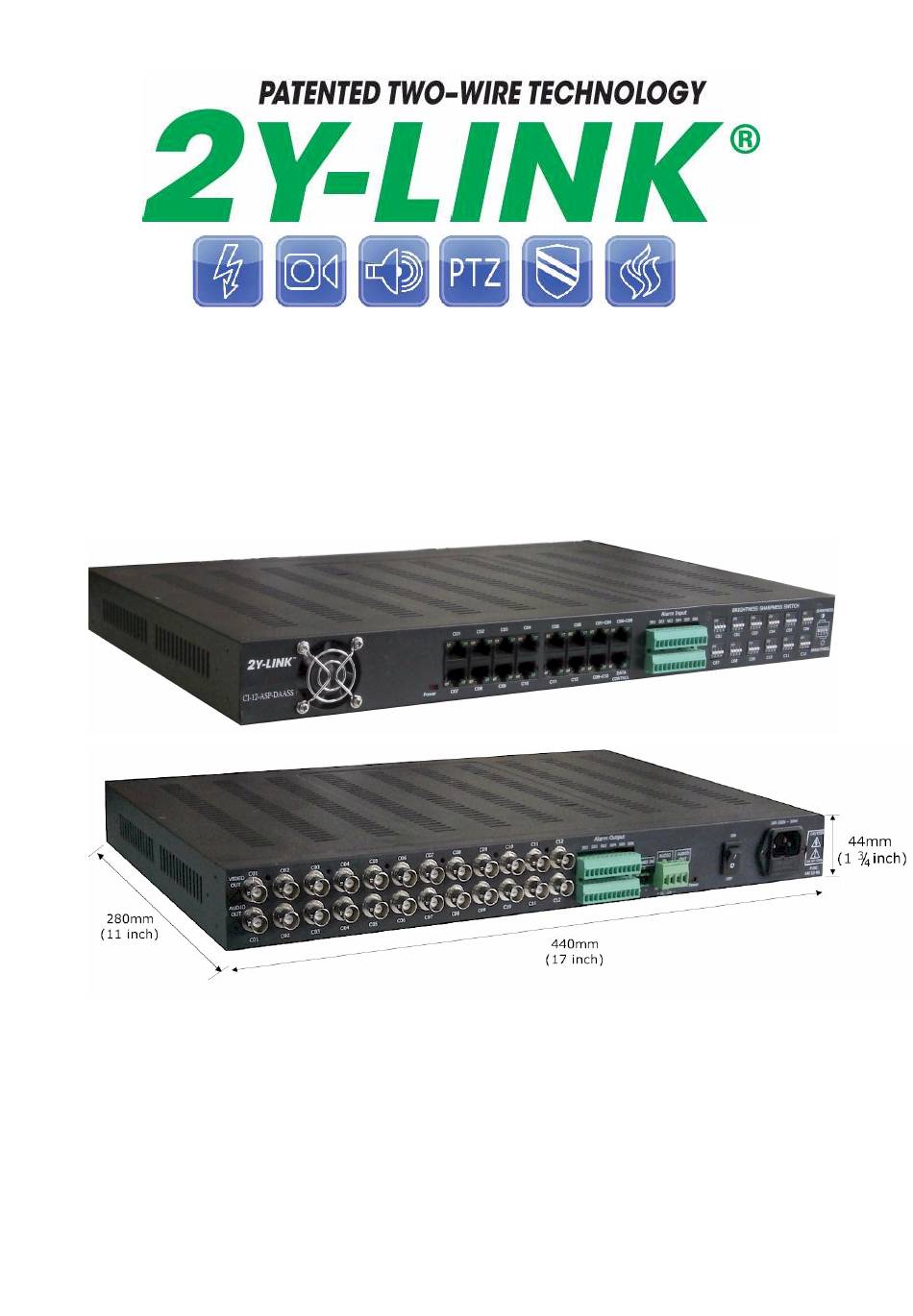

Signals. In this case, the suitable Mixer should be PF300A12DASS. The channel 12 is able to transmit POWER, VIDEO, TWO WAY AUDIO, CONTROL DATA for moving the camera and TWO WAY ALARM signals. The Mixer should use PF300A12DAASS CI-12-ASP-DAASS FRONT VIEW 44mm(1-3/4in) CI-12-ASP-DAASS... -
Page 5: Associated Equipment Needed
Associated Equipment needed 1).Mixer PF300A12DAASS (for channel 12) The Mixer should be installed near the Camera at the surveillance site 70mm Thickness (2-3/4in) 35mm(1-3/8in) 96mm(3-3/4in) PF300A12DAASS 2).Mixer PF300A12DASS (for channel 1 –11) The Mixer should be installed near the Camera at the surveillance site 70mm Thickness (2-3/4in) -
Page 6: Distribution Board
Associated Equipment needed 3). Distribution Board for ONE Cat5 cable support 4 cameras A. Ring Connection CC-2RJ Star Connection DB-4RJ 4). Power Stabilizer PS-10KU For better performance of the picture quality , it can be used mainly for maintain stable picture when moving the camera by the control data of RS-485 Cat.5 Cable Application... -
Page 7: Specification - Ci-12-Asp-Pvdaass
Specification- CI-12-ASP-DAASS Specifications for Signal Processor CI-12-ASP-DAASS NO. of Channel 12 Channels Each Channel Video Output 1.0 Vp-p 75 ohm Each Channel Audio Output 2.0Vp-p 600 ohm Each Channel Alarm Output DC 12V 50mA Alarm Input Normal Open 2Y-LINK Microphone... -
Page 8: Typical Wiring
Typical Wiring Wiring connections for Channel 1 to Channel 11 with ONE Cat5. cable for one camera (HIGH POWER and LONG Transmission) Mixer PF300A12DASS Surveillance Site Camera power distance table Camera power 100~1200 mA 1200~1500mA 1500~2000mA (12V DC) (1.2 ~ 14.4 W) (14.4 ~ 18 W) (18 ~ 24W) ≤500m... - Page 9 Typical Wiring AC Power In Signal Processor CI-12-ASP-DAASS ｝ ｝ C01~C11 Control Room...
-
Page 10: With One Cat5. Cable For One Camera
Typical Wiring Wiring connections for Channel 12 with ONE Cat5. cable for one camera (HIGH POWER and LONG Transmission) Mixer PF300A12DAASS Surveillance Site Camera power distance table Camera power 100~1000 mA 1000~1300mA. 1300~1600mA 1600~2000mA (12V DC) (1.2 ~ 12 W) (12 ~ 15.6 W) (15.6 ~ 19.2W) (19.2 ~24W) - Page 11 Typical Wiring AC Power In Signal Processor CI-12-ASP-DAASS ｝ ｝ Control Room...
-
Page 12: Wiring Connections For Channel
Typical Wiring Wiring connections of one CAT.5 for four cameras (Star method） ） ） ） Power stabilizer DB-4RJ Power(To 500mA Terminal) Video Data PTZ Camera ( ≤ 8W) Power stabilizer Camera ( ≤ 6W) Camera ( ≤ 6W) Mixers in star connection Surveillance Site... - Page 13 Typical Wiring AC Power In Signal Processor CI-12-ASP-DAASS ｝ ｝ C01~C04 Control Room Camera power distance table Camera power 100~250 mA 250~400mA 400~500mA (12V DC) (1.2 ~ 3 W ) (3 ~ 4.8 W) (4.8 ~ 6 W) ≤500m ≤350m ≤150m...
-
Page 14: Wiring Connections Of One Cat.5 For Four Cameras (Ring Method)
Typical Wiring Wiring connections of one CAT.5 for four cameras （ （ （ （ Ring method） ） ） ） Power(To 500mA Terminal) Power(To 500mA Terminal) Power(To 500mA Terminal) Power(To 500mA Terminal) Video Video Video PTZ Camera PTZ Camera PTZ Camera ( ≤... -
Page 15: Typical Wiring
Typical Wiring AC Power In Signal Processor CI-12-ASP-DAASS ｝ ｝ C01~C04 Control Room Camera power distance table Camera power 100~250 mA 250~400mA 400~500mA (12V DC) ( 1.2 ~ 3 W) (3 ~4.8W) (4.8 ~6W) ≤500m ≤350m ≤150m Distance ≤1640ft ≤1150ft... -
Page 16: How To Mount The Signal Processor To 19" Rack
How to mount the Signal Processor to 19” rack RM-16 ( a pair) RM-16 ( a pair) -
Page 17: Detail Overview
Detail Overview Signal Processor CI-12-ASP-DAASS Front View Item Icon Description Usage or Purpose For cooling the Power supply the signal processor. CI-12-ASP-DAASS To indicate that the AC power switch is on and the power , Power LED Indicator fuse and AC power cord are in proper working order. - Page 18 Detail Overview Signal Processor CI-12-ASP-DAASS BACK View Item Description Usage or Purpose Icon Video & Audio Outlet For connecting to DVR or (BNC plug) CCTV Monitor To indicate the status of Alarm Output alarm output at Mixer side Terminals and 12V/20mA diver...
-
Page 19: Mixer Pf300A12Daass
Detail Overview Mixer PF300A12DAASS For Transmission of Power, Video, Control Data, Two way Audio &Two way Alarm signals） Item Icon Description Usage or Purpose Video In For connecting to Camera (BNC plug) Connecting to terminals of RS485 PTZ Camera for controlling (I/O Terminal) the movement of PTZ Camera For connecting to 8 Ohm... - Page 20 Detail Overview Mixer PF300A12DAASS Icon Item Description Usage or Purpose DC Power to Camera Connecting to Camera rating Terminals DC12V up to 2A To indicate that the AC/DC Power LED Indicator adaptor is in proper working order Alarm output 12V/50mA Alarm Output showing a triggering signal Terminals...
-
Page 21: Mixer Pf300A12Dass
Detail Overview Mixer PF300A12DASS (For Transmission of Power, Video, Control Data, One way Audio &Two way Alarm signals） Icon Item Description Usage or Purpose Video In For connecting to Camera (BNC plug) Connecting to terminals of RS485 PTZ Camera for controlling (I/O Terminal) the movement of PTZ Camera 2Y-LINK Mixer Microphone... -
Page 22: Detail Overview
Detail Overview Mixer PF300A12DASS Icon Item Description Usage or Purpose DC Power to Camera Connecting to Camera rating Terminals DC12V up to 2A To indicate that the AC/DC Power LED Indicator adaptor is in proper working order Connecting Stabilizer PS-10KU Socket PS-10KU for Power Stabilization Alarm output 12V/50mA Alarm Output... -
Page 23: Trouble Shooting
Trouble Shooting Problems Possible Causes Corrective Actions 1 No video signal; The power rating of the To follow “camera power No colour picture; camera and /or the distance table” in Typical Wiring Pictures in irregular transmission distance do not section for the system setup. shape. -
Page 24: Limited Warranty
