2010-01-26
USERS MANUAL.
SAFETY.
This Power Supply conforms to the safety standard EN60950
The unit must not be operated without safety earth.
Service must be performed by qualified personnel only.
Maximum operating temerature for the unit is +35ºC for maximum output power.
UNINTERRUPTABLE POWER SUPPLY(UPS), TYE 975
Type 975 UPS is an industrial grade charger/power supply unit for indoor use only.
This series is intended used as Power Supply for security systems requiring UPS
(12/24VDC240W).
This unit is equipped with:
Linear Regulated Charger Unit(240W).
-
-
Battery Protection Unit to avoid battery damage
Alarm Relay to indicate fault situations
-
-
Temperature regulated Fan
Automatic Battery test function(one test every 24 hour)
-
Manual Push Button for Battery test
-
Max. continuous load should be lower than 75% of max.load!
373,00 mm
CHARGER 975
376,00 mm
CONNECTION/FUSES 975
SPACE FOR BATTERIES
FAN OUT
139,00 mm
TYPE 975
Article Number:
Document Date:
Current Revision No.:
Current Revision Date:

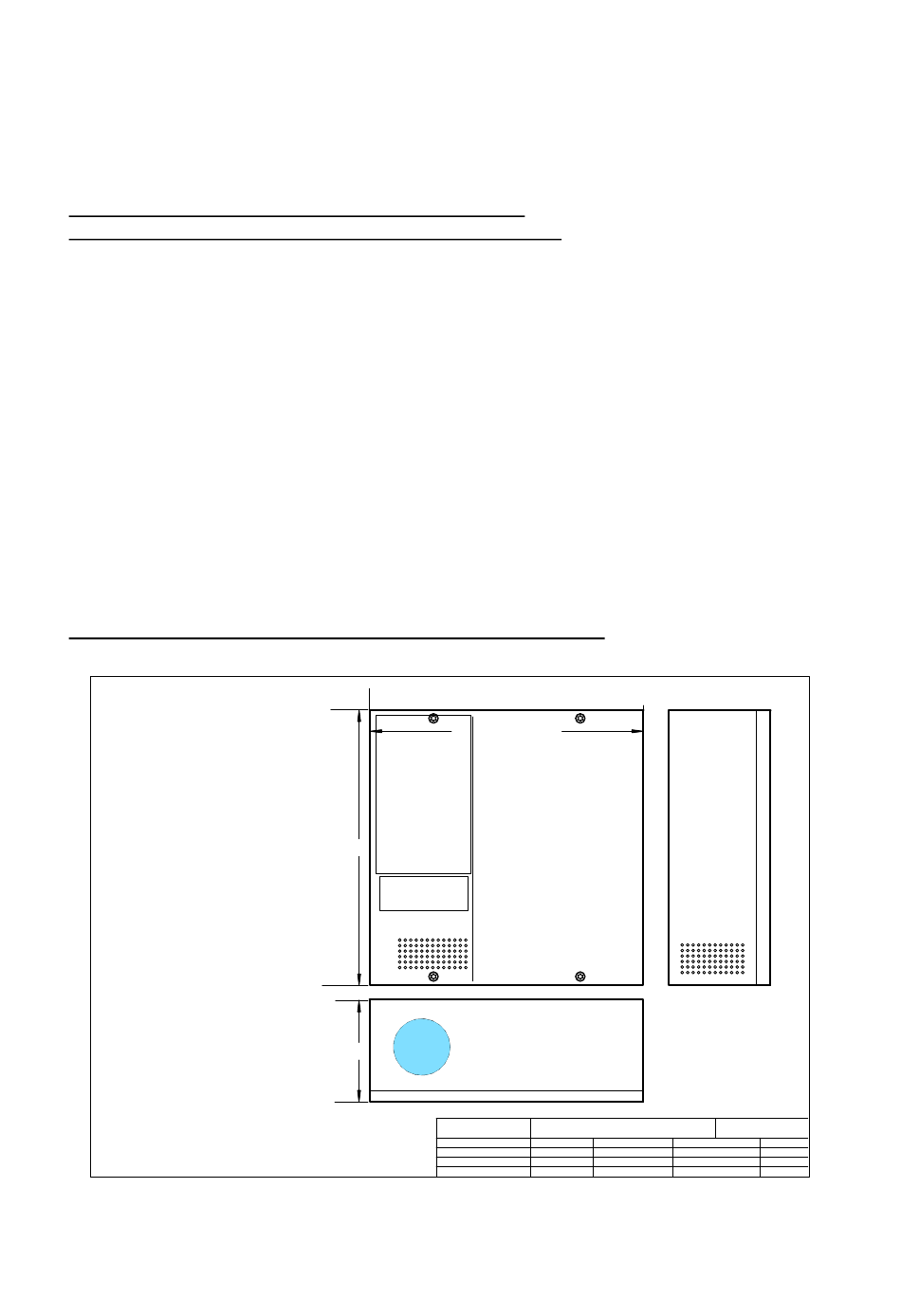

Over all dimensions
975327J0A
2005-03-08
MULTIGUARD
MULTIGUARD
jes
Approved:
Page Number:
1
1
Pages in Tot.:
Advertisement
Table of Contents
Summary of Contents for MULTIGUARD 975
- Page 1 Maximum operating temerature for the unit is +35ºC for maximum output power. UNINTERRUPTABLE POWER SUPPLY(UPS), TYE 975 Type 975 UPS is an industrial grade charger/power supply unit for indoor use only. This series is intended used as Power Supply for security systems requiring UPS (12/24VDC240W).
- Page 2 Standard: EN 60950, Class 1 Marking: CE GENERAL INSTRUCTIONS. Type 975 is for indoor use only and has to be installed in a rooms with good ventilation and temperature between -5 to +35ºC Charging batteries may under certain adverse conditions, generate harmful or explosive gases.
- Page 3 2010-01-26 REL1 VOLTAGE ADJ. CONTROLLER F1 F2 FAN ADJ. LED1 LED2 REL2 LED3 Test NC C NO ALARMRELAY MAIN CONNECTION TEST FUNCTION will be activated when pushing PB1 or when connecting +24V(12V) to TEST. MULTIGUARD...
