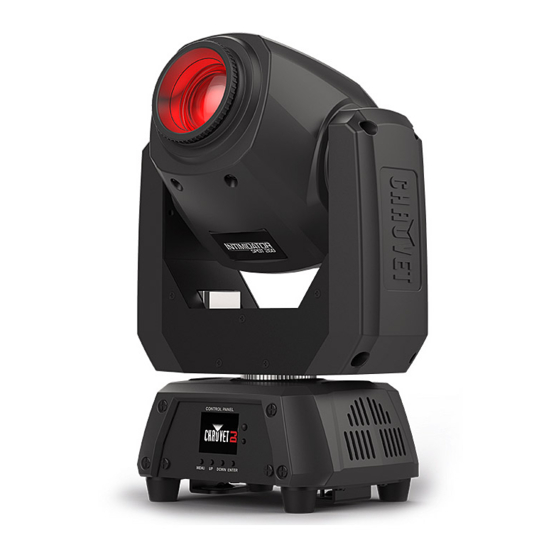

Summary of Contents for Intimidator SPOT 260

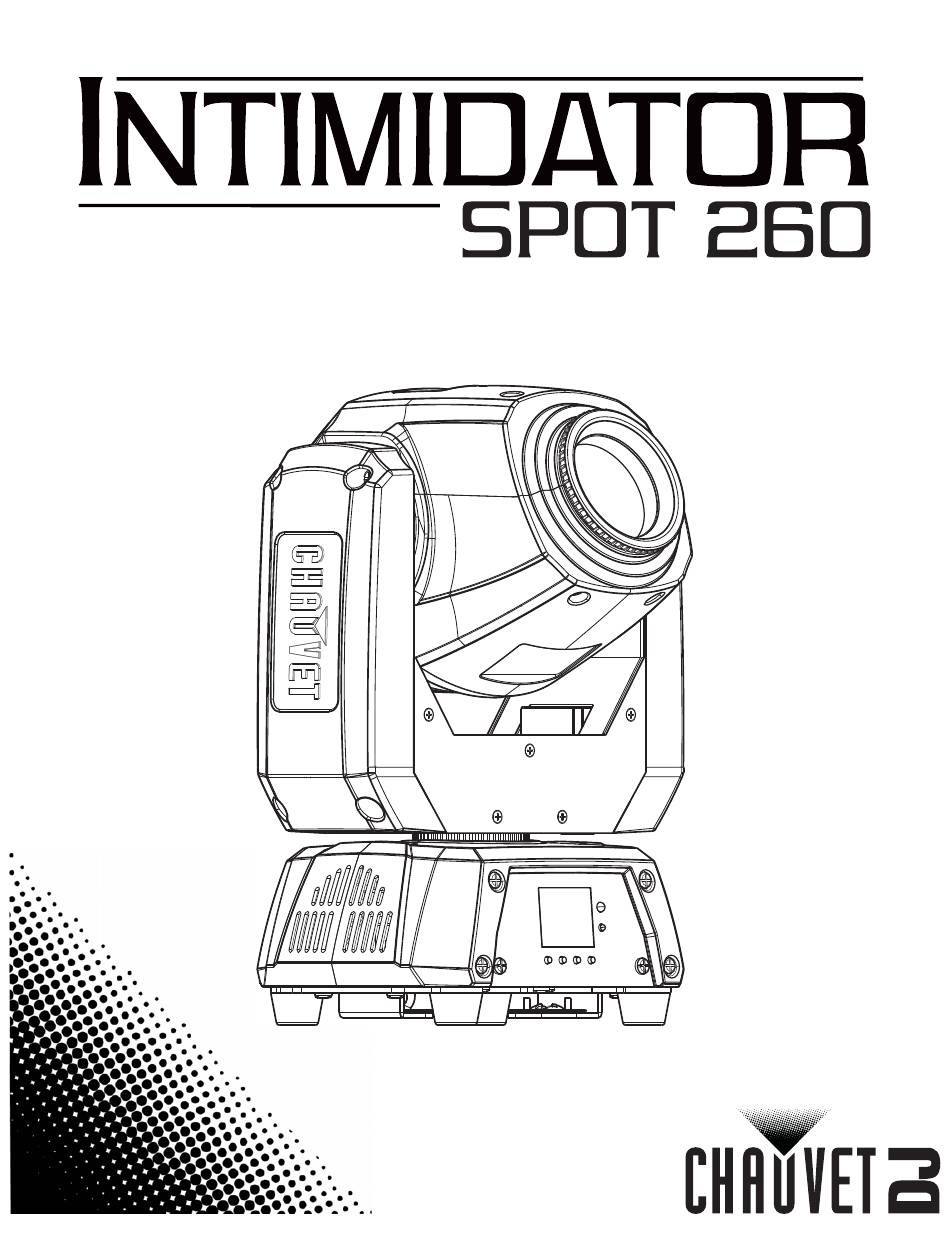

- Page 1 User Manual...
-
Page 2: Table Of Contents
System Information ......................13 IRC-6 Infrared Remote Control ................IRC-6 Operation ......................14 Master/Slave Mode ....................Zero Adjust Mode..................... Changing Gobos ...................... 5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................Intimidator Spot 260 User Manual Rev. 2... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Intimidator Spot 260 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 20 Intimidator Spot 260 User Manual Rev. 2... -
Page 5: Introduction
Head Yoke IR Sensor Indicator Safety Menu Power Power Fuse Display Loop Buttons Holder In/Out Product Dimensions 9.1 in 6.4 in 163 mm 232 mm 13.8 in 351 mm Intimidator Spot 260 User Manual Rev. 2 Page 3 of 20... -
Page 6: Setup
3. Setup AC Power The Intimidator Spot 260 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 260 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 8: Operation
Totem mode, Base Down Sensitivity 001–100 Sets the sound sensitivity Indicator Enables/Disables LED indicator Flash if DMX Enables/Disables Flash if DMX Reset Resets the product Factory Set Loads factory defaults Page 6 of 20 Intimidator Spot 260 User Manual Rev. 2... -
Page 9: Configuration (Dmx)
Temperature _ _ _ Displays the product temperature in °C Configuration (DMX) The Intimidator Spot 260 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 10: 14Ch
120 231 Reverse gobo rotation, slow to fast 232 255 Gobo bounce, short to long 000 015 No function Prism 016 255 3-facet prism Focus 000 255 Focus, big to small Page 8 of 20 Intimidator Spot 260 User Manual Rev. 2... - Page 11 184 199 Sound-active movement macro 4 200 215 Sound-active movement macro 5 216 231 Sound-active movement macro 6 232 247 Sound-active movement macro 7 248 255 Sound-active movement macro 8 Intimidator Spot 260 User Manual Rev. 2 Page 9 of 20...
-
Page 12: 08Ch
120 231 Reverse gobo rotation, slow to fast 232 255 Gobo bounce, short to long 000 015 No function Prism 016 255 3-facet prism Focus 000 255 Focus, big to small Page 10 of 20 Intimidator Spot 260 User Manual Rev. 2... -
Page 13: Configuration (Standalone)
4. Use <UP> or <DOWN> to select Sound. 5. Press <ENTER>. Sound Sensitivity To set the sound sensitivity on the Intimidator Spot 260, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>. -
Page 14: Configuration (Settings)
6. Use <UP> or <DOWN> to select from 540 (540°), 360 (360°), or 180 (180°). 7. Press <ENTER>. Tilt Angle To set the tilt angle range on the Intimidator Spot 260, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. -
Page 15: Indicator
4. Use <UP> or <DOWN> to select Reset. 5. Press <ENTER>. Factory Reset To restore the Intimidator Spot 260 to factory default settings, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>. -
Page 16: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The Intimidator Spot 260 is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Spot 260 to IR mode, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Run Mode. -
Page 17: Master/Slave Mode
The Master/Slave mode allows a single Intimidator Spot 260 product (the “master”) to control the actions of one or more Intimidator Spot 260 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 18: Changing Gobos
NOTE: If the gobo wheel is not accessible, the wrong cover was removed. Replace the cover immediately and remove the cover on the opposite side of the Intimidator Spot 260. 4. Rotate the gobo wheel until the gobo that needs replacing is accessible. -
Page 19: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because it they could be damaged. Intimidator Spot 260 User Manual Rev. 2 Page 17 of 20... -
Page 20: Technical Specifications
Cooling System 104 °F (40 °C) Fan-assisted convection I/O Connector Channel Range 3-pin XLR 8 or 14 Ordering Product Name Item Code UPC Number Intimidator Spot 260 08011467 781462218157 Page 18 of 20 Intimidator Spot 260 User Manual Rev. 2... -
Page 21: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Intimidator Spot 260 User Manual Rev. 2 Page 19 of 20... -
Page 22: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Page 20 of 20 Intimidator Spot 260 User Manual Rev. 2...
