Getting Started with the USRP B200mini/B200mini-i/B205mini-i

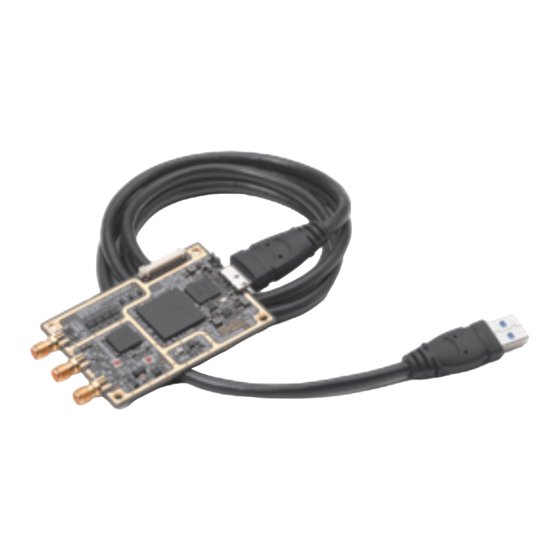

Kit Contents:
USRP
B200mini/B200mini-i/B205mini-i SDR Board
USB 3.0 Cable
You Will Need:
A host computer with an available USB 2.0 or 3.0 port
Verify the Contents of Your Kit
Make sure that your kit contains all the items listed above. If any items are missing, please contact your sales
agent or Ettus Research Technical support immediately.
Install and Setup the Software Tools on Your Host Computer
In order to use your USRP B200mini/B200mini-i/B205mini-i, you must have the software tools correctly installed
and configured on your host computer. A step-by-step guide for doing this is available at "Getting Started", on
the USRP B200mini/B200mini-i/B205mini-i product page, or on the Ettus Research Knowledge Base.
If you have a USB stick with the LiveUSB SDR Environment installed on it, then you may boot your host computer
from that. The LiveUSB SDR Environment does not require anything to be installed on your host computer,
and contains a Linux-based environment with the UHD software and the GNU Radio framework already installed.
More information about the LiveUSB SDR environment is available at the LiveUSB SDR Environment Product
Page on the Ettus Research Knowledge Base.
Connect the USRP B200mini/B200mini-i/B205mini-i to the Host Computer
The included USB 3.0 cable provides power and data connectivity for the USRP B200mini/B200mini-i/B205mini-
i. The host-side of the cable must be plugged into either a USB 2.0 or 3.0 port. Note that the USB 2.0 link
provides less bandwidth than the USB 3.0 link. More information about USB bandwidth constraints and power
considerations is available on the USRP B200mini/B200mini-i/B205mini-i Product Page on the Ettus Research
Knowledge Base.
c 2015 Ettus Research - A National Instruments Company. All Rights Reserved.
Ettus Research
4600 Patrick Henry Drive
Santa Clara, CA 95054 USA
P: +1-408-610-6399 F: +1-866-807-9801
http://www.ettus.com/
Rev 1 - October 2015
Page 1 of ??
Advertisement
Table of Contents
Summary of Contents for Ettus Research USRP B200mini
- Page 1 Install and Setup the Software Tools on Your Host Computer In order to use your USRP B200mini/B200mini-i/B205mini-i, you must have the software tools correctly installed and configured on your host computer. A step-by-step guide for doing this is available at “Getting Started”, on the USRP B200mini/B200mini-i/B205mini-i product page, or on the Ettus Research Knowledge Base.
- Page 2 Once the software tools are installed on the host computer, or using the LiveUSB SDR Environment, verify the correct operation of the USRP by running the various utility programs on the host computer. More information is available at “Getting Started”, on the USRP B200mini/B200mini-i/B205mini-i Product Page on the Ettus Research Knowledge Base.
- Page 3 Terms and Conditions of Sale Terms and conditions of sale can be accessed online at the following link: http://www.ettus.com/legal/terms-and-conditions-of-sale Rev 1 - October 2015 c 2015 Ettus Research - A National Instruments Company. All Rights Reserved. Page 3 of ??
