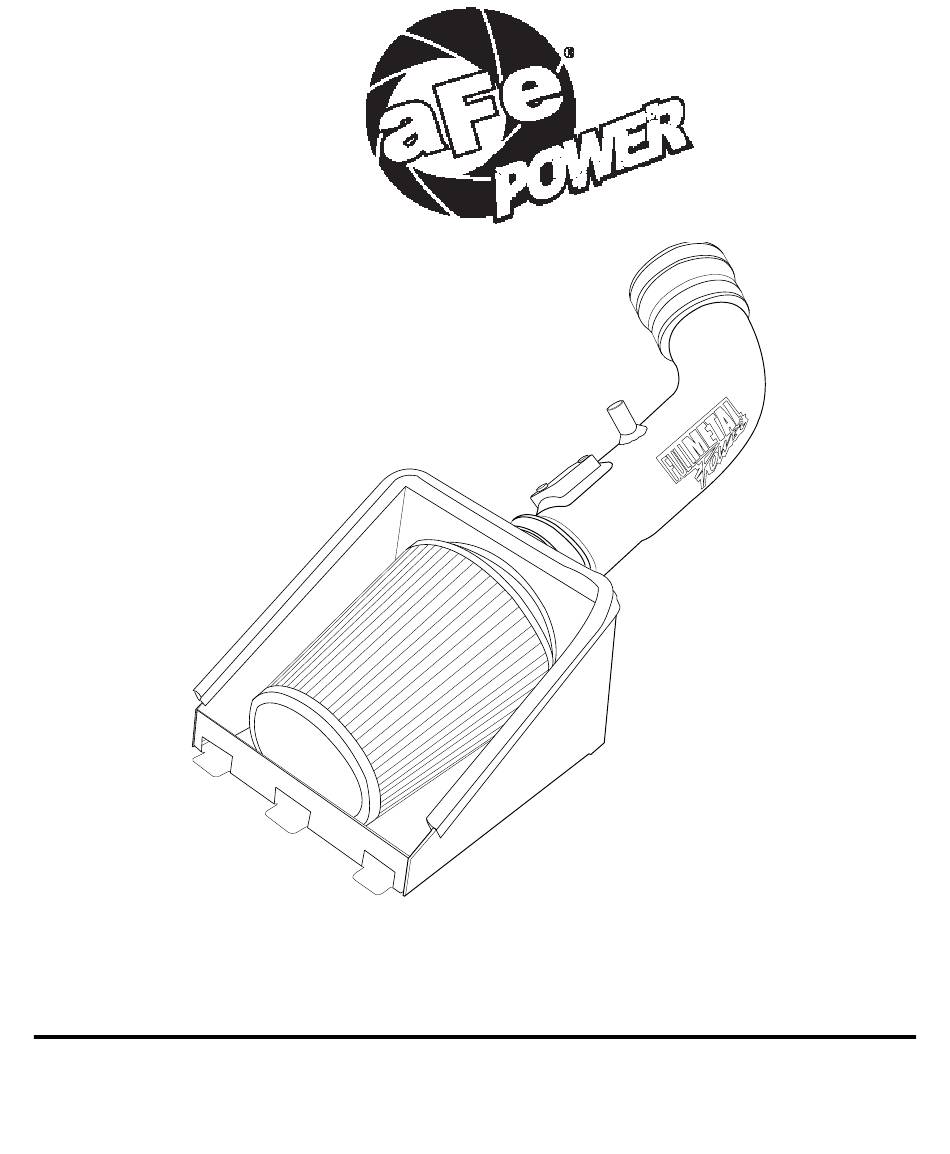

- Page 1 FLOW engineering Instruction Manual P/N: F2-03013 Make: FORD Model: RANGER Year: 2004-2011 Engine: V6-4.0L...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for steps 1-4 Step 1: Remove the throttle body cover using a 6mm nut driver. Step 2: Unclip the PCV vent tube from the valve cover. Step 3: Disconnect the Mass Air Flow (MAF) sensor from the intake by pulling the red safety clip then pull to disconnect.
- Page 5 INSTALL Figure B Refer to Figure B for step 5 Step 5: Unclip the tabs from the OE air box then lift and remove the air box and intake tube as one. Page 5...
- Page 6 INSTALL Figure C Refer to Figure C for steps 6-9 Step 6: Pre-assemble the aFe housing. Install the filter adaptor using the hardware provided. Step 7: Pre-assemble the reduction coupler using an 8mm nut driver and the supplied clamps. Leave loose.
- Page 7 INSTALL Figure D Refer to Figure D for steps 10-11 Step 10: Pre-assemble the aFe Full Metal power intake. Remove the MAF sensor from the OE air box using the supplied T-20 bit and reinstall in the aFe intake using the hardware provided. Use a flat head screw driver to tighten.
- Page 8 INSTALL Figure E Refer to Figure E for steps 12-13 Step 12: Install the pre-assembled aFe housing on top of the lower portion of the OE air box then use the OE tabs to hold the housing in place. Step 13: Install the coupling on the throttle body. Then tighten the throttle body side with an 8mm nut driver.
- Page 9 INSTALL Figure F Refer to Figure F for steps 14-15 Step 14: Install the pre-assembled aFe intake tube on the throttle body side first then to the housing. Align and adjust as need then tighten down with an 8mm nut driver. Step 15: Connect the PCV vent hose to the valve cover vent, tighten with the provided mini clamp.
- Page 10 INSTALL Figure E Refer to Figure E for steps 16-17 Step 16: Reconnect the MAF sensor and secure. Press in the red clip to secure plug and re-install the throttle body cover. Step 17: Make sure all clamps and hardware is tightened and secure. Make sure the MAF sensor harness does not come in contact with any moving parts.
- Page 11 Pro DRY S Restore Kit P/N: 21-45507 P/N: 24-45507 P/N: 90-59999 P/N: 28-10083 Black Blue Aerosol Restore Kit Blue Squeeze Restore Kit aFe Power Hat aFe Key Chain P/N: 90-50001 P/N: 90-50501 P/N: 40-10114 S/M P/N: 40-10103 P/N: 40-10115 L/XL...
-
Page 12: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •...
