BEA 10BOX45RSM User Manual

We open up New Horizons
PRODUCT
BEA's line of pushplate hardware is expanded by its line of surface and flush mount pushplate boxes. These
DESCRIPTION
boxes are made of durable ABS plastic and are made to securely mount a pushplate and a variety of
optional transmitters to activate an automatic door. Many of the boxes have an optional weather ring to give
even more weather protection to the switch. They are also designed to attractively recess the pushplate in
the housing to and to minimize vandalism from prying up the pushplate.

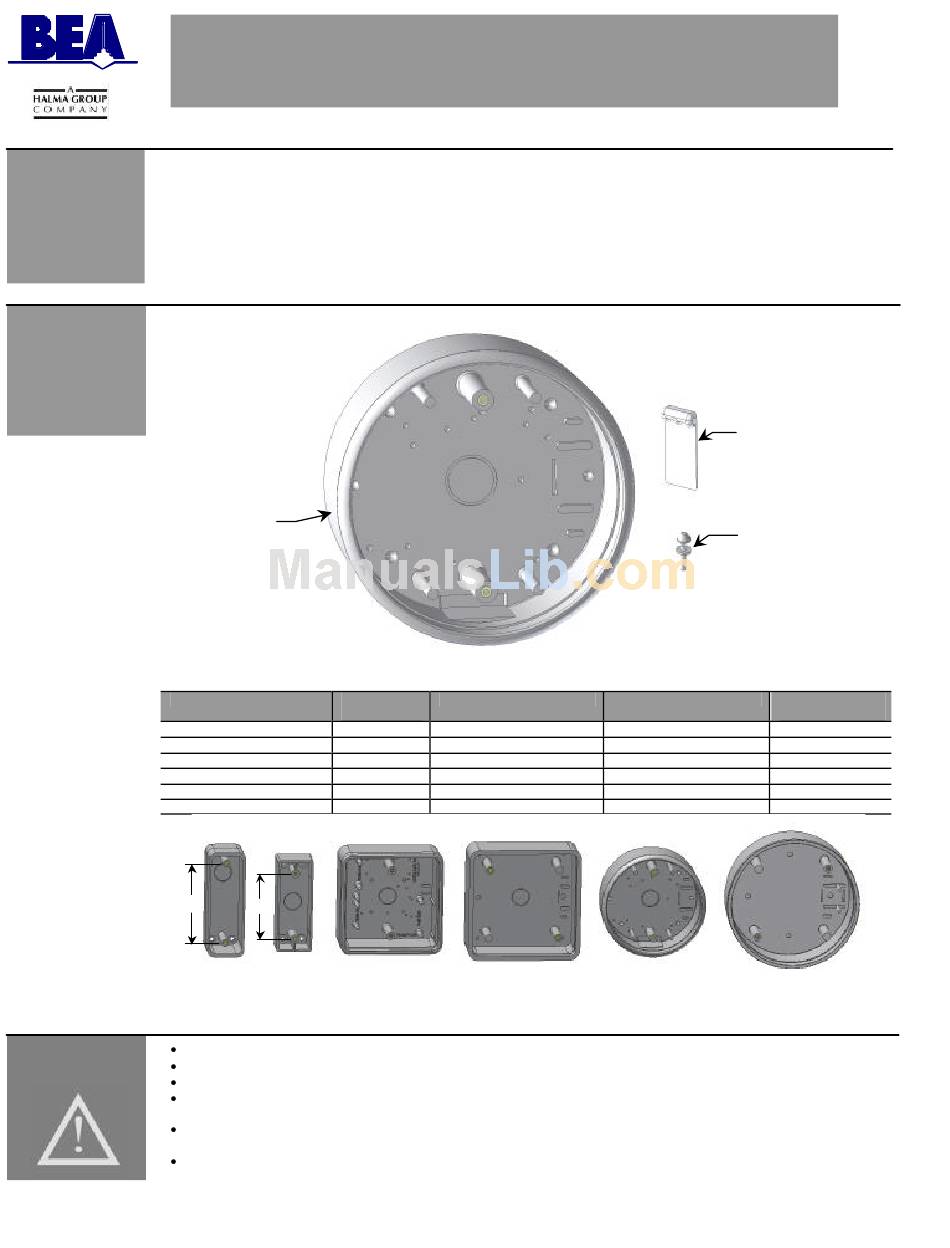

COMPONENT ID

Pushplate Mounting Box
(4 ½" Round Surface Mount shown)
PUSHPLATE SIZE
Jamb (4" hole spacing)
Jamb (3 ¼" hole spacing)
4 ½" Square
4 ¾" Square
4 ½" Round
6" Round
4"

SAFETY

PRECAUTIONS

75.0092 V4 Jan 2004 [Rev. 1/26/2004]
PUSHPLATE MOUNTING BOXES
PUSHPLATE
SERIES
10PBJx
10PBJSx
10PBS45x
10PBSx
10PBR45x
10PBRx
3 ¼"
4" 3 ¼ " 4 ½"
JAMB JAMB SQUARE
Shut off all power going to the header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian traffic around the door area.
Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected
reactions by the door.
Always check placement of all wiring before powering up to insure that moving door parts will not catch
any wires and cause damage to equipment.
Ensure compliance with all applicable safety standards (i.e. A NSI A156.10) upon completion of
installation.
USERS GUIDE
SURFACE MOUNT BOX
10BOXJAMBSM
10BOXJAMBST
10BOX45SQSM
10BOX475SQSM
10BOX45RNDSM
10BOX6RNDSM
4 ¾ "
SQUARE
9V Battery Clip
(1 per box, not used
on jamb sized boxes)
Transmitter Mounting Pin
(6 per box, not used on jamb
sized boxes)
FLUSH MOUNT BOX WEATHER RING
(Optional)
10BOXJAMBFM N/A
N/A N/A
N/A N/A
10BOX475SQFM 10WRSQ475
10BOX45RNDFM 10WRRND45
10BOX6RNDFM 10WRRND6
4 ½ " 6"
ROUND ROUND
Page 1 of 2
