Vicko THMGC500A Instruction Manual

2 in 1, electric tomato juicer & meat grinder
Hide thumbs

Advertisement

Quick Links

Download this manual

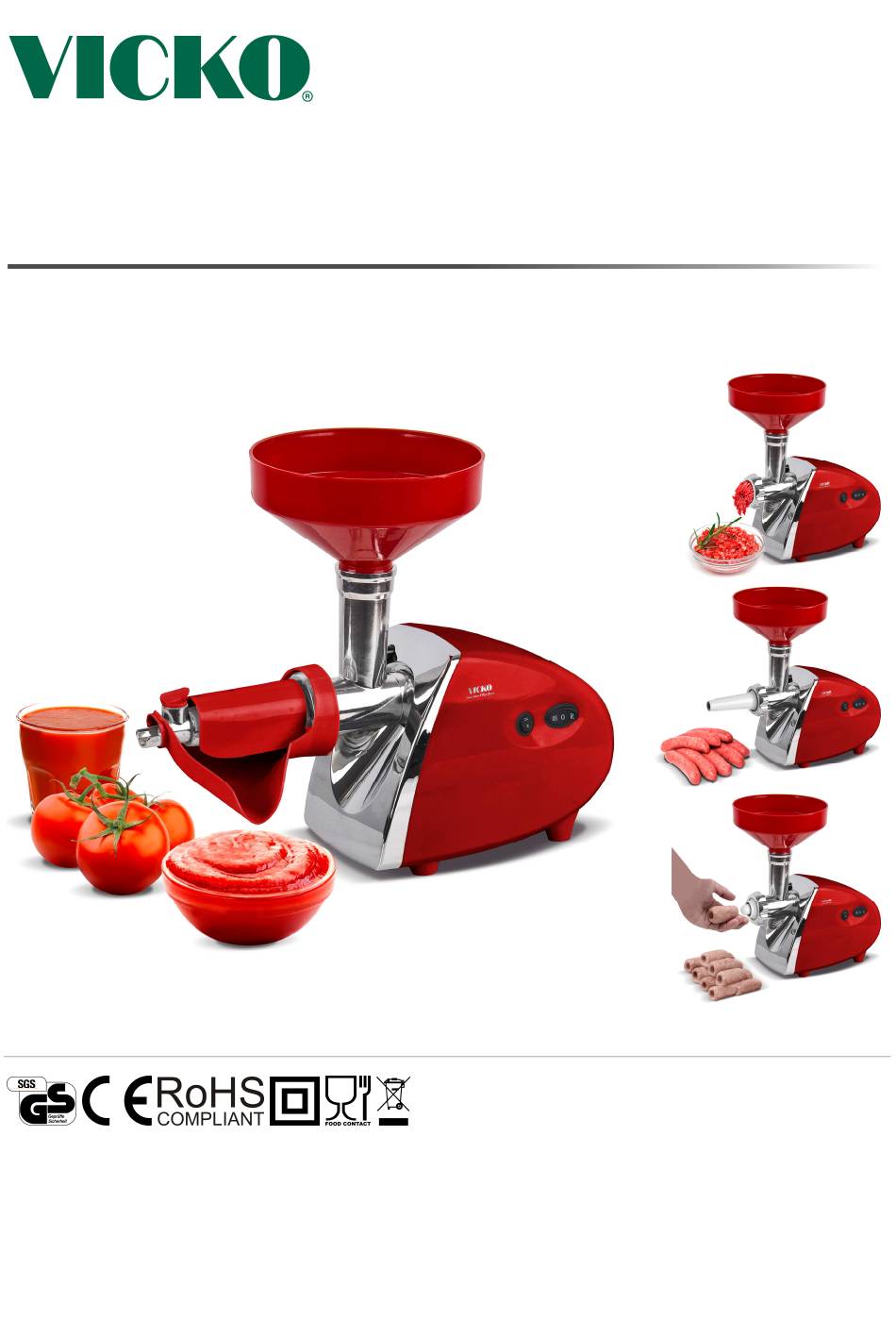

2 in 1, Electric Tomato Juicer & Meat Grinder
Model No: THMGC500A
Ref. No: 876-4409
INSTRUCTIONS MANUAL
28

Advertisement

loading
Need help?

Need help?

Do you have a question about the THMGC500A and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicko THMGC500A

  • Page 1 2 in 1, Electric Tomato Juicer & Meat Grinder Model No: THMGC500A Ref. No: 876-4409 INSTRUCTIONS MANUAL...
  • Page 2 ATTENTION! - IMPORTANT SAFEGUARDS This appliance is designed for private, domestic use only. No responsibility is accepted for damage resulting from use non-compatible with the instructions. The appliance is not intended to be used in the following applications, and the guarantee will not apply for: ...
  • Page 3 21. Do not cover the ventilation holes of the appliance during operation. 22. Always use the device in an upright position. 23. Do not operate the appliance with wet hands. 24. Do not use while you are in contact with water. 25.

  • Page 4: Caution - Risk Of Electric Shock

    47. The appliance should only be stored indoors in a dry place away from moisture and high or very low temperature. Avoid direct exposure under ultraviolet. 48. Always make sure the appliance is clean and dry before storing it. 49. Do not store the appliance while it is still warm. CAUTION! Read all the instructions carefully before you use the appliance and keep them for future use.

  • Page 5: Before Use

    BEFORE USE 1. Ensure the packaging of this appliance is disposed of properly as all materials are recyclable. 2. Keep plastic bags away from babies and children. 3. After you remove the device from its packing, clean it with a damp cloth. 4.

  • Page 6: Appliance Details

    APPLIANCE DETAILS 1. Main Motor Unit 2. “ON / R” Switch (ON / Reverse) “ON / 0 / R” Switch (ON / OFF/ Reverse) 4. Release button (for Milling tube) 5. Inlet for the Milling tube 6. Milling tube 7. Feed screw (metal) 8.
  • Page 7 Switch Settings “ON / R” Switch Position “ON”: Normal Function Position “R”: Reverse Function “ON / 0 / R” Switch Position “ON”: Normal Function Position “0”: Deactivate (OFF) Position “R”: Reverse Function Normal Function (Juicing / Grinding) Both switches (“ON / R” Switch and “ON / 0 / R” Switch) should be in position “ON”...
  • Page 8 ASSEMBLY Please follow the instructions below in order to assembly the appliance. ATTENTION: Always make sure the appliance is unplugged from the power supply before starting to assemble or disassemble it. Never assemble or disassemble any accessory when the appliance is in operation. Assembling the milling tube: Put the milling tube (6) in the inlet (5) and turn it counterclockwise to “lock”...
  • Page 9 Assembling Tomato Juicer accessories: Please follow the instructions below. 1. Put the milling tube (6) in 2. Place and fit the metal 3. Place and fit the plastic the inlet (5) on the main feed screw (7) inside feed screw (8) as an unit.
  • Page 10 6. Put and screw the nut 7. Place and fit the Juice collector tray (14) on the (13) to lock in position all bracket (10). accessories at the edge of the milling tube (6). Warning: Do not over tighten! 8. Put the bracket cover 9.
  • Page 11 Assembling Meat Grinder accessories Please follow the instructions below. 1. Put the milling tube (6) 2. Place and fit the metal in the inlet (5) on the feed screw (7) inside main unit. the milling tube (6).
  • Page 12 3. Put and fit the cutter 4. Put ONE cutting plate 5. Put and screw the nut blade (18) on the metal (19) on the metal feed (13) to lock in position feed screw (7). screw (7) after the all accessories at the cutter blade (18).
  • Page 13 Assembling accessories for Sausages Please follow the instructions below. 1. Put the milling tube (6) 2. Place and fit the metal in the inlet (5) on the feed screw (7) inside main unit. the milling tube (6).
  • Page 14 3. Put and fit the 4. Put ONE cutting 5. Put the sausage 6. Put and screw cutter blade (18) plate (19) on the stuffer adaptor the nut (13) to on the metal metal feed (20) on the lock in position feed screw (7).
  • Page 15 Assembling accessories for kubbe Please follow the instructions below. 1. Put the milling tube (6) in the inlet (5) 2. Place and fit the metal feed screw (7) on the main unit. inside the milling tube (6).
  • Page 16 3. Put the kubbe attachment (21) on the 4. Put and screw the nut (13) to lock in metal feed screw (7). position all accessories at the edge of the milling tube (6). Warning: Do not over tighten! 5. Put the feed hopper (16) on the top 6.
  • Page 17 INSTRUCTIONS ON USING THE APPLIANCE Using the appliance as Tomato Juicer: Always make sure to prepare the tomatoes you are about to process before you use the appliance. Slice the tomatoes in small pieces so that they fit easily into the feed hopper ...
  • Page 18 CAUTION: Never push food into the milling tube (6) with any foreign objects or with your  fingers. Use only the food pusher (17) supplied to you with this appliance. To avoid obstructions do not apply excessive force while pushing food. ...
  • Page 19 Using the appliance as Meat Grinder: Always make sure to prepare the food you are about to process before you use the appliance. Defrost frozen meat thoroughly.  Slice the meat in small cubes or stripes so that they fit easily into the feed ...
  • Page 20 CAUTION: Do not try to process food with hard fiber (for example, ginger or  horseradish) with the appliance. Never push food into the milling tube (6) with any foreign objects or with your  fingers. Use only the food pusher (17) supplied to you with this appliance. To avoid obstructions do not apply excessive force while pushing food.
  • Page 21 Using the appliance for preparing Sausages: Always make sure to prepare the food you are about to process before you use the appliance. The mixture of minced meat you are about to use should be already  prepared. During the preparation of the minced meat make sure to process / grind it for 2-3 times.
  • Page 22 9. After you finish processing, turn off the appliance by pressing the “ON / 0 / R” Switch in position “0” and disconnect the power cord from the power supply. 10. Let the appliance cool down and after that you can disassemble and follow the cleaning procedure as mentioned in the “CLEANING”...
  • Page 23 Using the appliance for preparing Kubbe: Always make sure to prepare the food you are about to process before you use the appliance. The mixture of minced meat you are about to use should be already  prepared. During the preparation of the minced meat make sure to process / grind it for 2-3 times Defrost frozen mixture of minced meat you have already prepared ...
  • Page 24 10. Let the appliance cool down and after that you can disassemble and follow the cleaning procedure as mentioned in the “CLEANING” paragraph. CAUTION: Do not try to process food with hard fiber (for example, ginger or  horseradish) with the appliance. Never push food into the milling tube (6) with any foreign objects or with your ...
  • Page 25 CLEANING Clean the appliance and accessories before first use. Clean the appliance and accessories IMMEDIATELY after using it. Before cleaning the appliance always make sure to switch Off, unplug from power supply and disassemble all accessories following the instruction of “ASSEMBLY”...

  • Page 26: Technical Specifications

    TECHNICAL SPECIFICATIONS Model: THMGC500A Ref. No: 876-4409 Power: 350W-450W Rating: 220-240V Frequency: 50/60Hz Features: Easy to opperate. Reversion Rotation. Full set of tomato juicing accessories included. Large Feed hopper. Food pusher. Separates peels from tomato juice. Transforms easily into Meat Grinder and sausages machine.
