Changing The Batteries - Redrock Micro microRemote System User Manual

Handheld
In wireless mode the Remote Handheld unit can be used up to 1 mile (line-of-sight).
The Handheld unit can also be wired to the Basestation (tethered) when wireless is
not available or desired. Turning on the wireless Handheld controller overrides the
Fingerwheel connection. Removing the tethered cable from the Handheld controller
reactivates wireless communication.
E
A
D
B
C

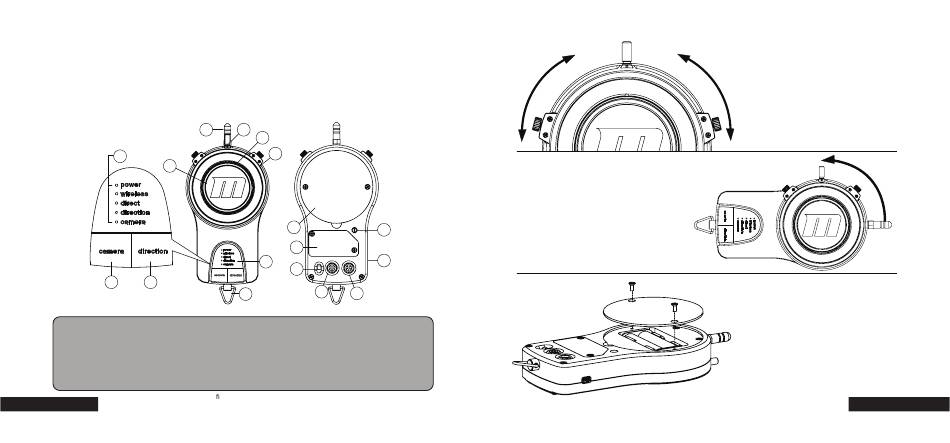

A LED function indicators F Adjustable Indicator
B Camera run/stop button* G Illuminated (optional) marking disk**
C Motor direction button H Adjustable hard stop
(Hold for 3 sec. to toggle) I Control pad
D Control knob
J Lanyard hook
E Wireless radio antenna
K Battery compartment
*With optional cable (camera speci c, camera capable) camera
8 Handheld
run/stop can be controlled from the microRemote.
F
G
H
microRemote
TM
www.redrockmicro.com
K
Q
L
P
I
EXTERNAL POWER DIRECT
M
ON
N
O
J
L Radio compartment
M On/Off switch
N Power port
O Direct control port
P Mini USB port
Q Radio channel selector
**See page 17 for illuminated marking disk
information
Adjusting the Indicator
The adjustable indicator allows you to hold
the Handheld unit however you find most
comfortable. Decide which position works
best for you and bring the indicator to the 12
O'clock position.
To adjust the indicator, loosen the indicator
knob. Slide to desired position. Tighten knob.
Adjusting the Hard Stops
Rather than relying solely on marks on the
marking disk, the adjustable hard stops
help you achieve better accuracy and
repeatable focus.
Loosen the hard stop thumb screw. Slide
to desired position. Tighten thumb screw.

Changing the Batteries

The handheld unit runs on 2 AA batteries,
included with your purchase. Loosen the
two screws in the battery compartment
cover. Remove the cover, insert batteries,
and replace cover.
Handheld 9
