AURATON RPT 230 User Manual

Principles of operation of the AURATON RPT
The AURATON RPT repeated is a device that repeats the signal emitted by a
transmitter to the receiver, without any modification of the signal, in order to
increase the range of the transmitter's radio transmission range.
This is done, for example, in manufacturing buildings where the receiver is out
of the transmitter's range or in multi-floor buildings where thick walls hinder
transmission between the transmitter and the receiver.
Transmitter
Transmitter
max. 30m
(indoor)

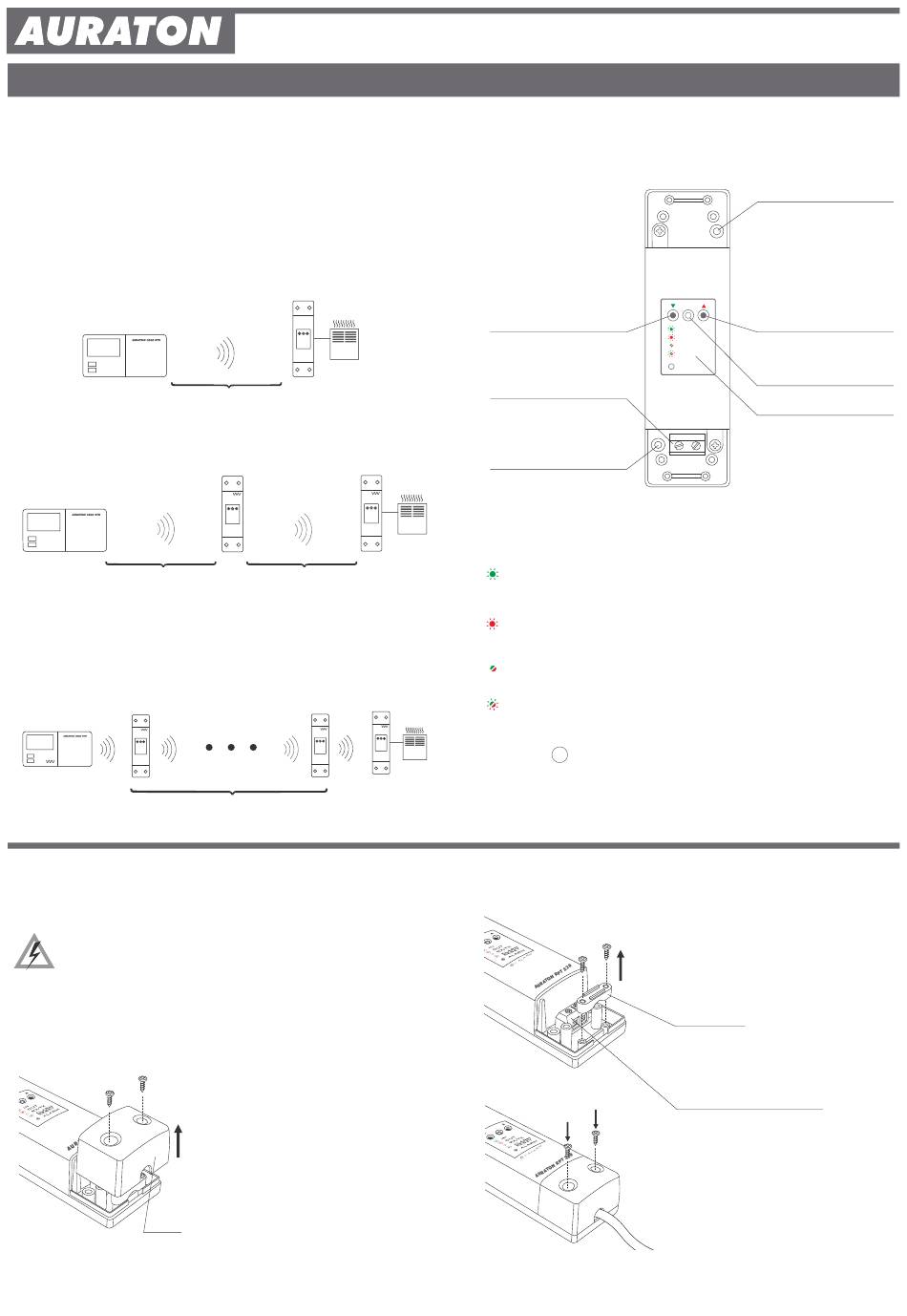

It is possible to build chains consisting of up to 8 repeaters. Each AURATON RPT
repeater automatically receives the signal from another repeater and forwards
it without any additional user settings.
Repeater
AURATON RPT
Fastening the AURATON RPT repeater.
NOTE: When installing the AURATON RPT repeater its power
supply must be disconnected. It is recommended that
the installation is performed by a qualified specialist.
NOTE: The permanent electrical system of a building must
include a breaker and an overcurrent protection.
protective cover
RPT 230 / RPT 12
Receiver
AURATON RTH
max. 30m
(indoor)
Repeater
Receiver
AURATON RPT
AURATON RTH
AURATON RPT
max. 30m
(indoor)
Repeater Receiver
AURATON RPT
max. 8 pcs
AURATON RPT
1. Take off protective covers from the
lower and upper part of the AURATON
RPT .
User Manual
Description of the AURATON RPT 230/12
repeater
button for pairing devices
with the repeater
cable fixture
power supply connection terminal
230 V AC or 12 V DC*
hole for the screw fixing
the repeater to the wall
Key - description of diode signaling
IN
OUT
RX/TX
ALARM
RESET
AURATON RTH
R E P E A T E R
IN
OUT
RX/TX
ALARM
RESET
ALARM
35
min
* ~230 VAC (AURATON RPT 230)
12 VDC (AURATON RPT 12)
Green continuous light – the repeater is waiting for a data packet.
Green blinking light – the repeater is waiting for device pairing -
(chapter: "Pairing of LMS devices with the AURATON RPT repeater").
Red blinking light – the repeater is waiting for a device to unpair -
(rozdział: „chapter: "Unpairing of devices from the AURATON RPT
repeater"").
Alternating red and green light for 1-2 seconds – the repeater
receives/sends a data packet.
Alternating red and green light:
ALARM - the repeater's connection with one of the paired devices is
broken. If AURATON RPT does not receive a data packet from
a paired device for 35 minutes, then it indicates this with
35
min alternating red and greed diode light.
RESET - the repeater unpairs all the previously paired devices -
(chapter: "RESET - Unpairing all devices paired with the
AURATON RPT repeater")
2. Take off cable tie clamps from the lower
and upper part of the AURATON RPT.
cable tie clamp
3. Connect power supply conductors to the
power supply terminals of the
AURATON RPT, observing safety rules
4. After connecting the conductors, they
must be secured with the cable tie
clamps and reinstall protective covers of
the AURATON RPT .
hole for the screw fixing
the repeater to the wall
button for unpairing devices
diode indicating operation
of the device
