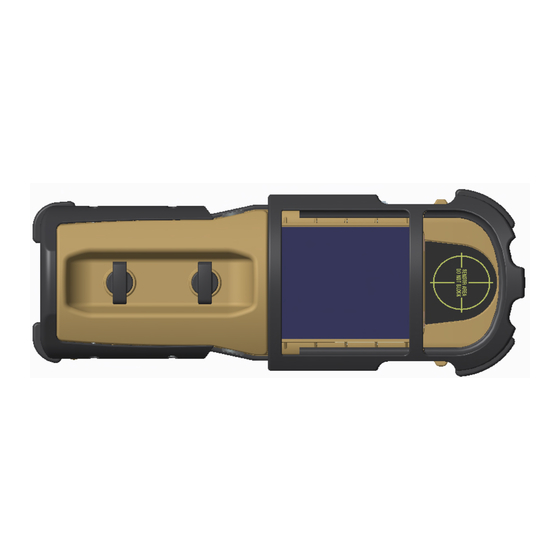

L-3 Technologies CyTerra Range R2D Operation &Training Manual
  1. Manuals
  2. Brands
  3. L-3 Technologies CyTerra Manuals
  4. Measuring Instruments
  5. Range R2D Link
  6. Operation &training manual

L-3 Technologies CyTerra Range R2D Operation &Training Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Certification Exhibit
FCC ID: YKD-25STW4100-019
FCC Rule Part: Subchapter D, Part 90
TÜV SÜD Project Number: 72128221
Manufacturer: L-3 Technologies CyTerra
Model: Range R2D, Range R2D Link
Manual
3998 FAU Blvd., Suite 310, Boca Raton, FL 33431, Phone: 561-961-5585

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Range R2D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for L-3 Technologies CyTerra Range R2D

  • Page 1 Certification Exhibit FCC ID: YKD-25STW4100-019 FCC Rule Part: Subchapter D, Part 90 TÜV SÜD Project Number: 72128221 Manufacturer: L-3 Technologies CyTerra Model: Range R2D, Range R2D Link Manual 3998 FAU Blvd., Suite 310, Boca Raton, FL 33431, Phone: 561-961-5585...
  • Page 2 RANGE-R2D OPERATION &TRAINING MANUAL CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 3 FCC Required Information Warning: Changes or modifications to this device not expressly approved by L-3 CyTerra could void the • user’s authority to operate the equipment NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, •...
  • Page 4 LESSON 1 Description and Capabilities CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 5 INSTRUCTION POINTS • The RANGE-R2D system is a portable, handheld, battery-operated system designed to detect moving and near-stationary targets through walls constructed of common building materials. • The system is comprised of a stepped-frequency, continuous-wave radar transceiver, digital signal processor, display and power supply electronics enclosed in a rugged, water-resistant, lightweight plastic housing.
  • Page 6 GENERAL The RANGE-R2D is lightweight and compact. It is designed to detect moving and near stationary objects through walls constructed of common building materials. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S.

  • Page 7: Mechanical Data

    MECHANICAL DATA Item Weight 11” RANGE-R2D 3 lbs Unit (1.36 kg) Storage 6.1 lbs 4” Container (2.77 kg) Item Dimensions RANGE- 10”x3.6”x3.9” R2D Unit (25.4cm x 9.14cm x 9.91cm) Storage 16.3”x12.8”x6.8” 4” Container (41.4cm x 32.51cm x 17.27cm) CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 8 INSTRUCTION POINTS • The major components are as follows: • Rotational View LCD– displays target information. The display will rotate to match the long axis of system orientation. THIS WILL NOT WORK WITH THE SYSTEM WITH THE LONG AXIS ORIENTED VERTICALLY. •...

  • Page 9: Major Components

    MAJOR COMPONENTS Rearward Looking Receive Antenna Receive Antenna Rotational View LCD Scan Button Scan Button Transmit Antenna Scan Button Scan Button Bumpers removed for Battery Clarity Bottom Right View Top Left View CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 10 INSTRUCTION POINTS • The rearward looking antenna faces the operator and helps reduce the influence of the operator and other “friendly” movers that could otherwise appear as targets on the readout display. • The rearward antenna should never be blocked during operation. •...
  • Page 11 REARWARD LOOKING ANTENNA Used to help reduce false alarms caused by the operator and or people around the operator. DO NOT BLOCK the rearward looking antenna with your non-operating hand Operating hand when trying to will cover the stabilize the system. battery Hold the system at compartment.
  • Page 12 INSTRUCTION POINTS Battery Indicator: Represents battery life of the system • Target Indicator: The red square indicates one target. The red square will also indicate more than • one target in an area if they are close to each other. Track Indicator: Represents a detected target’s last position •...
  • Page 13 LCD SCREEN LAYOUT – Indoor/Against Wall Use Target Battery indicator indicators Target display grid Track indicator Target Brightness Multitarget level/ Field of view Track Over-temp indicators Mover & Breather Processing Status Wall as seen by Number of detected system targets BACK Operator MOTION...
  • Page 14 INSTRUCTION POINTS • The system transmits radar waves into the target area. • All solid objects in that area reflect the waves. • The system receives these reflected waves, processes the return, and analyzes the data using principles of Doppler radar to detect moving objects and identify possible targets.

  • Page 15: Theory Of Operation

    THEORY OF OPERATION Radar waves are transmitted into the target area. The radar waves are then reflected by solid objects. The system detects these reflected waves, analyzes them, and interprets them on the LCD. The sensor can be placed against the wall or from standoff. 25 meters CyTerra Approved for Public Release 20 October...
  • Page 16 INSTRUCTION POINTS • Relative motion is the changing distance between two objects. In other words, it is the relative speed between these objects. • A radar signal reflected off a stationary object (no relative motion) would return at the same frequency as it was transmitted. •...

  • Page 17: Doppler Effect

    DOPPLER EFFECT Radar waves reflected from a stationary target will remain constant. Radar waves reflected from a moving object will be compressed if the object is approaching or stretched if the object is receding. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 18 DOPPLER EFFECT Each movement from the target will have an effect on the Doppler. These movements will be detected by the system and displayed on the LCD. •Breathing •Limb Movement • Unintentional Micro- Movements CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 19 INSTRUCTION POINTS • The RANGE-R2D detects targets up to a range of 25 m from the sensor. • The RANGE-R2D senses motion through non-metallic walls and barriers of different materials such as drywall, adobe, cinderblock, and rebar reinforced concrete. It has been tested through walls up to 12” thick, but may not be limited to this material depth dependent upon composition and density.
  • Page 20 CAPABILITIES Function Performance Max effective range 25 meters (from sensor) Minimum mobile target 5 seconds acquisition time Minimum stationary target* 30 seconds acquisition time Accuracy 2 meters in range or cross range Field of View +/-80° from center (open air) Water resistant 4 feet for 30 minutes * A target that exhibits activity but does not...
  • Page 21 CAPABILITIES Standing (min move) Detect Detect Time ≈ Time ≈ 5 Sec Detect Time ≈ 30 Sec Detect Time ≈ 15 Sec 30 Sec Seated Seated Moving Prone (min move) (moving) CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 22 LESSON 2 Operation CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 23 INSTRUCTION POINTS Prior to operation, batteries need to be installed into the RANGE-R2D • system. • The RANGE-R2D is designed to operate on eight standard “AA” sized 1.5v lithium batteries. • Alkaline AA, and 1.5v Nickel Metal Hydride AA batteries can be used in the system, but will not give you maximum performance from the system.

  • Page 24: Battery Installation

    BATTERY INSTALLATION Functional Batteries (in order of performance) 1.5v Lithium (L-91) 1.5v Nickel Metal Hydride Alkaline WARNING Installing the batteries incorrectly will cause the system to malfunction. DO NOT MIX BATTERY TYPES!! Note: Bumpers removed for clarity CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 25 BATTERY COMPATIBILTY/PERFORMANCE Battery Type Operational Battery Life vs. Temp (“AA” Size x Condition -20°C 25°C 50°C (On/Off Cycle) (-4°F) (77°F) (122°F) Lithium 30 sec/3 min 9.1 hrs 11.7 hrs 12.75 hrs NiMH 30 sec/3 min 6.5 hrs 6.6 hrs 8.3 hrs Alkaline 30 sec/3 min 0.25 hrs...
  • Page 26 INSTRUCTION POINTS • Operator controls consist solely of the two momentary push button switches referred to as scan buttons located on the sides of the system. • These two buttons perform the several functions: they power on the system, power off the system, adjust the brightness, and navigate the user interface.

  • Page 27: Control Sequence

    CONTROL SEQUENCE Function Sequence Power-On Press and release both Scan Buttons. Sensor will boot to Menu Mode. Power-Off Press and hold both Scan Buttons for 3 seconds. Brightness Control In the Main Menu select brightness and press either up or down to brighten or dim the display. Zoom Selection In Scan Mode, press the bottom Scan button to zoom in.
  • Page 28 INSTRUCTION POINTS • With batteries installed, aim the system in the desired direction (either against a wall or in stand off) and press and release the two scan buttons. • Tracking of moving targets will start in a minimum of three seconds. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October...
  • Page 29 HOLDING THE SYSTEM Wall Coupled Use: Stand Off Use: • Select Wall Mode •Mount sensor on tripod or monopod • Thumb and index finger operating •Select Standoff Mode scan buttons •DO NOT COVER OR BLOCK • Palm covering battery compartment REARWARD LOOKING ANTENNA! •...

  • Page 30: System Initialization

    SYSTEM INITIALIZATION WARNING Do not block rearward antenna while scanning. Once the system is in the desired position (flush to the wall or aimed at the target structure), depress and release the Scan Buttons Note: Bumpers removed for clarity...
  • Page 31 WALL COUPLING Wall Mode is selected in the menu screen and utilizes a 180 degree FOV. The first wall always appears at the “0 line” when the system is set to Wall mode, whether the system is against a wall or not. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October...

  • Page 32: Scan Times

    SCAN TIMES Factors to Consider When Gauging Scan Time •The minimum amount of time to detect a stationary target (standing person) is six seconds. • There is a 2.5 second delay between the real movement and the displayed results. The object is displayed where it was 2.5 seconds ago.
  • Page 33 CAPABILITIES Standing (min move) Detect Detect Time ≈ Time ≈ 5 Sec Detect Time ≈ 30 Sec Detect Time ≈ 15 Sec 30 Sec Seated Seated Moving Prone (min move) (moving) CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 34 INSTRUCTION POINTS Brightness Adjustment • The brightness level of the display is adjustable via a menu selection. • To increase the brightness, select up and press the top scan button. • To decrease the brightness, select down and press the top scan button. •...

  • Page 35: Adjusting Screen Brightness

    ADJUSTING SCREEN BRIGHTNESS The brightness level is adjusted on the menu screen. The operator Selects “up” or “down” to adjust the brightness of the screen. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S.
  • Page 36 INSTRUCTION POINTS • By using the correct button sequence, the operator can navigate through the four different menus . This allows the operator to customize the use of the system. Once again, the Scan Buttons are used to navigate the menus and make selections.

  • Page 37: Menu Navigation

    MENU NAVIGATION • Press and release Scan Buttons to enter menu mode. • Press and release the lower button to scroll through menu choices. • Press and release the top button to make the selection. • Currently selected options are noted by the * •...

  • Page 38: Display Zoom

    DISPLAY ZOOM • The system allows changing the display to focus on an area smaller than the default 25m range and azimuth. Momentarily depressing the bottom button while in scan mode changes to the 10m x 10m display, pressing it again gives a 5m x 5m display.
  • Page 39 10m x 10m DISPLAY ZOOM Off Display Target Indicator Target Off Display Target Track Indicator CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 40 5m x 5m DISPLAY ZOOM Off Display Target Indicator Target Off Display Target Track Indicator CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 41 INSTRUCTION POINTS • Whenever the system is not functioning properly, yet is still able to boot up, the message “RETURN TO DEPOT” will appear. • If this happens, shutdown the system, wait 10 seconds, and restart the system. • Ensure the batteries are fully charged and installed properly. •...

  • Page 42: System Fault

    SYSTEM FAULT RETURN TO DEPOT •Shut down the sensor •Power on the sensor •If problem continues send for maintenance CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S.
  • Page 43 INSTRUCTION POINTS Wall blockage occurs when a large reflective object obscures the view of the target • area. The reflective abject may be within the wall itself or in close proximity to the wall. The RANGE-R2D sensor alerts the operator if such a condition exists. Since it is possible that the transmit signal is being blocked and not reaching •...
  • Page 44 FRONT BLOCKED FRONT BLOCKED •Attempt to scan in a different area •Consider construction materials •Saturated, porous materials •Metal CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 45 INSTRUCTION POINTS • There may also be cases where the system is receiving outside interference causing it not to function as intended. In this case, the message “JAMMED” will appear on the screen letting the operator know there is a problem. •...
  • Page 46 JAMMED JAMMED •Outside interference is preventing scanning •Consider other equipment being used by your unit •Consider equipment being used by adjacent units •Consider enemy/local capabilities •Multiple systems working near each other CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 47 INSTRUCTION POINTS • Describe the different Battery Status Indicators • FULL BATTERY – The battery voltage is sufficient to provide full operational performance. • LOW BATTERY CAUTION – The battery voltage is beginning to get low, but will continue to function normally. The operator should consider replacing the batteries when only 2 bars are illuminated.

  • Page 48: Battery Status Indicators

    BATTERY STATUS INDICATORS FULL BATTERY – The battery voltage is sufficient to provide full operational performance. LOW BATTERY CAUTION – The battery voltage is beginning to get low, but will continue to function normally. The operator should consider replacing the batteries when only 2 bars are illuminated.
  • Page 49 LESSON 3 Factors Affecting Detection CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S. Army Project Manager I2WD...
  • Page 50 USING A MOTION DETECTOR The purpose of this section is to make the user aware of phenomena that can affect the performance of radar based sensors in general, and phenomena that can affect the RANGE-R2D specifically. These phenomena do not affect every usage of the sensor or every venue where it may be used, but they are factors the operator needs to be aware of to maximize the effectiveness...
  • Page 51 USING A MOTION DETECTOR Factors that can cause unwanted detections (False Alerts) This is a motion detector. It will pick up the movement of any object. This includes but is not limited to: •Animals •Friendly personnel (in front or behind the operator) The system target acquisition algorithm is designed to negate the following, but these items may still appear as targets: •The movement of trees and foliage caused by the wind...
  • Page 52 USING A MOTION DETECTOR Factors that can cause missed detections Environmental factors can create a “noisy” Doppler environment and can make it more difficult for the sensor to detect the targets of interest: •Ceiling fans can create a Doppler signal in their immediate vicinity of greater strength than that of a stationary target, potentially causing the target of interest in the same immediate vicinity to not be detected.
  • Page 53 INSTRUCTION POINTS • Radar will not penetrate metallic surfaces. Should you try to scan over a metallic surface the “Blocked” screen appears. In this instance you should attempt to rescan in an attempt to find a less metallic area. • Metal plate is the most likely to give you problems. •...

  • Page 54: Building Materials

    BUILDING MATERIALS FRONT BLOCKED Metallic Surfaces and Objects • Sensor can not penetrate metal surfaces • Move sensor and attempt to rescan • Metallic surfaces behind non- metallic surfaces could also block the system (refrigerator, file cabinet). CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 55 UNDETECTED FRONT BLOCK Refrigerator/filing cabinets Unseen obstructions • Metal objects behind the wall can block the signal from the radar. • Because there is space between the system and the metal, the blocked warning may not be detected. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 56 BUILDING MATERIALS Concrete Block The spaces in concrete block walls can cause some reduction in detection ability Scanning with the system Attempt to scan with the system between two blocks may over one block only. reduce the effectiveness of the system.
  • Page 57 BUILDING MATERIALS Moisture content of the structure being scanned will affect the systems ability to “see” through the walls. If the surface is saturated, the system may not be able to detect targets at all. The amount of moisture will affect the systems detection capability.
  • Page 58 OPERATOR INDUCED ERRORS When scanning against the wall, ensure that system is flush to the surface being scanned and being held to eye level. Begin scanning only after you have set the system in place. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 59 OPERATOR INDUCED ERRORS As the operator you can diminish the systems ability to detect objects. The system should be held so the operator’s hands do not interfere with any of the system’s antennas. RANGE-R2D Bumpers removed for clarity Do not block the rearward Do not block the front looking looking antenna.
  • Page 60 INSTRUCTION POINTS • Movement from the operator, teammates, and the operator moving the sensor itself can all affect what is/isn’t detected by the system. The movement indicator on the bottom right corner of the LCD lets the operator know if he/she is moving the sensor enough to affect detection. •...
  • Page 61 INSTRUCTION POINTS • The sensor will also indicate areas of possible reduced detection by showing those areas as shaded on the display. Area of Reduced Detection CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 62 INSTRUCTION POINTS • The movement from ceiling fans can cause the noise level the radar sees to be too high for stationary target detection in the area under and adjacent to the fan. The RANGE-R2D can detect the unique signature of a ceiling fan and will show the operator where it’s located so they can be aware of the area of reduced detection.
  • Page 63 INSTRUCTION POINTS The movement from ceiling fans can cause the noise level the radar sees to be too • high for stationary target detection in the area under and adjacent to the fan. The RANGE-R2D can detect the unique signature of a ceiling fan and will show the operator where it’s located so they can be aware of the area of reduced detection.
  • Page 64 INSTRUCTION POINTS The electronic signature emitted by fluorescent lighting can cause areas of • reduced detection. The can detect the unique signature of fluorescent RANGE-R2D lights and it alerts the operator that it’s present and detection may be reduced. Target Track FLUOR CyTerra...
  • Page 65 OPERATOR INDUCED ERRORS Operators Effect on the System: The operator should remain as still as possible. This is especially important when the sensor is being used in standoff from a wall. The system will display no new information while the Operator Movement Indicator is displayed. If the Operator Movement Indicator appears, first attempt to stabilize the system.
  • Page 66 INSTRUCTION POINTS • Part of the radar energy emitted by the sensor penetrates the building and part reflects off the building back in the direction of the sensor. • The energy reflected off the building can reflect off moving objects behind the sensor and back to the sensor in a path makes movement behind the sensor look like it is actually in front of it.
  • Page 67 BACKSIDE TARGETS WARNING The energy from personnel moving behind the sensor may prevent detection of targets To help prevent this, the system will warn you that there is too much motion being detected on the operator’s side of the system by displaying the Excessive Backside Motion Icon.
  • Page 68 REDUCED BACKSIDE DETECTION The operator may reduce the effectiveness of the rearward looking antenna’s ability to reduce backside motion if the antenna is blocked by the operators body This reduced area will move based on how the system is held by the operator No reduction No reduction Operator...
  • Page 69 INSTRUCTION POINTS • Part of the radar energy emitted by the sensor penetrates the building and part reflects off the building back in the direction of the sensor. • The energy reflected off the building can reflect off moving objects behind the sensor and back to the sensor in a path makes movement behind the sensor look like it is actually in front of it.

  • Page 70: The Display

    ENVIRONMENTAL TARGET MASKING • The sensor detects backside motion and indicates the area in the field of view that may be impacted by shading that area on the display. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.

  • Page 71: Multiple Targets

    MULTIPLE TARGETS Targets may be too close to be represented by individual target icons. The multi target icon (red square) is used in these situations. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S.
  • Page 72 LARGE TARGETS Larger targets may appear to travel in an arc when they pass in front of the system. This is because of their large radar cross section. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 73 INSTRUCTION POINTS • The best detection performance occurs directly in front of the unit, and extends out ±60 degrees in a conical pattern. • The detection performance rapidly falls off to a minimum at ±90 degrees, creating blind spots. Detection is possible within these blind spots, but will be greatly reduced.
  • Page 74 FACTORS EFFECTING DETECTION Areas of Reduced Accuracy in the Field of View. The best detection performance occurs directly in front of the unit, and extends out ±60 degrees in a conical pattern. Detection performance rapidly falls off to a minimum at ±90 degrees, creating blind spots.
  • Page 75 INSTRUCTION POINTS • Multiple scans performed at set intervals along the wall or adjacent walls of the same room will increase area coverage and increase your probability of detecting targets. • By performing these extra scans, the amount of area with diminished detection performance is drastically reduced.
  • Page 76 WALL DETECTION • Walls less than one meter apart will not be counted as two walls. • If the second wall is greater than 10 meters away it will not be displayed on the readout 18 m CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 77 FACTORS AFFECTING DETECTION Area Coverage. Multiple scans performed at set intervals along the wall or adjacent walls of the same room will increase area coverage and increase your probability of detecting targets. More Likely Probability of Detection CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 78 INSTRUCTION POINTS • The RANGE-R2D is also capable of detecting targets on different floors within a building if the targets falls within the field of view of the system. • Operators will not be able to determine precisely which floor is producing the alert.
  • Page 79 FACTORS EFFECTING DETECTION Multi-level Structures. When scanning a multiple level structure, personnel on different levels may be detected if the target is within the field of view of the system. More Likely Two Story Building Probability of Detection CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 80 ENVIRONMENTAL TARGET MASKING • Breathers could be masked by environmental factors. • The sensor detects this and indicates the area in the field of view that may be impacted by shading that area on the display. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 81 INSTRUCTION POINTS • If necessary or desired, the system can be used in standoff away from a wall. The system will still display the first two walls within detection range. Keep in mind that the systems range is still 25 meters. If the system is held 10 meters from a wall you will only be able to detect 15 meters past that wall.
  • Page 82 SCANNING WITH STANDOFF It is possible for the system to be used away from walls or surfaces to detect targets. Ensure the distance from the first wall is greater than ½ meter. Detection of the first wall is critical to operation of the sensor. If the first wall is not shown at correct approximate location, move the sensor enough to bring up the motion indicator.
  • Page 83 NARROWED FIELD OF VIEW To help reduce the risk of false positives when set to Standoff mode, the system will adjust it’s field of view to 90 degrees. (Field of view is 180 degrees when set to Wall mode.) 90° 90°...
  • Page 84 SCANNING WITH STANDOFF Aim the system at the structure you intend to scan. Just keeping the system “level” can result in the ground being interpreted as a wall by the system. meters meters CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S.
  • Page 85 SCANNING WITH STANDOFF When scanning in standoff mode it is important to be center the system to the structure you are scanning. If you are not centered on the structure when scanning, the first wall may not be detected giving you inaccurate readings while scanning Scanning from the corners or off angles can reduce the...
  • Page 86 INSTRUCTION POINTS • While not the ideal method of operation, the system can be used +/- 10° from parallel of the wall being scanned. • Using the sensor at a greater angle than 10˚ from the wall may cause degradation of detection of walls and negatively affect detection of targets. CyTerra Approved for Public Release 20 October Approved for Public Release 20 October...
  • Page 87 SCANNING WITH STANDOFF Off-Angle Use Not the ideal method of operation. Operating the system this way will reduce the effectiveness of the scan. ±10° CyTerra Approved for Public Release 20 October Approved for Public Release 20 October 10/13/2017 2015 by U.S. Army Project Manager I2WD 2015 by U.S.
  • Page 88 RANGE-R2D LINK ADDENDUM TO RANGE-R2D OPERATION &TRAINING MANUAL CyTerra Approved for Public Release 20 October 2015 by U.S. Army Project Manager I2WD...
  • Page 89 FCC Required Information Warning: Changes or modifications to this device not expressly approved by L-3 CyTerra could void the • user’s authority to operate the equipment NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, •...
  • Page 90 LESSON 1 Description and Capabilities CyTerra Approved for Public Release 20 October 2015 by U.S. Army Project Manager I2WD...

  • Page 91: Power Supply

    INSTRUCTION POINTS • The RANGE-R2D LINK system is RANGE-R2D with secure WiFi capability added that allows remote monitoring and control of the system from a distance of 100 meters or greater (Line of Sight). • The 2D LINK system can also operate from AC power with the provided power supply.
  • Page 92 MAJOR COMPONENTS REMOTE DEVICE RANGE-R2D LINK WiFi Module WIFI ANTENNAS! Keep hands away from this edge for best results. Note: Do not cover Remote Tripod Mount Device Antennae POWER SUPPLY BATTERY CHARGER CyTerra Approved for Public Release 20 October 2015 by U.S. Army Project Manager I2WD...
  • Page 93 MECHANICAL DATA Item Weight 11” RANGE-R2D Link 3.5 lbs Unit (1.36 kg) Storage Container 6.1 lbs 4” (2.77 kg) Soft Case 0.5 lbs (0.23 kg) Item Dimensions RANGE-R2D 12”x3.6”x3.9” Link Unit (25.4cm x 9.14cm x 9.91cm) Storage 16.3”x12.8”x6.8” 4” Container (41.4cm x 32.51cm x 17.27cm) CyTerra Approved for Public Release 20 October...
  • Page 94 LESSON 2 Operation CyTerra Approved for Public Release 20 October 2015 by U.S. Army Project Manager I2WD...

  • Page 95: Powering The System

    POWERING THE SYSTEM • The RANGE-R2D LINK can operate from either Lithium Energizer L91 primary batteries, rechargeable nickel metal hydride batteries, or external AC power supply. – Install the desired batteries or connect the external power supply to the external power connector.
  • Page 96 POWERING THE SYSTEM • The WiFi module is in the OFF setting when the sensor is initially powered • To enable WiFi, select WiFi from the main menu and it will toggle to the on state. – Note: Once enabled, WiFi remains on until power on the sensor is cycled off and then on again.
  • Page 97 POWERING THE SYSTEM • Power on the remote device, allow Microsoft Windows 10 to start, and navigate to the RANGE-R2D Link App on the Windows Desktop WIFI ANTENNAS! Keep hands away from this edge for best results. CyTerra Approved for Public Release 20 October 2015 by U.S.
  • Page 98 Using The Windows Application • Double tap on the RANGE-R2D Link icon to start the application. • Application will connect to sensor • Sensor will go into SCAN mode CyTerra Approved for Public Release 20 October 2015 by U.S. Army Project Manager I2WD...
  • Page 99 POWERING THE SYSTEM • The app will open and the remote device will indicate it’s connecting to the sensor. TOGGLE SELECT NEXT RECORD Note: Do not cover the remote display Signal CyTerra antennae Quality Approved for Public Release 20 October 2015 by U.S.
  • Page 100 POWERING THE SYSTEM • When the remote device has completed connection to the sensor the Main Menu display shown on the sensor display will show on the remote device. Press the Toggle button TOGGLE To switch between the Main Menu and Scanning Press the Select button SELECT To make a Menu selection...
  • Page 101 POWERING THE SYSTEM • When in scan mode, the display on the sensor is duplicated on the remote device and the RANGE-R2D LINK operates as if the user were holding it. Follow RANGE-R2D Operating Instructions for use. TOGGLE SELECT NEXT RECORD CyTerra Approved for Public Release 20 October...

  • Page 102: Turning The System Off

    TURNING THE SYSTEM OFF • Close the RANGE-R2D LINK application by tapping on the “X” in the red box in the upper right hand corner of the display. • Power the remote device off using the standard Windows 8.1 method. •...
