Do not attempt to install this product on any vehicle other than the one listed above!
Item Qty. Part #
1
1
2
1
3
1
4
4
5
4
6
4
7
4
8
4
9
1
10
5
11
5
12
5
Tool Required:
18mm, 9/16" & 3/4" Socket
18mm, 9/16" & 3/4" Wrench
Ratchet & Ratchet Extension
Note: If your vehicle is not equipped with factory tow hooks, attach the main brackets and auxiliary bracket to the frame using
the supplied ½" rod bolts, ½" flat washers, ½" lock washers and ½" hex nuts.
Installation Instructions

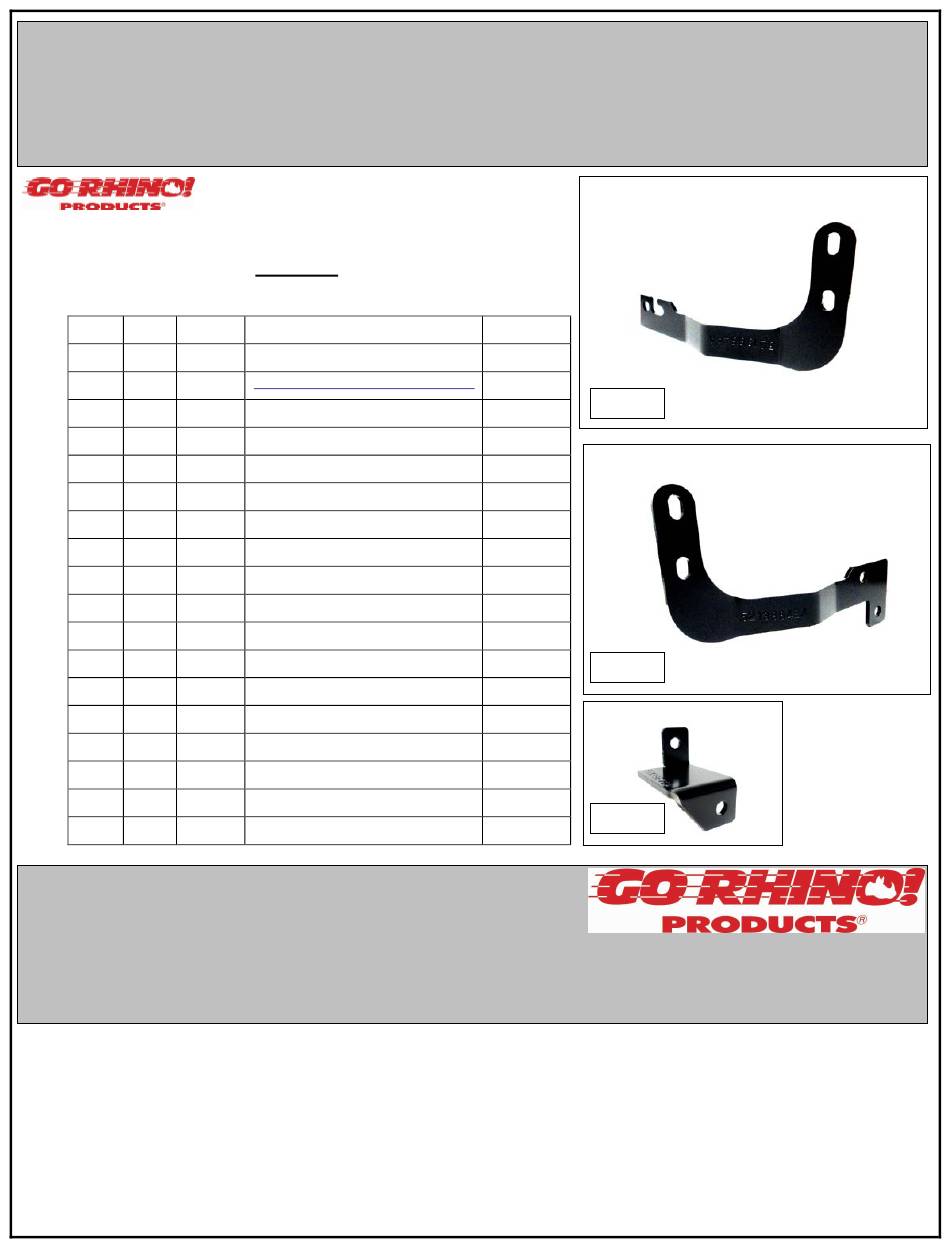

RC2 Brackets Part # 55185
2014 Chevrolet Silverado 1500 2/4WD
Parts List
Description
Driver Side Main Bracket
Passenger Side Main Bracket
Passenger Side Auxiliary Bracket
3/8" x 1" Carriage Head Bolt
3/8" Flat Washer
3/8" Lock Washer
3/8" Hex Nut
1/2" Rod Bolt
1/2" x 1 ½" Hex Bolt
1/2" Flat Washer
1/2" Lock Washer
1/2" Hex Nut
Torque
#1
30 Ft. Lbs.
30 Ft. Lbs.
65 Ft. Lbs.
65 Ft. Lbs.
65 Ft. Lbs.
#2
#3
Approximate installation time: 45 min
1
Advertisement
Table of Contents
Summary of Contents for Go Rhino 55185
- Page 1 Installation Instructions RC2 Brackets Part # 55185 2014 Chevrolet Silverado 1500 2/4WD Do not attempt to install this product on any vehicle other than the one listed above! Parts List Item Qty. Part # Description Torque Driver Side Main Bracket...
- Page 2 Step-1 Beginning with the driver side, remove the tow hook rear bolt, nut from the front bolt, (Photo 1 & 2) and the foam trim panel from the tow hook opening. Driver Side Driver Side Step-2 Shift the front tow hook bolt toward the center of the vehicle, then from the tow hook opening, slide the vehicle attachment end of the driver side main bracket under the frame, and rotate the bracket, (Photo 3 &...
- Page 3 Step-4 Passenger side, remove the tow hook rear bolt, nut from the front bolt, (Photo 7 & 8) and the foam trim panel from the tow hook opening. Passenger Passenger Side Side Step-5 From the tow hook opening, slide the vehicle attachment end of the passenger side bracket under the frame, rotate the bracket and position the upper attachment hole in the bracket over the shank of the front tow hook bolt and reinstall the nut, (Photo 9 &...
- Page 4 Step-7 With assistance, position the RC2 Bull Bar up to the main brackets and attach the mounting flanges to the outside of each bracket using (2) 3/8” x 1” carriage bolts, (2) 3/8” flat washers, (2) 3/8” lock washers and (2) 3/8” hex nuts, (Photo 13 & 14).
