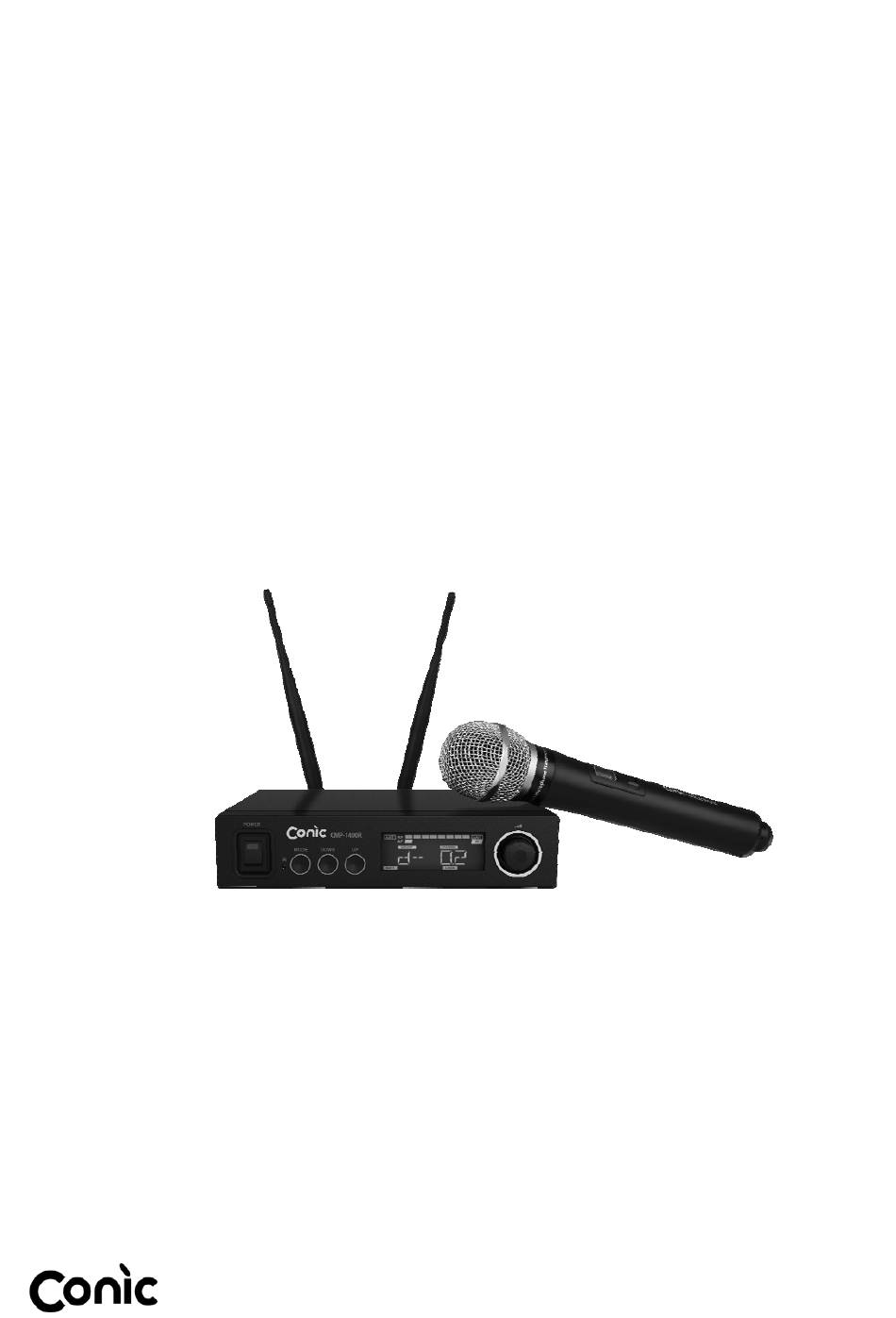

- Page 1 DigitalCom CMP-1400 User Manual 1/14 ...
-
Page 2: Table Of Contents
Contents 1 Safety requirement ................................... 3 2 Handle and Caution in installation ............................3 3 Product Summary ..................................... 3 4 Product Basic Information ................................3 5 Package Details ....................................4 6 Product Part Name ................................... 5 6-1 Transmitter Information & Function ........................5 6-2 Receiver Information &... -
Page 3: Safety Requirement
Maximum 12 channels can be used at the same time. It can be limited according to the distance between the transmitter and receiver. 4. Product Basic Information Description : Wireless Microphone System Model Name : CMP-1400 -Transmitter : CMP-1400TF -Receiver : CMP-1400RF Manufacturer : DigitalCom ... -
Page 4: Package Details
5. Package details Product Receiver (CMP-1400RF) Transmitter (CMP-1400TF) Accessory Adaptor for Receiver Manual Antenna for Receiver x 2EA Pouch for Transmitter ... -
Page 5: Product Part Name
6 Product Part Name 6-1. Each part’s name & Function of Transmitter (CMP-1400TF) ① MIC Ball : It protects the microphone cartridge which can change the electronic signal from voice. ② Back Light Switch On : You can check the current frequency after turning on the back LCD light. ③... -
Page 6: Receiver Information & Function (Front)
6‐2. Each part’s name & Function of Receiver (Front part) ① POWER : It is the power switch. It is used when you turn on/off the device. ② IR Sensor : IR sensor is included so it can send the channel information of receiver to the transmitter. ③... -
Page 7: Receiver Information & Function (Rear)
6-3. Each part’s name & Function of Receiver (Rear part) ① MIC Output Port It is the audio signal output port which is connected with the receiver and 1/4” Phone Jack. ② LOW / HI Switch It can adjust the output level of 1/4” Phone Jack. ③... -
Page 8: Usage Instruction
7. How to Use 7-1 Connection with external devices Please connect the audio cable (one side) with the output port of the receiver, the other side cable with the MIC port of the amplifier. You can choose the BAL port or MIC output port. Please place the receiver to the distant location from the external devices to avoid the noise and the interference. -
Page 9: Channel Setting Instruction (Receiver)
7-2. Channel Setup Method (Receiver) ① Please push the mode switch for 3 seconds then the mode will be changed as “LOCKOF”. ② Please use “UP / DOWN” button to setup groups or channels. If you do not press any buttons for more than 2 seconds, the mode is changed as “LOCK”... -
Page 10: Seek Function Setting Instruction
② The channel of the transmitter is same as the frequency which is found through the receiver’s SCAN. -receiver channel‐ ‐transmitter channel‐ ‐ How to set the “SEEK” function We can find the clear channel of the receiver through the “SEEK”. SEEK *Press MODE button for 3 seconds (LOCKOF) >... -
Page 11: How To Fix Rack Cabinet Of Receiver
‐ Channel Table 7-4. How to fix the rack cabinet Please tighten the screw completely. The provided screws are only used for the rack cabinet fixing. - in case of 2 sets of receivers - in case of 1 set of receiver 11/14 ... -
Page 12: Replacement Guide For Microphone Cartridge & Battery
7-5. Microphone Cartridge & Battery replacement ① Please disassemble the microphone head. ② Please remove the battery cover. ③ Please replace 2pcs of AA size batteries. (+) position should be head to the bottom side. - Battery life of the transmitter - The battery life would be very different according to the using environment. -
Page 13: Trouble Shooting
8. Trouble Shooting 8-1. Malfunction Please check the battery life. If it is no problem, please check the microphone cartridge. 8-2. No Sound or Strange Sound ① the battery is no problem but it does’t make the proper sound. Please replace the microphone cartridge which is provided by the manufacturer. -
Page 14: Product Specification
9. Specification 10-1. Transmitter (CMP-1400TF) Description Unit Standard Frequency 903~927 RF Output 8±2 Channel Number Modulation Frequency Stability ±2(-20℃~+50℃) voltage controlled oscillator Current Sinking 200 Max. Antenna Internal 1.5V AA battery x 2ea (alkaline) Power 10-2. Receiver (CMP-1400RF) Description Unit Standard Frequency 903~927... -
Page 15: Warranty
FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 16 IMPORTANT NOTE: IMPORTANT Safety Instruction: 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat.
