Camera is mounted behind a
mirror for discreet monitoring
/
1
3
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.

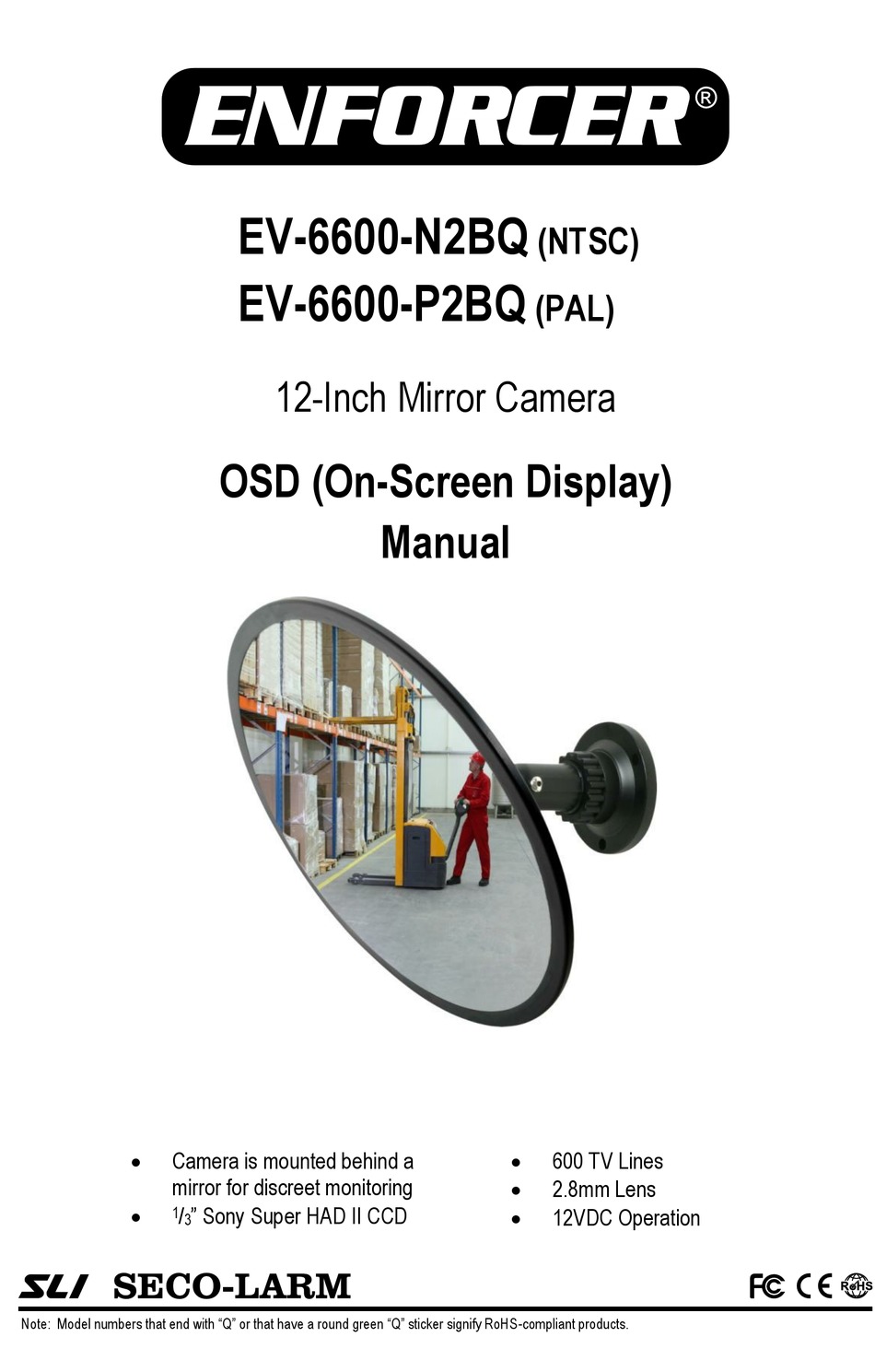

EV-6600-N2BQ
EV-6600-P2BQ
12-Inch Mirror Camera
OSD (On-Screen Display)
" Sony Super HAD II CCD
(NTSC)
(PAL)
Manual
600 TV Lines
2.8mm Lens
12VDC Operation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER EV-6600-N2BQ
Summary of Contents for ENFORCER EV-6600-N2BQ
- Page 1 EV-6600-N2BQ (NTSC) EV-6600-P2BQ (PAL) 12-Inch Mirror Camera OSD (On-Screen Display) Manual Camera is mounted behind a 600 TV Lines mirror for discreet monitoring 2.8mm Lens ” Sony Super HAD II CCD 12VDC Operation Note: Model numbers that end with “Q” or that have a round green “Q” sticker signify RoHS-compliant products.
-
Page 2: Table Of Contents
ENFORCER 12” Mirror Camera Table of Contents: Programmable Features ........2 Backlight How to Use the OSD Controller ....... 3 (Backlight/Highlight Compensation) ..6-7 Main Setup Menu ..........3 Day & Night ..........7-8 Menu Diagram ..........4 DPC ............8 Lens .............. -
Page 3: How To Use The Osd Controller
ENFORCER 12” Mirror Camera How to Use the OSD Controller: 1. Press down on the joystick to open the on-screen display (OSD) menu. 2. Use the joystick to navigate the OSD menu. 3. To select an item, press down on the joystick. -
Page 4: Menu Diagram
ENFORCER 12” Mirror Camera Menu Diagram: SETUP MENU SETTING SETTING OPTIONS MANUAL Default setting, no options LENS (see page 5) VIDEO SHUTTER Auto, Flickerless, or -sec to -sec 100,000 BRIGHTNESS Changes how different levels of brightness are handled EXPOSURE Automatic Gain Control – OFF/LOW/MIDDLE/HIGH No option if DAY&NIGHT set to AUTO... -
Page 5: Lens
ENFORCER 12” Mirror Camera Lens: This setting is not used. Exposure: This function is used to manually adjust the shutter speed, brightness, AGC, and DWDR. Select EXPOSURE on the main SETUP menu screen by pressing in the joystick. Select the exposure setting by moving the joystick UP or DOWN. -
Page 6: White Balance
ENFORCER 12” Mirror Camera White Balance (WHITE BAL.): This function adjusts the camera’s white balance. Select WHITE BAL. on the main SETUP menu screen. Select the desired white balance mode by moving the joystick LEFT or RIGHT. When appears, press the joystick in to access a submenu. -
Page 7: Day & Night
ENFORCER 12” Mirror Camera Backlight, continued B. HLC: Program the Highlight Compensation (HLC) function to reduce highlights in the image. LEVEL MODE ALL DAY LEVEL – Adjusts the level of the MASK SKIP ON highlights. (Default: 200) RETURN RET... -
Page 8: Dpc
ENFORCER 12” Mirror Camera Day & Night, continued B. B/W: Sets the camera into B/W mode. D&N B/W BURST – Turns the BURST mode ON BURST or OFF. IR SMART IR SMART – Not used. IR LEVEL... - Page 9 ENFORCER 12” Mirror Camera Special, continued B. MOTION: Allows setting of up to 4 areas on the screen where flashing occurs to MOTION alert the user of motion in the protected AREA SEL. AREA1 area. AREA STATE AREA SEL. – Select one of the 4...
-
Page 10: Reset (To Factory Defaults)
ENFORCER 12” Mirror Camera Special, continued D. PARK. LINE: Enable and adjust a series of on-screen lines and marks. E. IMAGE ADJ.: Adjusts various aspects of the on-screen image. IMAGE ADJ. LENS SHAD. – Turns Lens Shading LENS SHAD. - Page 11 ENFORCER 12” Mirror Camera Also Available from SECO-LARM: Covert PIR Camera EV-5620-N3WQ Features: ” Sony Super HAD II CCD 600 TV Lines 3.7mm Pinhole lens 78° Viewing angle Covertly hidden in a non-functioning PIR housing...
-
Page 12: Troubleshooting
ENFORCER 12” Mirror Camera Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. The screen is blank. Check that the monitor is powered up. Check that the video cable connecting the camera to the monitor is connected properly.
