Summary of Contents for PURE FlexiPump

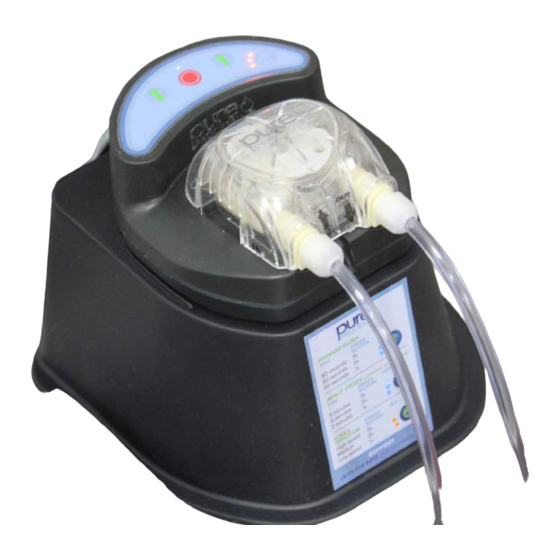

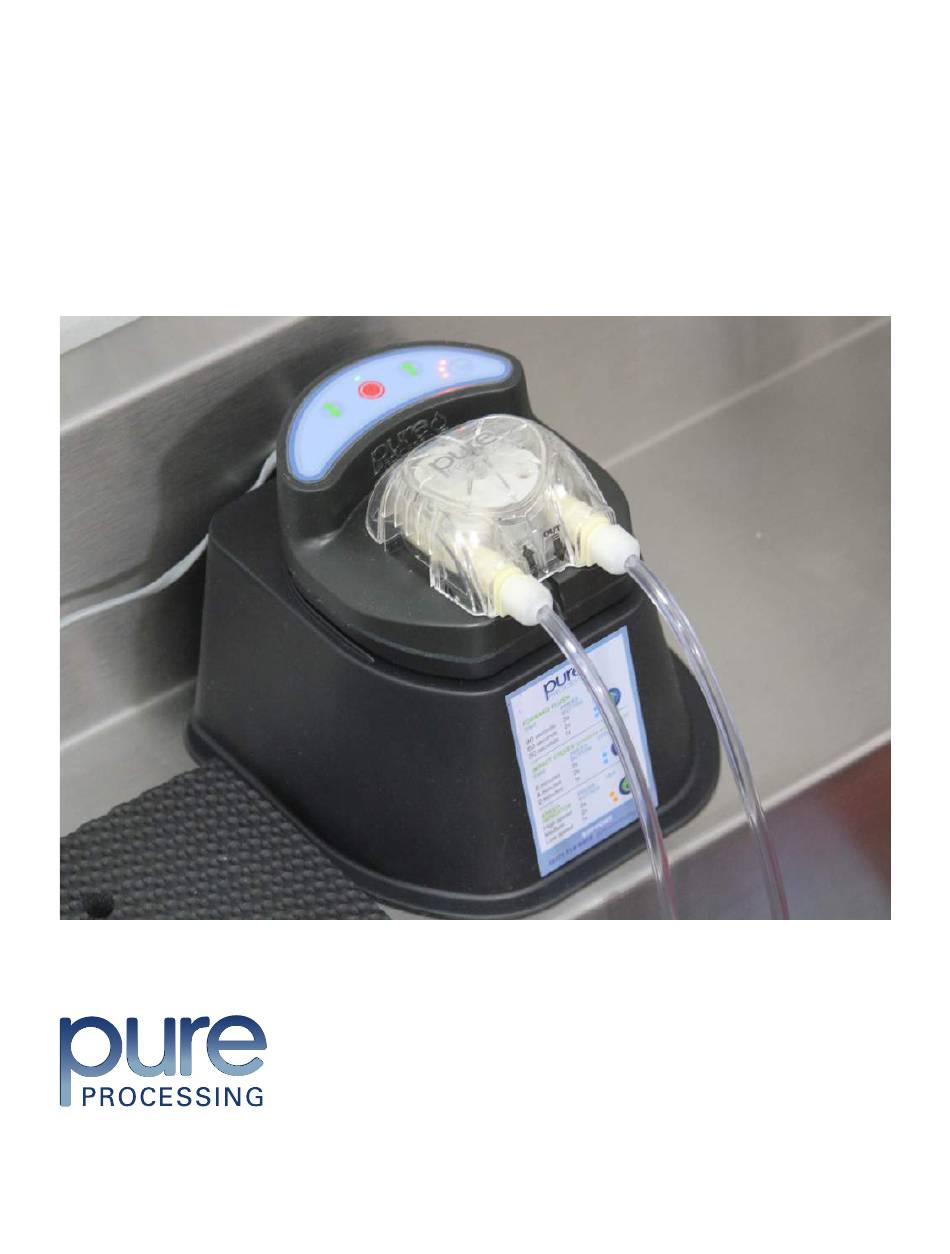

- Page 1 FlexiPump™ Independent Flushing System User Manual Pure Processing, LLC 470 Mission Street, Unit 2 Carol Stream, Illinois 60188 www.pure-processing.com Support 877-718-6868 Manual FPIFS 0001/September 2017...
-
Page 2: Table Of Contents
INSTALLATION: Set-up tube sets OPERATION: General guidelines for speed control OPERATION: Connecting devices to the FlexiPump system OPERATION: Connecting flexible endoscopes to the FlexiPump system OPERATION: PSI Settings OPERATION: General rules and guidelines for flexible endoscope speed control OPERATION: FlexiPump Cycles... - Page 3 It can be used independently or with a Pure Station™ Sink Insert, and has been fully tested for use with a wide variety of reusable lumened devices, including rigid and flexible endoscopes, minimally invasive surgical devices, ocular and robotic devices, and suction tips.
-
Page 4: Installation: Set-Up With Nest Accessory
Set-up: new FlexiPump Independent Flushing System Your FlexiPump system does not come with a tube set installed. To install your first tube set, please see the Maintenance section in this manual (page 12). ou can also visit our website for a video tutorial on how to install your tube sets. -
Page 5: Installation: Set-Up Horizontal Wall Mount
The nest accessory can be mounted on a wall or pegboard using the two through-holes in the back of the accessory. Simply hang the nest on a wall near a sink and insert the FlexiPump unit. Then plug the cord into an outlet. (Hardware not included.) Mounting holes FlexiPump™... -
Page 6: Installation: Set-Up Power Supply
Once your FlexiPump system has been installed in its preferred place, remove the black power cord from your FlexiPump box. Take the barrel end of the gray cord found at the back of the FlexiPump and insert the barrel end of the black power supply to the gray cord. Make sure there are no frays in the wires. -
Page 7: Installation: Set-Up Tube Sets
The drop-down tube on each new tube set is 30 inches long. If the tube is too long for your sink, it can be cut to shorten it. Each FlexiPump tube set comes with three (3) leads, each of which can be attached to an instrument. -
Page 8: Operation: Connecting Devices To The Flexipump System
OPERATION Connecting devices to the FlexiPump system Many lumened/channeled devices can be properly connected and flushed with the FlexiPump system. For devices with luer locks Twist the FlexiPump tube collar onto the device with a luer, until locked Flush the device following manufacturer’s... -
Page 9: Operation: Connecting Flexible Endoscopes To The Flexipump System
Directions may vary depending on the scope and the manufacturer. Cap off all unused tubes on the FlexiPump Tube Set. If there are two channels on the endoscope, place a FlexiPump end cap on the end of the third FlexiPump tube lead. -
Page 10: Operation: Psi Settings
(urology scopes and bronchoscopes, for example) require lower pressure. General rules and guidelines for flexible endoscope speed control There are three (3) tubes on each FlexiPump tube set. If any tubes are not in use, be sure they are secured with end caps provided in the tube set. - Page 11 CAUTION: Running the pump on high can create aerosols and deliver too much pressure to delicate devices. Use only for appropriate channels. The Impact cycle is used ONLY for devices that are clogged. The FlexiPump tube set must be Robotics: You can flush up to two ports at once, using our XL Slip Tip accessory.
-
Page 12: Maintenance: Decontaminating The Tube Set
Step 1 Wipe all external surfaces with a ready to use disinfectant, including the tubing, and allow them to air-dry. Step 2 Wipe the surfaces of the Nest accessory and/or Rail accessory (if used) and let them air-dry. FlexiPump™ Independent Flushing System User Manual © Pure Processing, LLC. 2017. All rights reserved. - Page 13 “forward flush” button and then proceed to push the cap down until it fastens into place properly. 877.718.6868 www.pure-processing.com PHONE FlexiPump™ Independent Flushing System User Manual © Pure Processing, LLC. 2017. All rights reserved.
- Page 14 Whenever you change a tube set, write your initials and expiration date on the back of the timestrip label. ® Inititals: Expiration Date: FlexiPump™ Independent Flushing System User Manual © Pure Processing, LLC. 2017. All rights reserved. 877.718.6868 www.pure-processing.com PHONE...
- Page 15 Conducting a Flow Validation Test The flow validation will test every speed on the FlexiPump: low, medium, and high for 30 seconds each to assure your FlexiPump is dispensing the right amount of liquid. We recommend running the flow validation test at least once a day.
-
Page 16: Troubleshooting
If there is no power, slightly turn the adapter to buttons don’t work engage the two and tighten. Repeat as necessary. Disconnect the power cord from outlet and from the FlexiPump unit. Recon- If it still doesn’t work, 3. Pump is not working nect the cord and plug in. -
Page 17: Replacement Parts
FLEXIPUM P REPLACEM ENT PARTS Item Product Code FXITS-0215psi6 FlexiPump™ Irrigation Tube Set Two-Lead, 15 psi or 30 psi; box of 6 FXITS-0230psi6 FXITS-0315psi6 FlexiPump™ Irrigation Tube Set Three-Lead, 15 psi or 30 psi; box of 6 FXITS-0330psi6 FlexiPump™ Power Supply FPPS-01 FlexiPump™... -
Page 18: Replacement Adapters
Rubber Cup Adapter RCA-01 Large Rubber Sealing Bridge RBLG-01 Small Sealing Bridge Rbsm-01 FlexiPump™ Ceramic Weight and Filter FPCW-01 FlexiPump™ Accessory Kit ACC-KIT TimeStrip™ Time Indicators TM-1M FlexiPump™ Independent Flushing System User Manual © Pure Processing, LLC. 2017. All rights reserved. -
Page 19: Additional Accessories
ADDITIONAL ACCESSORIES These products are available from Pure Processing, Inc. and are compatible for use with the FlexiPump system: Item Product Code PSCF-08 PureChannel™ Flush Instrument Channel Cleaner, 1 gallon size/32 oz. size PSCF-32oz PureChannel™ Flush Touch-less Auto Dispenser PCFTAD-01 Pro-Spray™... -
Page 20: Daily Assurance Log
Pure Processing Customer Support 1-877-718-6868 Month and Year Unit Number © Pure Processing, Inc. 2015. All rights reserved. FlexiPump™ Independent Flushing System User Manual; April 2015 FlexiPump™ Independent Flushing System User Manual © Pure Processing, LLC. 2017. All rights reserved.
