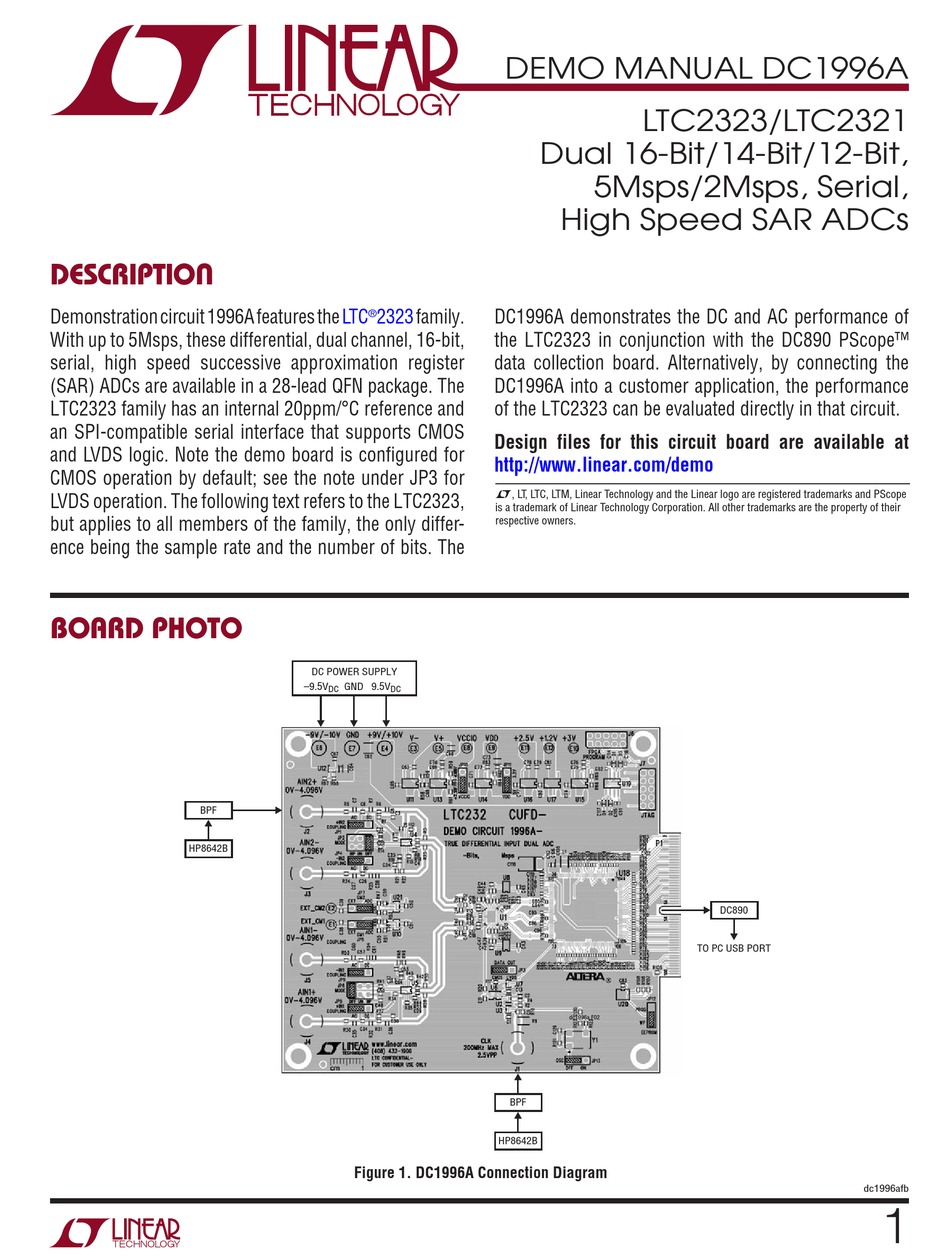

Linear Technology DC1996A-A Demo Manual

DESCRIPTION
Demonstration circuit 1996A features the
With up to 5Msps, these differential, dual channel, 16-bit,
serial, high speed successive approximation register
(SAR) ADCs are available in a 28-lead QFN package. The
LTC2323 family has an internal 20ppm/°C reference and
an SPI-compatible serial interface that supports CMOS
and LVDS logic. Note the demo board is configured for
CMOS operation by default; see the note under JP3 for
LVDS operation. The following text refers to the LTC2323,
but applies to all members of the family, the only differ-
ence being the sample rate and the number of bits. The
BOARD PHOTO
BPF
HP8642B
LTC 2323 family.
®
DC POWER SUPPLY
–9.5V GND 9.5V
DC DC
Figure 1. DC1996A Connection Diagram
DEMO MANUAL DC1996A
LTC2323/LTC2321
Dual 16-Bit/14-Bit/12-Bit,
5Msps/2Msps, Serial,
High Speed SAR ADCs
DC1996A demonstrates the DC and AC performance of
the LTC2323 in conjunction with the DC890 PScope™
data collection board. Alternatively, by connecting the
DC1996A into a customer application, the performance
of the LTC2323 can be evaluated directly in that circuit.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and PScope
is a trademark of Linear Technology Corporation. All other trademarks are the property of their
respective owners.
dc1996a F02
BPF
HP8642B
DC890
TO PC USB PORT
dc1996afb
1
