Zurik ZRK-EMLV2-30W-XXDC User Manual

Emlv 12v & 24v 30w led driver
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

INTRODUCTION
The Zurik® EMLV Dimmable Driver is the most versatile and efficient dimmable electronic driver for single color output LED strips. This driver has
a high power factor of 0.99, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting. Its high power
efficiency, wide voltage input, and quiet operation make the EMLV the professional's choice when it comes to flawless dimming.
SAFETY AND WARNINGS
•
Install in accordance with the National Electric Code (NEC) Article 450, and local regulations.
•
This product should be installed and serviced by a qualified electrician.
•
Install in a well ventilated area free from explosive gases and vapors.
•
Do not reverse the line voltage polarity upon installation. This will damage the driver.
•
Risk of electric shock: When used outdoors, install only on a circuit protected by a Class A GFCI.
•
Risk of fire: Special rated wire required for installations inside walls and building structures.
•
Consult a qualified electrician. Do not install in wet locations. Install only in dry or damp locations.
•
Only use with compatible dimmable LED fixtures.
•
Dimmer switches have minimum load requirements. Review the specifications of the compatible dimmer.
•
Modifying or disassembling this product beyond these instructions will void the product warranty.

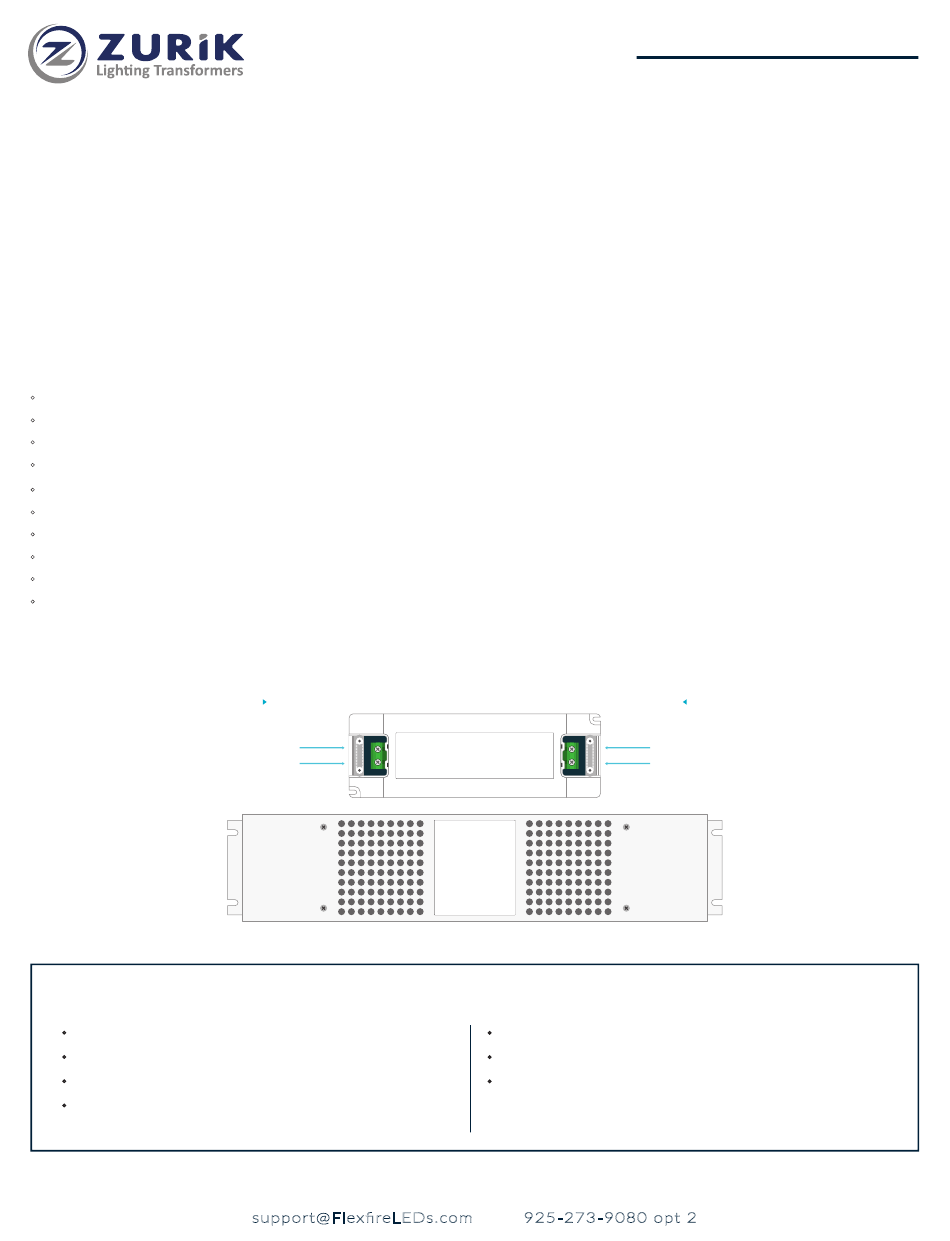

Input Power Terminal
Additional Features
• Constant voltage output
• Easy installation
• Cooling by free air convection
• Compatible with most forward phase, magnetic low voltage,
reverse phase, and electronic low voltage dimmers
ZRK- E M LV2-30W-XXDC
ZURIK® EMLV 12V & 24V 30W LED DRIVER
Low Voltage LED Driver
Live Channel
Neutral Channel
*
support@FlexfireLEDs.com
DRIVER
• Flicker-free dimming
• Suitable for LED lighting and sign applications among other uses
• *Junction box sold separately: H: 13 3/16" (334mm) W: 3 1/16"
(77mm) D: 1 7/16" (37mm)
925-273-9080 opt 2
ZURIK® EMLV LED Driver 30W
User Guide
Output Power Terminal
Positive Channel (+)
Negative Channel (-)
1
page
V.2018.08.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZRK-EMLV2-30W-XXDC and is the answer not in the manual?

Questions and answers

Summary of Contents for Zurik ZRK-EMLV2-30W-XXDC

  • Page 1 INTRODUCTION The Zurik® EMLV Dimmable Driver is the most versatile and efficient dimmable electronic driver for single color output LED strips. This driver has a high power factor of 0.99, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting. Its high power efficiency, wide voltage input, and quiet operation make the EMLV the professional’s choice when it comes to flawless dimming.
  • Page 2 User Guide • ZURIK® EMLV LED Driver 30W Details SKU: Working Humidity: ZRK-EMLV2-30W-XXDC 20 ~ 90%RH. Non condensing Ingress Protection: Storage Temp. and IP20 (indoor) -40°F ~ 176°F (-40°C ~ 80°C), Humidity: 10 ~ 95%RH Input Voltage: 100 - 277 VAC Temp.

  • Page 3: Derating Curve

    User Guide • ZURIK® EMLV LED Driver 30W DERATING CURVE Ambient Temperature (°C) To extend the power supply’s life, refer to the Derating Curve above and derate according to the ambient temperature YOU’LL NEED Small flat-head screwdriver (4mm) Wire strippers or scissors...

  • Page 4: Installation

    User Guide • ZURIK® EMLV LED Driver 30W INSTALLATION Always pre-test your LED setup prior to permanent installation. This will ensure all components work correctly. Be sure to check the wattage pull of the LED strip you’ve purchased so the driver isn’t overloaded (Max. 27W). Turn off the main AC breaker for the line you’ll be using before installing your EMLV driver.
  • Page 5 User Guide • ZURIK® EMLV LED Driver 30W Turn Power On Connect LED Wires Red (+) Black (-) Loosen the Output Power + and - screws, connect the negative (-) wire Turn the main breaker for the AC line back on to power your non-dim- from the LED strip into the - channel and tighten the screw.
  • Page 6 User Guide • ZURIK® EMLV LED Driver 30W Forward Model Number Input Phase Model Wattage Dimming Voltage or Reverse (Dimmer) Range Phase Nova T NTLV-600-277-WH 450W 277V 1-100% Forward Phase Skylark S-600PR-WH 600W 100-130V 0-100% Forward Phase Skylark SCL-153PR-WH 150W...

  • Page 7: Wiring Diagrams

    User Guide • ZURIK® EMLV LED Driver 30W WIRING DIAGRAMS • Using a single driver AC Dimmer Zurik EMLV Dimmable Power Supply Input Output Zurik EMLV Dimmable Home Automation Power Supply System Output Input • Using multiple drivers Zurik EMLV Dimmable...

  • Page 8: Troubleshooting

    User Guide • ZURIK® EMLV LED Driver 30W AC Dimmer Zurik EMLV Dimmable Power Supply Black Zurik EMLV Dimmable (Lutron & Clipsal Power Supply C-Bus System) Zurik EMLV Dimmable Power Supply N Blue DL/SL1 Zurik EMLV Dimmable Power Supply LUTRON...

  • Page 9: Warranty

    User Guide • ZURIK® EMLV LED Driver 30W WARRANTY Limited Warranty on Purchased Items: All products sold by Flexfire LEDs and shipped within the 50 United States, Canada, and Mexico come with a limited warranty. This limited warranty does not include product failures that are the result of: Not using a voltage regulated driver to connect the LED product or controls;...
