4 Foot Strip Ridge Vents are designed
for roofs with slopes of 3/12 to 16/12 pitches.
Intake at the eave vents should be equal or
exceed that of the ridge vent being installed.
VentSure
Ridge Vent is designed for residential
®
applications.

IMPORTANT NOTES

1. Before applying vent to architectural shingles,
leave felt long at ridge and fold back under vent or
caulk between low areas of shingle and fl ange of
vent, making sure you don't plug drain holes. This
will help prevent wind driven rain and snow from
entering the attic.
2. See instructions for cutting slot.
3. For structures with different ridge heights, be
sure to vent the higher ridge; it is also acceptable
to vent lower ridges with dormers.
4. For truss rafters, cut a 1¼ inch slot on each
side of the ridge starting a minimum of 6 inches
from the rake edge of the roof. For roofs with a
center pole, cut a 13/4 inch slot on each side of
the ridge starting a minimum of 6 inches from the
rake edge of the roof.
5. For best appearance, run VentSure
from end to end to give the roof a more attractive
appearance.
Installation Instructions
1. Using a chalk line, mark out 1¼ inch on both
sides of the ridge as a guide for cutting a slot in
the top of the ridge.
2. Starting 6 inches away from the rake edge
of the roof, cut a slot using a circular saw with
the blade set at a depth to cut through the wood
sheathing only. Remove the sheathing debris from
slot.
3. Center the vent over the opening that has been
cut in the ridge, ensuring the vent sits fl at on the
roof. Also ensure that the alignment tabs are
facing the opposite direction you will be installing
the next piece of ridge vent. For cold weather
installation leave a gap no bigger than ⅛ inch
to allow for expansion. Gaps larger than ⅛ inch
could lead to rain and snow entering the attic.
4. As you install the vents ensure each vent is
aligned, then nail in place using the nail holes
marked on each vent.
5. Using a utility knife cut the fi nal piece to a
length long enough so that it is fl ush with the
edge of the roof. Connect making sure that the
built-in end caps are exposed and nail in place.
VentSure
with Weather PROtector
INSTALLATION INSTRUCTIONS
^
®
4'
®
Ridge Vent
®
4-Foot Strip Heat & Moisture Ridge Vent
®

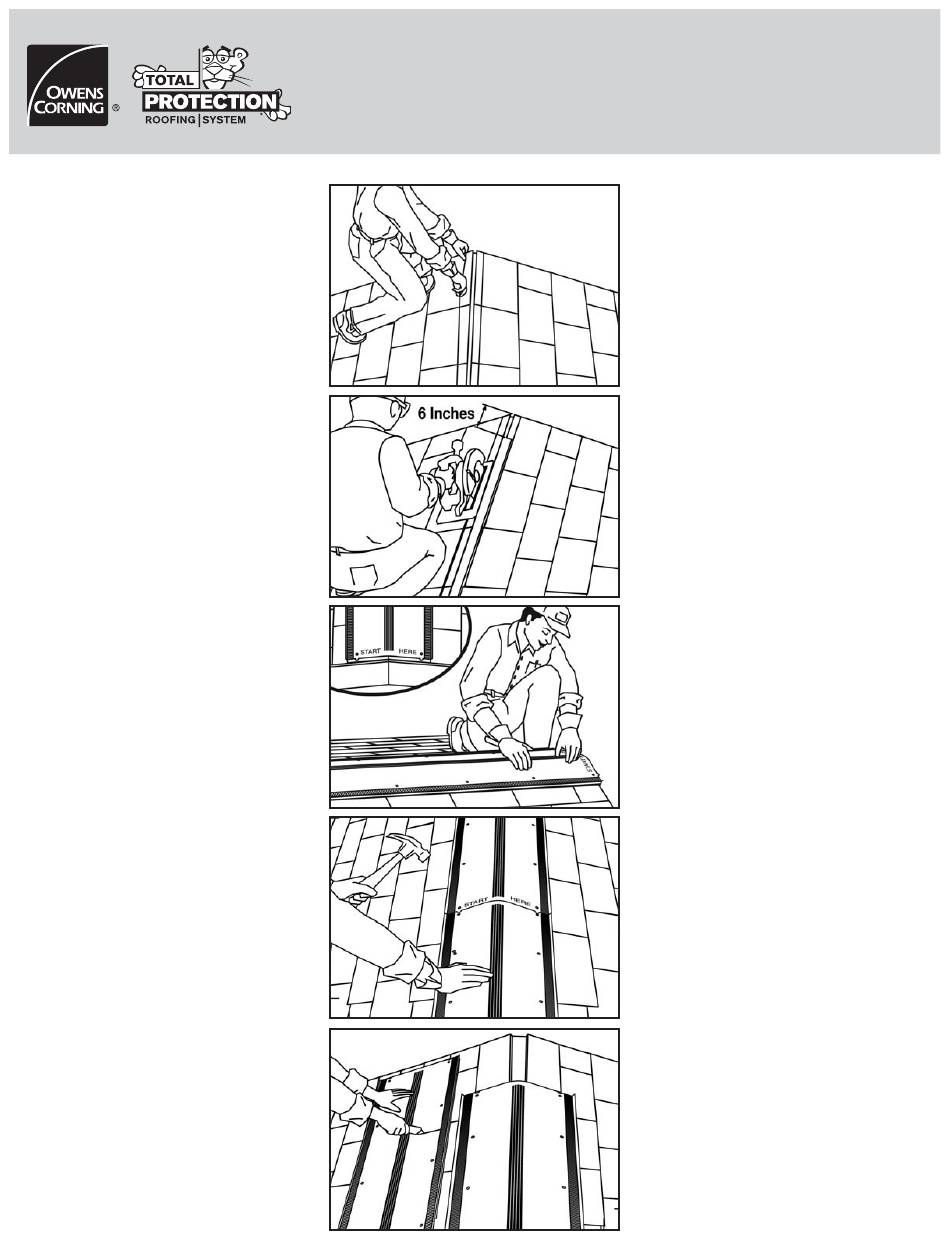

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Moisture Barrier
Instrucciones de instalación para
la ventilación de cumbrera para la
eliminación de calor y humedad en
tiras de 4 pies de Owens Corning
VentSure
®
Las ventilaciones de cumbrera VentSure
están diseñadas para pendientes con inclinaciones
de 3/12 a 16/12.
La entrada de aire de las ventilaciones de los
aleros debería ser igual o mayor a la de las
ventilaciones de cumbrera que se están instalando.
Las ventilaciones de cumbrera VentSure
diseñado para aplicaciones residenciales.
NOTAS IMPORTANTES
1. Antes de colocar la ventilación sobre tejas
arquitectónicas, deje un excedente de fi eltro sobre
la cumbrera y dóblelo introduciéndolo debajo
de la ventilación, o selle los espacios entre las
áreas bajas de la teja y el ala de la ventilación
asegurándose de no obstruir orifi cios de drenaje.
Esto ayudará a impedir que la lluvia y la nieve se
fi ltren al ático por la acción del viento.
2. Consulte las instrucciones para saber cómo
realizar el corte de la ranura.
3. Para estructuras con cumbreras de diferentes
alturas, asegúrese de ventilar la cumbrera más
alta; también es aceptable ventilar las cumbreras
inferiores con buhardillas.
4. En el caso de los cabrios del armazón, corte una
ranura de 1¼ pulgadas a cada lado de la cumbrera
a partir de 6 pulgadas, como mínimo, de la cornisa
del tímpano del techo. En el caso de techos con un
poste central, corte una ranura de 13/4 pulgadas
a cada lado de la cumbrera a partir de 6 pulgadas,
como mínimo, de la cornisa del tímpano del techo.
5. Para una mayor estética, coloque la ventilación
de cumbrera VentSure
®
de una punta a otra del
techo para darle un aspecto más atractivo.
Instrucciones de instalación
1. Trace una línea con tiza de modo de dejar 1¼
pulgadas de cada lado de la cumbrera y utilizarla
como guía para cortar una ranura en la parte
superior de la cumbrera.
2. A 6 pulgadas de la cornisa del tímpano del
techo, corte una ranura usando una sierra circular
con la cuchilla ajustada a una profundidad tal que
el corte atraviese solamente el revestimiento de
madera. Limpie los vestigios del revestimiento de
la ranura.
3. Centre la ventilación sobre la abertura realizada
en la cumbrera, asegurándose de que se apoye
totalmente sobre el techo. También, asegúrese de
que las lengüetas de alineación miren en dirección
opuesta a la cual usted instale el siguiente
segmento de ventilación de cumbrera. Para
instalaciones en climas fríos, deje un espacio no
®
®
de 4 pies
®
se han
