Summary of Contents for Electrothermal MH6616

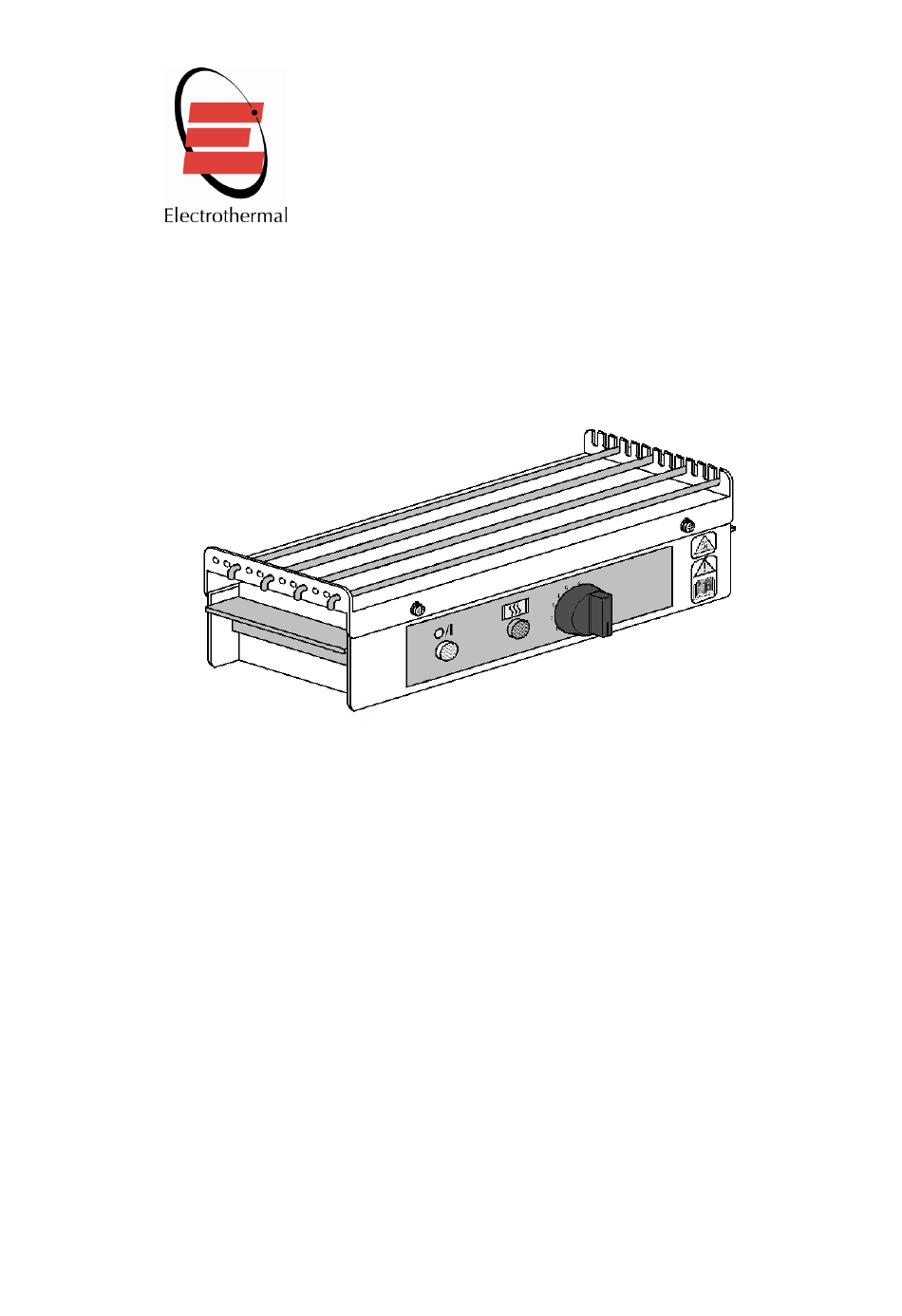

- Page 1 SLIDE DRYING BENCH MH6616 / X1 / X6 INSTRUCTION BOOK Page 1 of 20 M6627 Issue 7.0...
- Page 2 © The copyright of this instruction book is the property of Electrothermal. This instruction book is supplied by Electrothermal on the express understanding that it is to be used solely for the purpose for which it is supplied. It may not be copied, used or disclosed to others in whole or part for any purpose except as authorised in writing by Electrothermal.
- Page 3 INTRODUCTION 1.1. This Slide Drying Bench aids the preparation of microscope slides at the specimen mounting stage. Accepting up to 50 slides, it has the facility for drying slides in different orientations. The temperature control is provided by a built-in energy regulator controlling temperature up to 100C. The case and top are painted aluminium.
- Page 4 SYMBOLS AND USING THIS INSTRUCTION BOOK. 2.1. Throughout this Instruction book the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people.
-
Page 5: Safety Information
SAFETY INFORMATION. This product has been designed for safe operation when used as detailed in accordance with the Manufacture’s instructions. NOTE: Failure to use this equipment in accordance with the manufacture’s operating instruction may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee. - Page 6 The equipment is not spark, flame or explosion proof and has not been designed for use in hazardous areas in terms of BSEN 60079-14:1997. Keep flammable, low flash point substances away from the apparatus. Do not operate or handle any part of this product with wet hands.
-
Page 7: Unpacking And Contents
UNPACKING AND CONTENTS. Please check the contents of this carton against the diagram. Unit Serial Number Unit Model/Cat Number. For your future reference please record your products Serial and Model numbers. Page 7 of 20 M6627 Issue 7.0... -
Page 8: Installation
INSTALLATION. 5.1. Electrical safety and installation. 5.1.1. This equipment is designed to safe under the following conditions:- Indoor use. Altitude up to 2000 meters. Temperatures between 5C and 40C. Maximum relative humidity 80% for temperatures up to 31C decreasing linearly to 50% relative humidity at 40C. -
Page 9: Environmental Protection
Electrothermal products, or you may copy and enlarge from ‘Appendix A’ of the instruction book. Electrothermal is registered as Electrothermal Engineering Limited with the Environment Agency as a producer of WEEE through an authorised compliance scheme. -
Page 10: Product Operation
PRODUCT OPERATION This unit has been designed for safe operation when used as described in accordance with the manufactures instructions. Note: failure to use this equipment in accordance with the manufactures ‘Instruction book’ may compromise your basic safety protection afforded by this equipment and may invalidate the terms of the Warranty / Guarantee. -
Page 11: Technical Specification
TECHNICAL SPECIFICATION. 8.1. Specification. Maximum power consumption. 150 Watts Fuse rating (115V). 2.5 Amps (5 x 20mm dia Glass Quickblow) Fuse rating (230V). 1.25 Amps (5 x 20mm dia Glass Quickblow) Operational climatic conditions. Temperature range 5C to 40C. Humidity not to exceed 80%. Heating Element Silicone Rubber Mat Heater. -
Page 12: Maintenance
MAINTENANCE 9.1. General Information Unplug the unit from the mains input voltage supply and allow it to cool before undertaking any maintenance tasks. Maintenance should only be carried out under the direction of the Responsible Body, by a competent electrician. Failure to do so may result in damage to the product and in extreme cases be a danger to the end user. - Page 13 9.3.2. Unscrew and remove the screws retaining the top plate. Lift the top plate clear. 9.3.3. Hinge back the heater mat and insulation pressure plate, the insulation should be carefully removed and placed on the top plate. This will reduce the risk of damage to the insulation.
- Page 14 9.4. Spillage and Decontamination. In the event of spillage switch off and unplug this product from the mains electrical supply. Wipe off all excess liquid from the reaction block and surrounding area using an absorbent soft cloth. Allow sufficient time for any ingressed liquid to evaporate before commencing with use. If in doubt please consult Customer Support.
-
Page 15: Parts And Accessories
PARTS & ACCESSORIES. 230V 115V Heater Mat AZ9136 AZ9137 Insulating Pressure Plate AZ9138 AZ9138 Slide Support Rod Qty 4 AZ9139 AZ9139 Rubber Feet Qty 4 AZ9140 AZ9140 Neon Clear AZ9141 AZ9142 Neon Amber AZ9143 AZ9144 Handles Qty 2 AZ9145 AZ9145 Energy Regulator AZ9127 AZ9128... -
Page 16: Product Description
APPENDIX ‘A’. DECONTAMINATION CERTIFICATE. Electrothermal. Electrothermal House. Unit12A, Purdeys Way. Purdeys Industrial Estate. Rochford. Essex. SS4 1ND. Great Britain Phone:+44(0)1702 303350 Fax:+44(0)1702 468731. E-mail: info@electrothermal.com DECONTAMINATION CLEARANCE CERTIFICATE For the Inspection, Repair or Return of Medical, Laboratory or Industrial Equipment. - Page 17 11. CUSTOMER SUPPORT. For help and support in using this product, please contact at the following address. Electrothermal. Electrothermal House. Unit12A, Purdeys Way. Purdeys Industrial Estate. Rochford, Essex. SS4 1ND Great Britain. Tel +44(0)1702 303350 Fax+44(0)1702 468731 E-Mail: info@electrothermal.com Page 17 of 20...
- Page 18 NOTES Page 18 of 20 M6627 Issue 7.0...
- Page 19 Page 19 of 20 M6627 Issue 7.0...
-
Page 20: Ec Declaration Of Conformity
For the America’s and Canada, contact: Techne Incorporated, 3 Terri Lane, Suite 10 Burlington, NJ 08016 USA. Toll free:800-225-9243Tel: 609-589-2560 Fax: 609-589-2571 Email: labproducts@techneusa.com Http www.techneusa.com 2011 Electrothermal. All rights reserved. Printed in Great Britain Page 20 of 20 M6627 Issue 7.0...
