Summary of Contents for HDL HDL-MPS04-RF.18

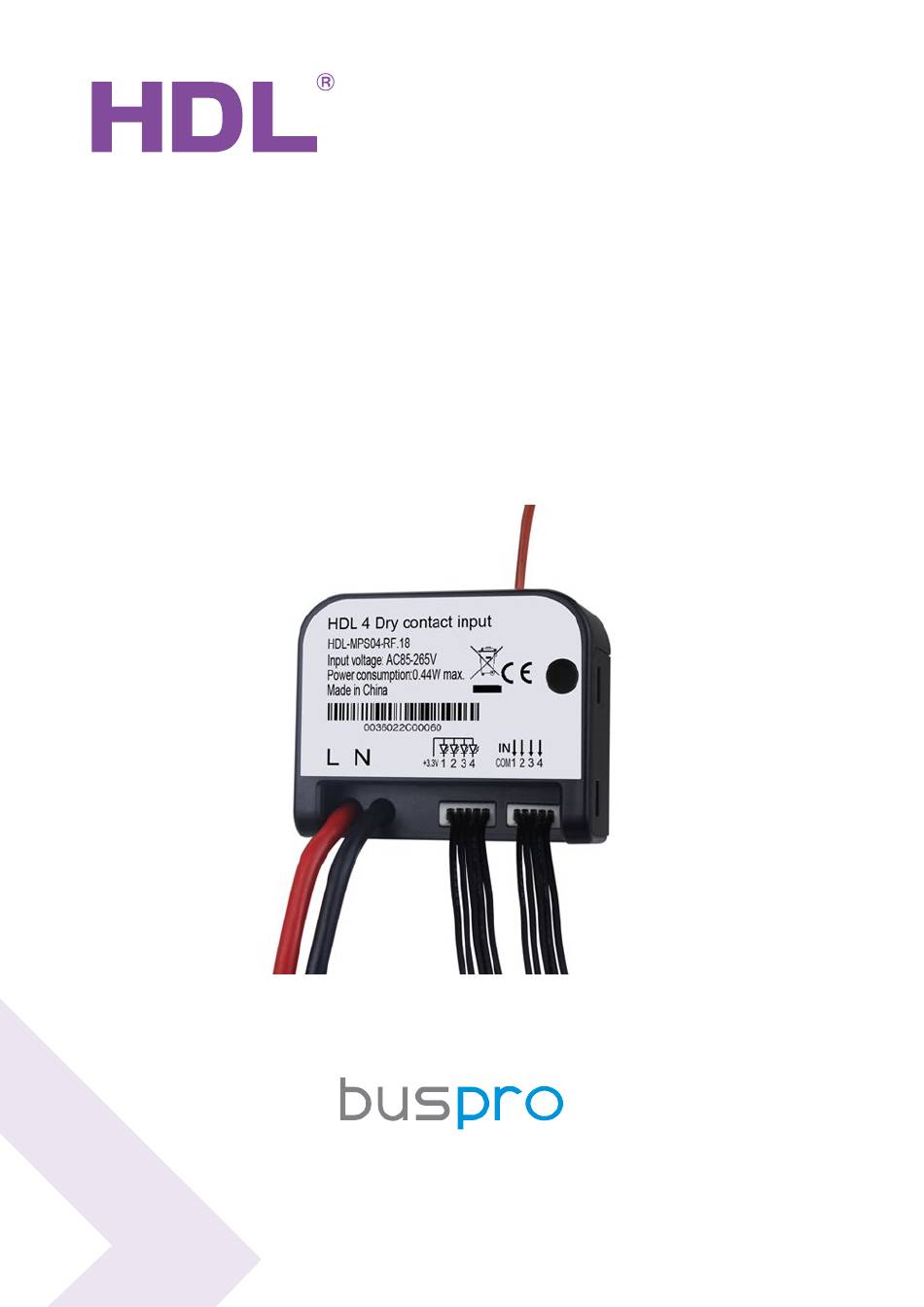

- Page 1 User Manual Wireless 4 channels Dry Contact HDL-MPS04-RF.18 www.hdlautomation.com...
- Page 2 User Manual HDL-MPS04-RF.18 Version Date Description V1.0 2015.09.06 Create new document Wireless 4 channels Dry Contact – User Manual...
-
Page 3: Table Of Contents
User Manual HDL-MPS04-RF.18 INDEX 1. Overview............................1 1.1 General Information......................1 1.2 Functionalities Description....................1 1.3 Device Description......................1 2. Safety Instructions........................2 3. Technical Data..........................2 4. Installation............................. 3 5. Software Configuration........................4 5.1 Wireless Setting via Mesh Gateway................4 5.2 Basic Information....................... 5 5.2.1 Change the ID of the device.................6... -
Page 4: Overview
User Manual HDL-MPS04-RF.18 1. Overview 1.1 General Information HDL-MPS04-RF.18 wireless dry contact module, it has 4 channels dry contact, can control target by switch. The module should work in conjunction with wireless gateway. 1.2 Functionalities Description 4 channels dry contact inputs, 4 channels LED outputs ... -
Page 5: Safety Instructions
User Manual HDL-MPS04-RF.18 2. Safety Instructions The screw down strength should not exceed 0.1Nm Mounting position: Indoor. Never let liquids get into the module, it will damage this device. 3. Technical Data Electric Parameters Input voltage AC85~265V, 50/60Hz Power consumption 0.44w max. -
Page 6: Installation
User Manual HDL-MPS04-RF.18 Storage temperature -20℃~+60℃ Storage relative humidity < 93% Approved RoHS Production Information Dimensions 44×36×17 (mm) Weight 25.5(g) Housing material Installation Wall box Protection degree IP20 Fire and null wire 1.5 mm² (the module provides 15cm wire) Stripping length 5~7 mm 4. -
Page 7: Software Configuration
User Manual HDL-MPS04-RF.18 5. Software Configuration 5.1 Wireless Setting via Mesh Gateway Before user can configure the wireless dimmer normally, need to set the wireless parameters for it via mesh gateway, and the mesh gateway needs to work in mesh mode. -
Page 8: Basic Information
7- Click ‘all Node Exit Setup’, then the gateway and the panel will exit the wireless setup mode. 8- Go to the HDL BUS setup tool’s main interface to search and add the wireless dry contact, then can start to configure it via the gateway. -
Page 9: Change The Id Of The Device
User Manual HDL-MPS04-RF.18 5.2.1 Change the ID of the device Every wireless device has one Subnet ID and one Device ID, the Device ID should be unique in its Subnet and the Subnet ID should be kept consistent with the Mesh Gateway (HDL-MCIP-RF.10). - Page 10 User Manual HDL-MPS04-RF.18 If “ Electrical switch ” is selected for this kind of switch, a momentary effect can be produced. Toggle Switch – It is bi-stable switch, you can set it on or off. Generally select “Mechanic switch” mode for this kind of switch.
- Page 11 This key mode is originally designed for retrofit project where the end-users want to implement HDL wireless system but they want to reserve the existing toggle buttons, the toggle buttons are to control one public area lighting (e.g., stair lighting) from multiple...
-
Page 12: Unqualifiedde
User Manual HDL-MPS04-RF.18 Connect the two toggle buttons to two different wireless dry contact channels Setting Select “Parallel switch” for both wireless dry contact channels. 5.3.3 Unqualifiedde Each channel can set the mode Switch mode: on/off control Dimmable increase: long press to dim up... -
Page 13: Dimming
User Manual HDL-MPS04-RF.18 5.3.5 Dimming Key no. : channel no./ switch no. Dimming value: Toggle- when turn on light, the brightness will go to 100% Memory- save the brightness, when turn on light, the brightness will go to last brightness before turn off 5.3.6 Target... -
Page 14: Low Limit
User Manual HDL-MPS04-RF.18 5.3.7 Low Limit Set the dimming lower limit. The Lower limit is useful if you would like to skip the low level segment and dim from a certain level, say 50%. You want to skip it because maybe lower than 50% is impractical for you or maybe the load quality is not so good and trembles when at low level segment. -
Page 15: Security Setting
User Manual HDL-MPS04-RF.18 5.4 Security Setting We can use channels of wireless dry contact to trigger security, like the window state, door state. If use wireless dry contact 1 to detect the door state for security, the setting steps as follow: a) Select ‘key 1’... -
Page 16: Online Upgrade
User Manual HDL-MPS04-RF.18 6. Online Upgrade For the online upgrade, there are two ways, automatic upgrade and manual upgrade. 6.1 Automatic Upgrade Upgrade steps: 1- Select the online wireless panel that you want to upgrade, click “Read Device Type” to check its chip type. -
Page 17: Manual Upgrade
User Manual HDL-MPS04-RF.18 6.2 Manual Upgrade For manual upgrade, the panel will enter the wireless setup mode, then the mesh gateway needs to enter the wireless setup mode also. Upgrade steps: 1- Press the ‘PROG’ button of wireless gateway 3 times continuously to enter the wireless setup mode. -
Page 18: Faq
User Manual HDL-MPS04-RF.18 7 FAQ 7.1 FAQ001 HDL-MPS04-RF.18 has indicators for four channels output, but where is the appropriate place to put those indicators? Some 3 party panel has a hold, can put the indicator of MPS04-FR.18 in the hold. -
Page 19: Note
User Manual HDL-MPS04-RF.18 8. Note ………………………………………………………………………………………………………. ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… ……………………………………………………………………………………………………… Wireless 4 channels Dry Contact – User Manual...
