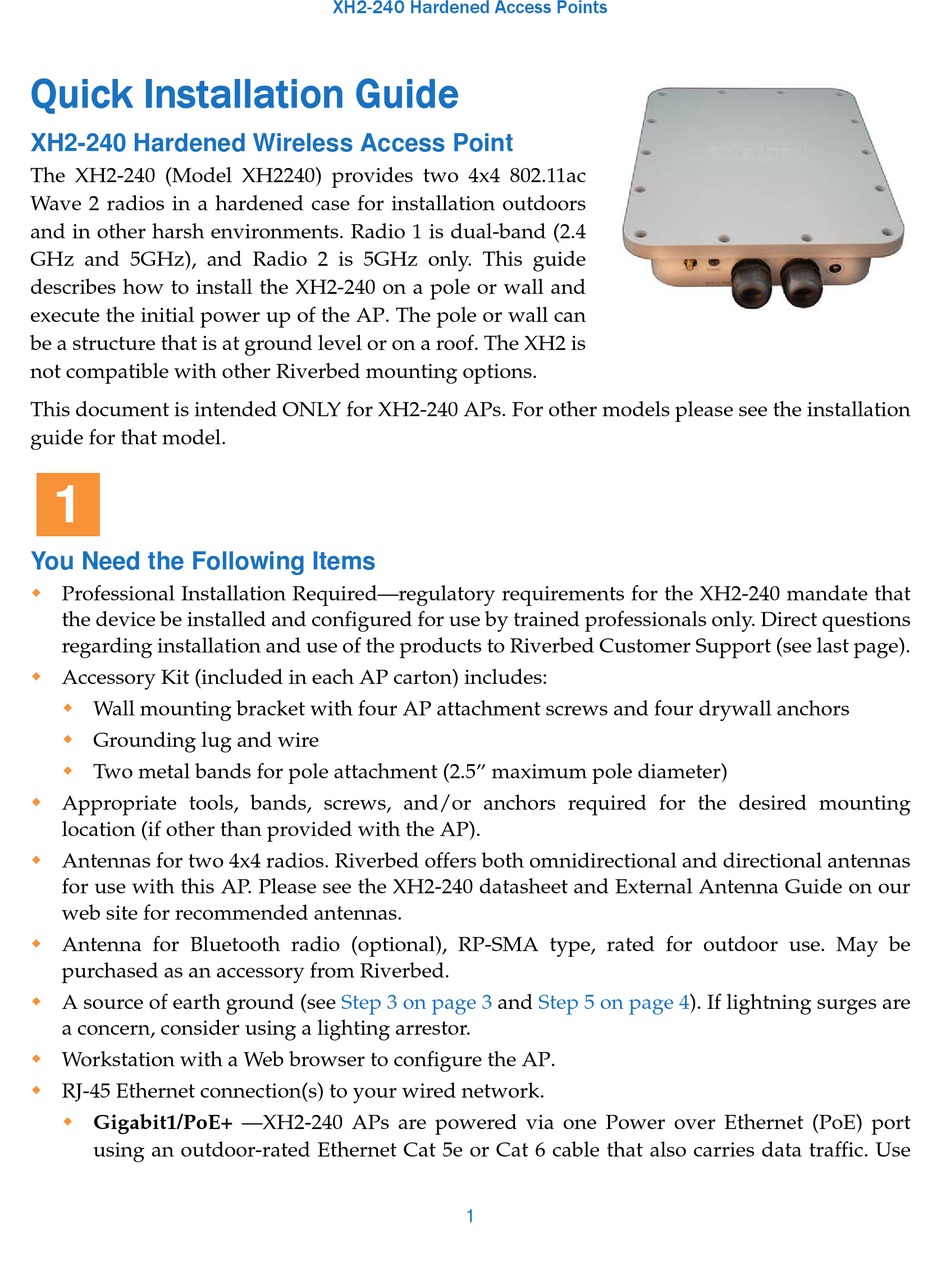

Quick Installation Guide
XH2-240 Hardened Wireless Access Point
The XH2-240 (Model XH2240) provides two 4x4 802.11ac
Wave 2 radios in a hardened case for installation outdoors
and in other harsh environments. Radio 1 is dual-band (2.4
GHz and 5GHz), and Radio 2 is 5GHz only. This guide
describes how to install the XH2-240 on a pole or wall and
execute the initial power up of the AP. The pole or wall can
be a structure that is at ground level or on a roof. The XH2 is
not compatible with other Riverbed mounting options.
This document is intended ONLY for XH2-240 APs. For other models please see the installation
guide for that model.
1
You Need the Following Items
Professional Installation Required—regulatory requirements for the XH2-240 mandate that
the device be installed and configured for use by trained professionals only. Direct questions
regarding installation and use of the products to Riverbed Customer Support (see last page).
Accessory Kit (included in each AP carton) includes:
Wall mounting bracket with four AP attachment screws and four drywall anchors
Grounding lug and wire
Two metal bands for pole attachment (2.5" maximum pole diameter)
Appropriate tools, bands, screws, and/or anchors required for the desired mounting
location (if other than provided with the AP).
Antennas for two 4x4 radios. Riverbed offers both omnidirectional and directional antennas
for use with this AP. Please see the XH2-240 datasheet and External Antenna Guide on our
web site for recommended antennas.
Antenna for Bluetooth radio (optional), RP-SMA type, rated for outdoor use. May be
purchased as an accessory from Riverbed.
A source of earth ground (see
a concern, consider using a lighting arrestor.
Workstation with a Web browser to configure the AP.
RJ-45 Ethernet connection(s) to your wired network.
Gigabit1/PoE+ —XH2-240 APs are powered via one Power over Ethernet (PoE) port
using an outdoor-rated Ethernet Cat 5e or Cat 6 cable that also carries data traffic. Use
XH2-240 Hardened Access Points
Step 3 on page 3
and
1
Step 5 on page
4). If lightning surges are
Advertisement
Table of Contents
Related Manuals for Riverbed XH2-240
Summary of Contents for Riverbed XH2-240
-
Page 1: Quick Installation Guide
(if other than provided with the AP). Antennas for two 4x4 radios. Riverbed offers both omnidirectional and directional antennas for use with this AP. Please see the XH2-240 datasheet and External Antenna Guide on our web site for recommended antennas. ... -
Page 2: Choose A Suitable Location
It is best to choose a location that has some protection from the sun. The maximum cable length between the XH2-240 and the RJ-45 Ethernet network is 100 meters. A PoE injector is not a repeater, so its location will not increase this distance. -
Page 3: 4A-Pole Mounting
XH2-240 Hardened Access Points Prepare the Mounting Location The installation must ensure that the AP is grounded to earth ground to dissipate any static electric charge that may develop due to wind. Determine a good electrical earth ground point near the AP mounting location. -
Page 4: 4B-Wall Mounting
XH2-240 Hardened Access Points Note the two additional flanges on the back of the AP, highlighted at right—these are provided for future third party mounting solutions. They are 4” apart (interior measurement). 4b—Wall Mounting Place the supplied wall bracket in the desired location with the flat side flush against the wall. -
Page 5: Riverbed Omnidirectional Antennas
“Bluetooth Antenna” on page 5 If you are not using one of our recommended antennas, the TX output power settings on the XH2-240 must be configured so that total radiated output power from the connected antennas meet all applicable regulatory requirements. -
Page 6: Connect The Ethernet Cable With The Waterproof Connector
XH2-240 Hardened Access Points Connect the Ethernet Cable with the Waterproof Connector NOTE: To disconnect the Ethernet ports at a later time, you must follow the procedure in Step 10 on page Bluetooth Status GIG1/POE GIG2 Reset Ethernet Ethernet Button... - Page 7 XH2-240 Hardened Access Points Unscrew the black GIG1/POE Ethernet connector from the bottom of the AP and disassemble it into the parts shown below, keeping the parts in their original order. Save the dust protector (shown on the left) in case you need to disconnect the Ethernet connection in the future.
- Page 8 XH2-240 Hardened Access Points Feed the Ethernet cable through the sealing collar and the strain relief. The strain relief’s open ribs should face the collar, as shown. Snap together the halves of the split rubber grommet over the cable.
-
Page 9: Connect The Antennas
Repeat for the GIG2 port, if you are using it. Connect the Antennas The XH2-240 has four male Type N connectors (ANT1-ANT4) for the antennas on each side of the AP, for a total of eight inputs. The antennas labeled IAP1 are for the 2.4GHzz/5GHz dual- band radio. - Page 10 If you are not using XMS, please see the Riverbed Wireless Access Point User's Guide for AOS to configure your AP manually via the Express Setup menu option. The User Guide is available from http://support.riverbed.com...
-
Page 11: Disconnecting An Ethernet Port
XH2-240 Hardened Access Points Disconnecting an Ethernet port Follow the directions below to avoid damage if you need to disconnect an Ethernet port. A small flathead screwdriver is required. Refer to the image on page Unscrew the sealing collar, and gently pull back the split grommet. -
Page 12: Physical/Environmental Specifications
XH2-240 Hardened Access Points Physical/Environmental Specifications Operating Temperature: -40 to +55°C / -40 to 131°F, 0-90% humidity, non-condensing. Dimensions: 11.75 x 8.75 x 3.75 in. / 29.8 x 22.2 x 9.5 cm, including the Ethernet connectors at the bottom. - Page 13 Riverbed equipment. Additionally, verify that the ambient operating temperature does not exceed 55°C. Software used by the Access Points (APs) is covered by the Riverbed Software License and Product Warranty Agreement. Non-Modification Statement: Unauthorized changes or modifications to the device are not permitted.
- Page 14 WARNING: Ultimate disposal of this product should be handled according to all national laws and regulations. WARNING: Incorrect installation of Riverbed Access Points may invalidate FCC, CE mark, or other regulatory compliance approvals. Customers are responsible for any legal violations from operation of un-approved equipment or incorrect installation.
-
Page 15: Wi-Fi Alliance Certification
XH2-240 Hardened Access Points EXTERNAL ANTENNAS WARNING: In order to comply with radio frequency (RF) exposure limits, the antennas for this product should be positioned no less than 31 cm from your body or nearby persons. WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. - Page 16 The FCC with its action in ET Docket 96-8 has adopted a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified equipment. When used with Riverbed-approved antennas, Riverbed Wireless products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper installation of this radio according to the instructions found in this manual will result in user exposure that is substantially below the FCC recommended limits.
-
Page 17: Industry Canada Statements And Warnings
XH2-240 Hardened Access Points included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Antenna Antenna Type Model Number Remark Gain (dBi) Omni-directional Antenna EHS1GA260A 2.4GHz, 5GHz... - Page 18 (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Riverbed Access Points are certified to the requirements of RSS-247. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations.
-
Page 19: Radio Equipment Directive (Red) 2014/53/Eu Compliance Information
EU Directive 2014/53/EC. This declaration is only valid for configurations (combinations of software, firmware and hardware) provided and/or supported by Riverbed Inc. The use of software or firmware not supported/provided by Riverbed Inc. may result that the equipment is no longer compliant with the regulatory requirements. - Page 20 XH2-240 Hardened Access Points Español [Spain] Este equipo cump le con los requisitos esenciales asi como con otras disposiciones de la Directiva 2014/53/ CE. Ελληνυκη [Greek] Αυτόζ ο εξοπλτσμόζ είναι σε συμμόρφωση με τιζ ουσιώδειζ απαιτήσειζ και ύλλεζ σχετικέζ διατάξειζ τηζ Οδηγιαζ 2014/53/EC. Français [French] Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 2014/53/EC. ĺslenska [Icelandic] Þetta tæki er samkvæmt grunnkröfum og öðrum viðeigandi ákvæðum Tilskipunar 2014/53/EC. Italiano [Italian] Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 2014/53/CE. Latviski [Latvian] Šī iekārta atbilst Direktīvas 2014/53/EK būtiskajā prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šis įrenginys tenkina 2014/53/EB Direktyvos esminius reikalavimus ir kitas šios direktyvos nuostatas. Nederlands [Dutch] Dit apparant voldoet aan de essentiele eisen en andere van toepassing zijnde bepalingen van de Richtlijn 2014/53/EC. Malti [Maltese] Dan l‐apparant huwa konformi mal‐htigiet essenzjali u l‐provedimenti l‐ohra rilevanti tad‐Direttiva 2014/53/EC. Margyar [Hungarian] Ez a készülék teljesiti az alapvetö követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket. Norsk [Norwegian] Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU‐direktiv 2014/53/EF. Polski [Polish] Urządzenie jest zgodne z ogólnymi wymaganiami oraz sczególnymi mi warunkami określony mi Dyrektywą. UE:2014/53/EC. Portuguès [Portuguese] Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC. Slovensko [Slovenian] Ta naprava je skladna z bistvenimi zahtevami in ostalimi relevantnimi popoji Direktive 2014/53/EC. Slovensky [Slovak] Toto zariadenie je v zhode so základnými požadavkami a inými prislušnými nariadeniami direktiv: 2014/53/EC.
- Page 21 Safety: EN 50385 RF Exposure: EN 62479 CE Marking: For the Riverbed Wireless Access Point, the CE mark and Class-2 identifier opposite are affixed to the equipment and its packaging: WEEE Compliance: Natural resources were used in the production of this equipment.
-
Page 22: International (Non-Eu) Compliance Information
XH2-240 Hardened Access Points The requirements for any country may change at any time. Riverbed recommends that you check with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LANs. The following countries have additional requirements or restrictions... - Page 23 A minimum separation distance of 31 cm between the antenna and all persons is required during normal operation. Only antennas recommended by Riverbed for use with the product should be installed. The use of any other antennas may cause damage to the access points or violate regulatory emission limits and will not be supported by Riverbed.
- Page 24 Industry Canada Guidelines for Exposure to Radio Waves The Riverbed Access Points include radio transmitters and receivers. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) as...
-
Page 25: Customer Support
Cellular Telecommunications Association at this URL: www.wow-com.com The Mobile Manufacturers Forum at this URL: www.mmfai.org Customer Support The Riverbed Customer Support Website provides online documents and tools for troubleshooting and resolving technical issues with Riverbed products and technologies. - Page 26 XH2-240 Hardened Access Points Access to all tools on the Riverbed Customer Support Website requires a login user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL: http://support.riverbed.com...
