Summary of Contents for KRAFTWERK 38198

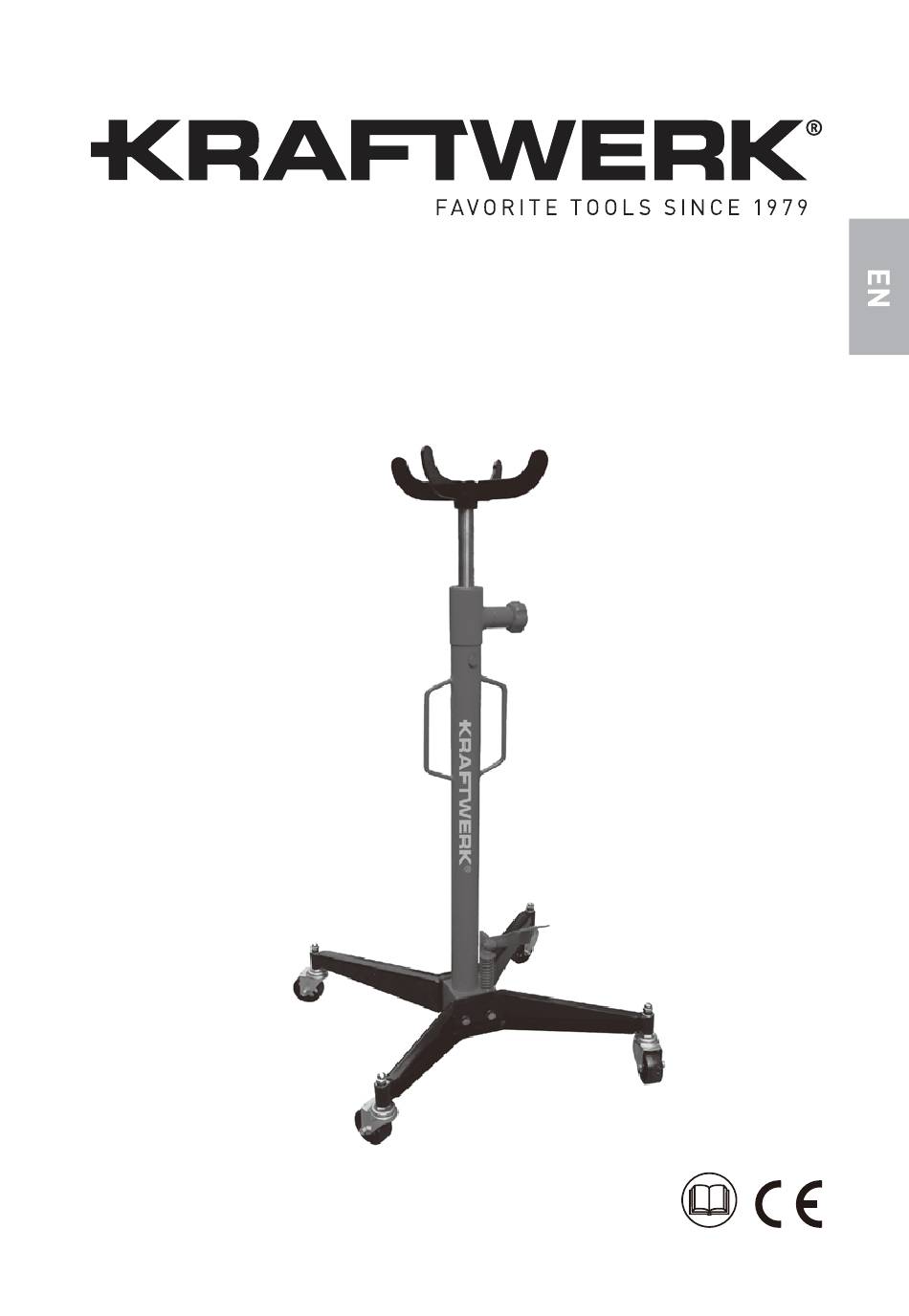

- Page 1 Instruction Manual Transmission jack Art. 38198 0.5 T...
- Page 2 It can be used when assembling and disassembling the removal parts, structal parts, which need be lifted, descended and transported. It's the ideal tool for assem bling and repairing in motor shop, mobile garage. Main Specifications Art. 38198 Rated Load: 500 kg Min. Height of Saddle: 1135 mm Max. Height of Saddle: 1950 mm N.W.: 27.7 kg...
- Page 3 Part list Description Description Description Pedal Seal washer Cylinder Roller Base Dust ring Snap ring 12 Perforation nut Y-Ring Pin spindle Subulate spring Small cap Spring washer 16 O-Ring Steel ball 9.0000 G200 Spring washer Piston rod Steel ball 6.0000 G200 Pump core Spring washer Cylinder seal washer...
- Page 4 CUSTOMER SERVICES Contact your local importer of your specialized dealer to obtain address of our service department. KRAFTWERK Europe AG KRAFTWERK Sàrl. Mettlenbachstrasse 23 25, rue du Stade FROM DATE OF PURCHASE RECEIPT CH-8617 Mönchaltorf...
