Summary of Contents for Branick Industries, Inc. 5500

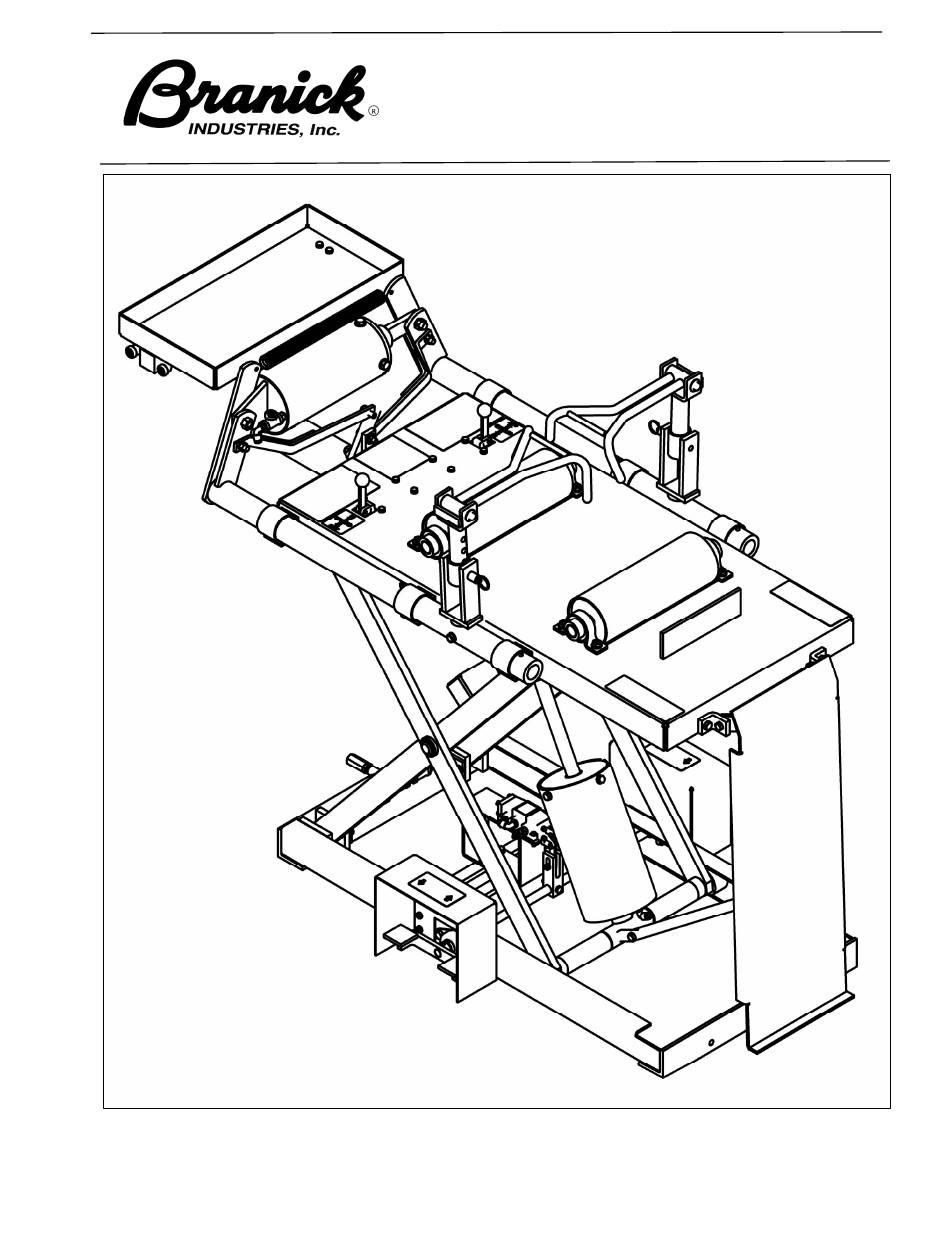

- Page 1 MODEL 5500 Installation, Operation Tire Repair and Repair Parts Station Information Branick Industries, Inc. • 4245 Main Ave • P.O. Box 1937 • Fargo, North Dakota 58103 P/N: 81-0047C...
-
Page 2: Safety Instructions
TABLE OF CONTENTS _______________________________________________________ SAFETY INSTRUCTIONS DEFINITIONS INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS MAINTENANCE INSTRUCTIONS REPAIR PARTS REPAIR PARTS LIST WARRANTY SAFETY INSTRUCTIONS _____________________________________________________ § NEVER allow unauthorized personnel to operate this product. § NEVER use this product for anything other than its intended use. THOROUGHLY train new employees in the proper use and care of this product. - Page 3 Tighten nylon lock nuts enough to allow free rotation at pivot points (see page 2) 2) Position the Model 5500 on a solid level floor leaving a minimum of 36 inches of clearance on operation sides and 24 inches of clearance on valve tray side.
- Page 4 REPAIR PARTS __________________________________________________________ Main Assembly...
- Page 5 DESCRIPTION ITEM PART NO. 01-0179 CYLINDER, 5-1/4" LIFT 01-0182 ARM, OUTSIDE 01-0183 ARM, INSIDE 01-0201 HOSE ASS'Y, SHORT 03-0036 LINK, PIVOT 03-0106 PIVOT PIN 03-0107 PIVOT PIN 03-0108 ROLLER ROD 03-0243 FRAME, BASE 03-0247 SPREADER PLATFORM 03-0248 ARM, FRONT POWER 03-0249 ARM, REAR POWER 03-0250...
-
Page 6: Lift Cylinder Assembly
DESCRIPTION ITEM PART NO. 73-0607 ANCHOR 73-0661 PIN, STOP 73-0743 BRACKET, RAMP 73-0744 MANIFOLD 74-0076 SLEEVE, CYLINDER SHAFT 107-020 BEARING, PILLOW BLK 108-057 WASHER, 3/8 INT TOOTH LOCK 108-067 WASHER, 5/16 INT TOOTH 110-011 TENSION SPRING 110-065 SPRING, CPRSN 900-187 4-1/2"... - Page 7 SPREAD CYLINDER ASSEMBLY ITEM QTY PART NO DESCRIPTION 950-194 CYLINDER WELDMENT 950-195 PISTON & ROD ASS'Y 098-327 COVER PLATE 108-038 7/16 WASHER 028-005 7/16-14 x 3/4 HHC SCREW 041-202 ROD SEAL 61-0028 QUAD RING SEAL 11-0065 NYLON WEAR STRIP...
- Page 8 PNEUMATICS ASSEMBLY...
- Page 9 ITEM QTY PART NO DESCRIPTION 01-0199 VALVE SUB-ASS'Y 01-0200 LONG HOSE ASS'Y 01-0201 SHORT HOSE ASS'Y 03-0306 PEDAL WELDMENT 03-0307 VALVE MOUNT 028-012 5/16-18 x 3/4 HHC SCREW 028-078 CAPSCREW, 1/4 NC X 1-1/2 028-133 SCREW, 3/8 NC X 3/4 HHC 028-148 1/4 NC X 1/2 TAPPING SCREW 028-161...
- Page 10 NOTES:...
- Page 11 NOTES:...
-
Page 12: Commercial Warranty
COMMERCIAL WARRANTY This product is warranted by BRANICK INDUSTRIES, INC. to the original user-owner against defective materials or workmanship for a period of one year from the date of delivery. During the warranty period, product found to be defective will be repaired or replaced at, BRANICK INDUSTRIES, INC.'s option, without charge.
