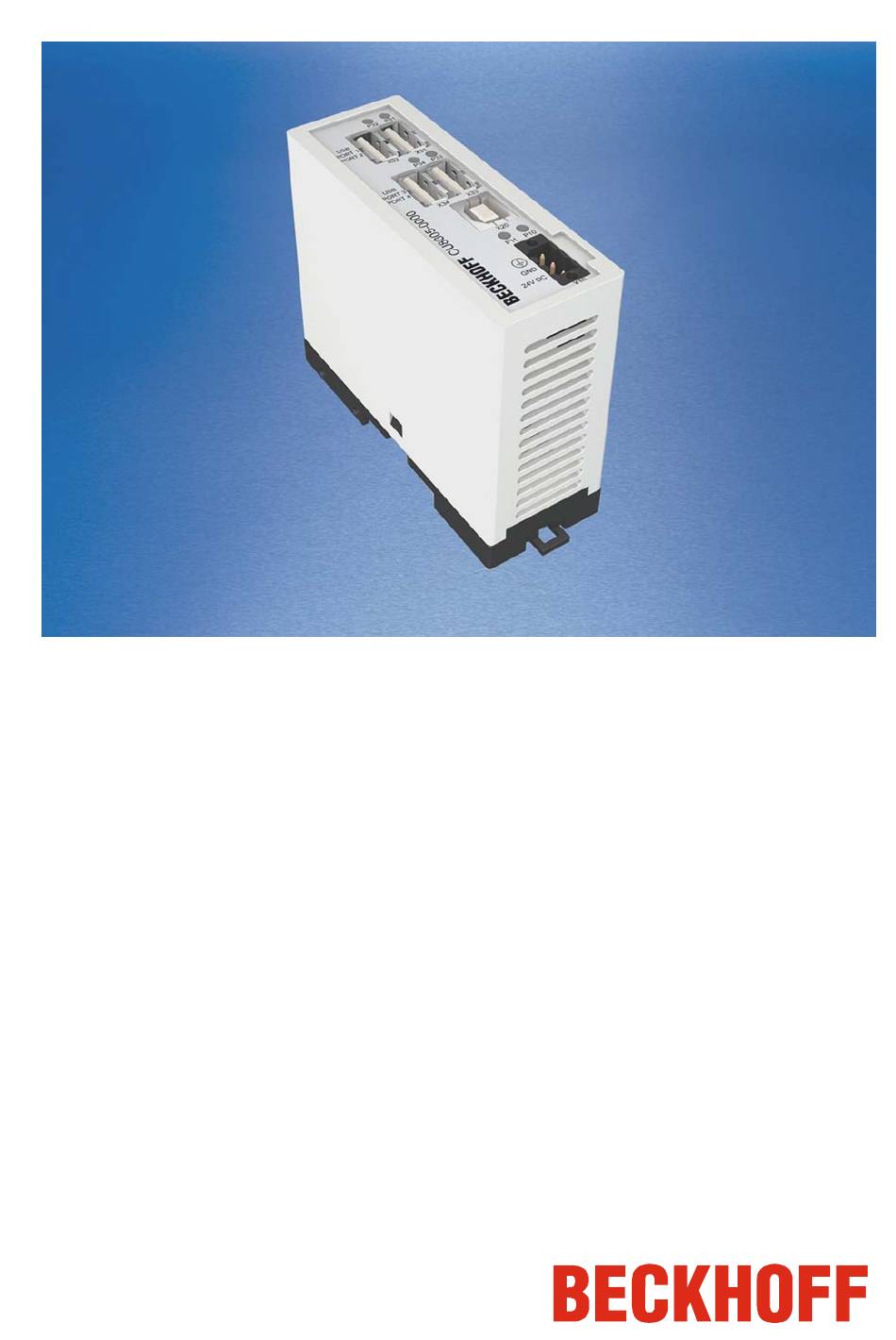

- Page 1 Installation- and Operating instructions for CU8005-0000 4-Port USB 2.0 Hub Version: 1.3 Date: 2018-04-27...
-
Page 3: Table Of Contents
Transport and Unpacking 3.1.1 Transport 3.1.2 Unpacking Mounting/ Demounting Connecting devices 3.3.1 Mounting power supply connector 3.3.2 Connecting cables 4 Operation Maintenance 4.1.1 Cleaning 4.1.2 Maintenance Shutting down 4.2.1 Disposal 5 Dimensions 6 Technical Data 7 Appendix Beckhoff Support and Service CU8005-0000... - Page 4 Table of contents 7.1.1 Beckhoff branches and partner companies 7.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approval for USA FCC Approval for Canada CU8005-0000...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply. CU8005-0000... -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 1.2.2 Operator’s obligation to exercise diligence The operator must ensure that •... -
Page 7: Product Description
2 Product Description 2.1 Product Overview The CU8005-0000 Beckhoff USB hub offers 4 USB downstream ports (type A). It can be used universally in automation and office applications. The hub meets the special requirements of industrial applications through several outstanding features: •... -
Page 8: Connections
2.2 Connections 2.2.1 Power Supply The USB hub CU8005-0000 requires a 24 V supply for it’s operation. The connection is made by means of the terminal X10, labeled 24 V. This supply feeds the hub electronics and, over the USB downstream ports, the connected USB devices (5 V ). -
Page 9: Data Connections
USB type A (input). The pins are described below: USB Typ B Port (X20) (standard cable) Assignment Data - Data + Shield Shield USB Typ A Port (X31, X32, X33, X34) (standard cable) Assignment Data - Data + shield Shield CU8005-0000... -
Page 10: Led-Diagnostic
Error condition e.g. overcurrent (port current > 1 A or short circuit) blinking red hardware attention USB Port 4 port not operational shining green port fully operational blinking green software attention shining red Error condition e.g. overcurrent (port current > 1 A or short circuit) blinking red hardware attention CU8005-0000... -
Page 11: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CU8005-0000... -
Page 12: Mounting/ Demounting
Installation 3.2 Mounting/ Demounting The USB hub CU8005-0000 can be snapped onto a 35 mm mounting rail conforms to EN 50022: To release the CU8005-0000 from the mounting rail: 1. first pull the lug at the bottom of the hub downwards by using a screw driver (1) 2. -
Page 13: Connecting Devices
• Switch off all the devices that are to be connected • Disconnect all the devices that are to be connected from the power supply • Connect all the cables between the CU8005-0000 and the devices that are to be connected • Reconnect all devices to the power supply. -
Page 14: Operation
The device can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. 4.1.2 Maintenance The CU8005-0000 USB hub is maintenance-free. 4.2 Shutting down 4.2.1 Disposal Observe national electronics scrap regulations Observe the national electronics scrap regulations when disposing of the device. -
Page 15: Dimensions
The product is characterized by small overall installed size. With a height of 100 mm, the module dimensions exactly match those of the Beckhoff Bus Terminals. Together with the lowered connector surfaces, this means that it can be used in a standard terminal box with a height of 120 mm... -
Page 16: Technical Data
Technical Data 6 Technical Data Product name CU8005-0000 Number of USB type B ports (upstream) Number of USB type A ports (downstream) Supported standard USB 2.0 Supported baud rates 480 Mbit, 12 Mbit, 1.5 Mbit Output current per port up to 1.0 A (at 5 V) -
Page 17: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 18: Approvals For Usa And Canada
Technical modifications to the device may cause the loss of the FCC approval. Note 7.4 FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. CU8005-0000...
