TMAC70 Hand-Held Control Head
Installation Instructions
Introduction

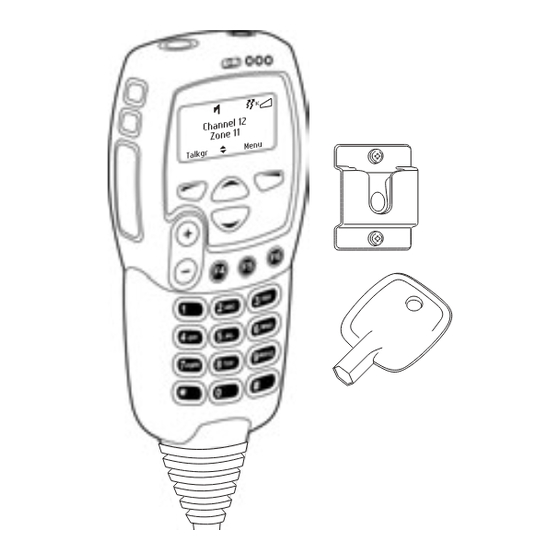

The TMAC70 is a hand-held control head
for TM9100 radios that enables the user to operate
the radio at a distance from the radio body.
C h a n n e l 12
Z o n e 11
The hand-held control head plugs into one of the
M en u
Ta lk gr
RJ45 sockets on the TMAC34-1T remote control
head. The TMAC34-1T remote control head is
installed as part of the TMAA03-08 enhanced
remote kit.
A TMAA10-03 remote speaker (for 25W radios) or
TMAA10-06 remote speaker (for 40/50W radios)
is required when a hand-held control head is used.
Note:
The hand-held control head cannot be used
with the TMAA03-25 remote kit.
Operation
The keys and controls work in the same way as those on the standard control head,
with the exception of the PTT and volume up and down keys. The hand-held
control head also has two additional function keys.
Turning the radio on
on/off key
Press either the on/off key or the PTT key.
Turning the radio off
Press the on/off key for about half a second.
PTT key
Adjusting the volume
+
Press the
key to increase the speaker volume and
volume
_
the
key to decrease the volume.
402-00042-00
www.taitworld.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tait TMAC70
Summary of Contents for Tait TMAC70

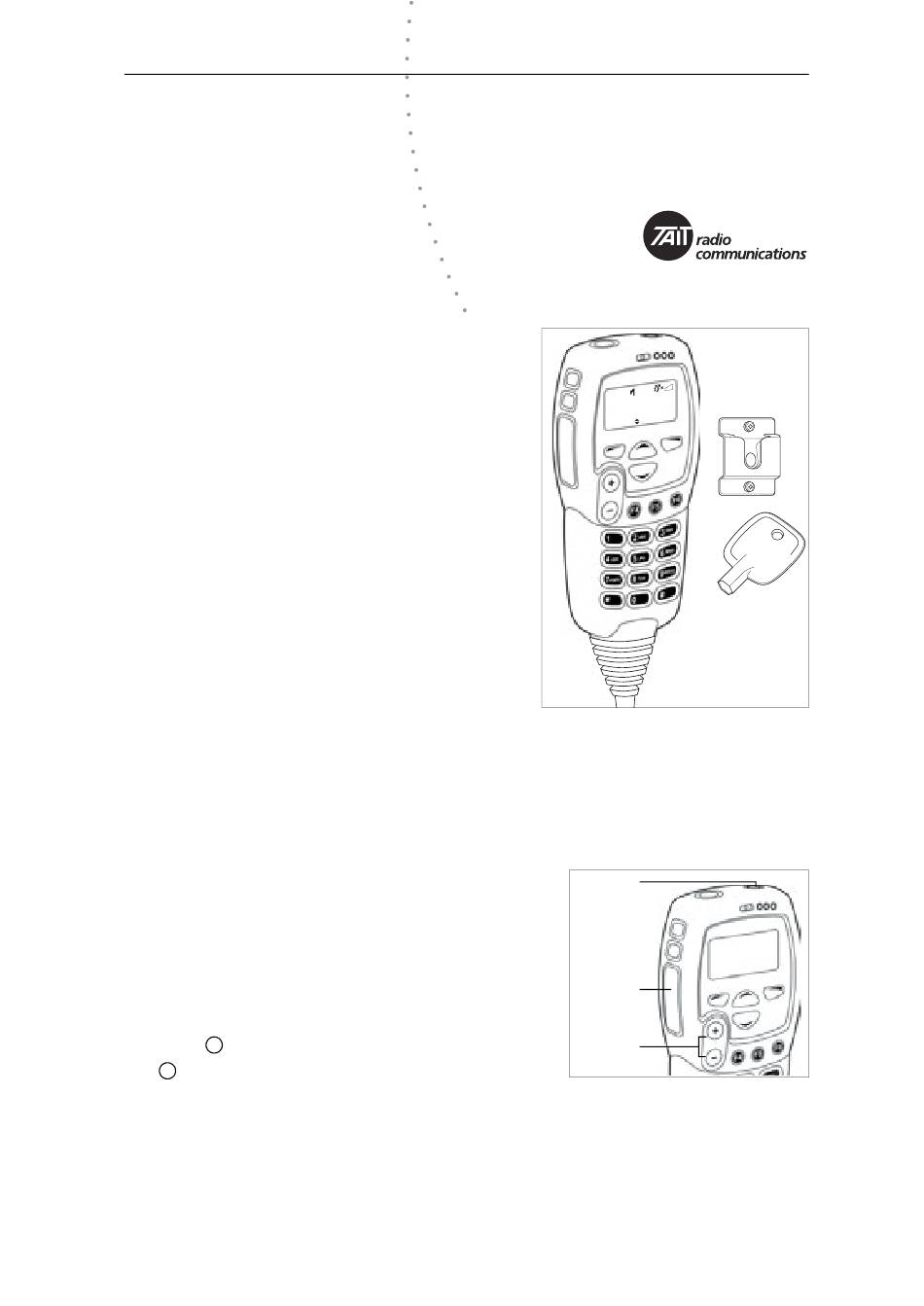

- Page 1 TMAC70 Hand-Held Control Head Installation Instructions Introduction The TMAC70 is a hand-held control head for TM9100 radios that enables the user to operate the radio at a distance from the radio body. C h a n n e l 12...
- Page 2 Note: The radio must be programmed with the hand-held control head installed. 1. Use the tool provided in the TMAC70 kit or an 8 mm AF Allen key to remove the rear programming connector cover. 2. Connect a PC to the programming connector and use the TM9100/TP9100 programming application to program the radio.
