ALURAD Atlantis Directions For Mounting And Use

P e r f e c t R a d i a t o r
DIRECTIONS FOR MOUNTING AND USE
70 mm
h-220
h
135 mm
(n-3)x80 mm
y
h= Radiator height (mm)
e.g. For atlantis 390, h= 390 mm
For Atlantis 450, h=450 mm
n= Number of radiator columns
e.g. For a radiator with 10 columnsi n= 10
y= Radiator height from the floor (min. 50 mm)
Note: For models with integrated valve,
the center measurement shall be (n-4) x 80 mm
(n-3)x80 mm
Bracket
1st Hole
66
2nd Hole
Radiator
Hanger
Element

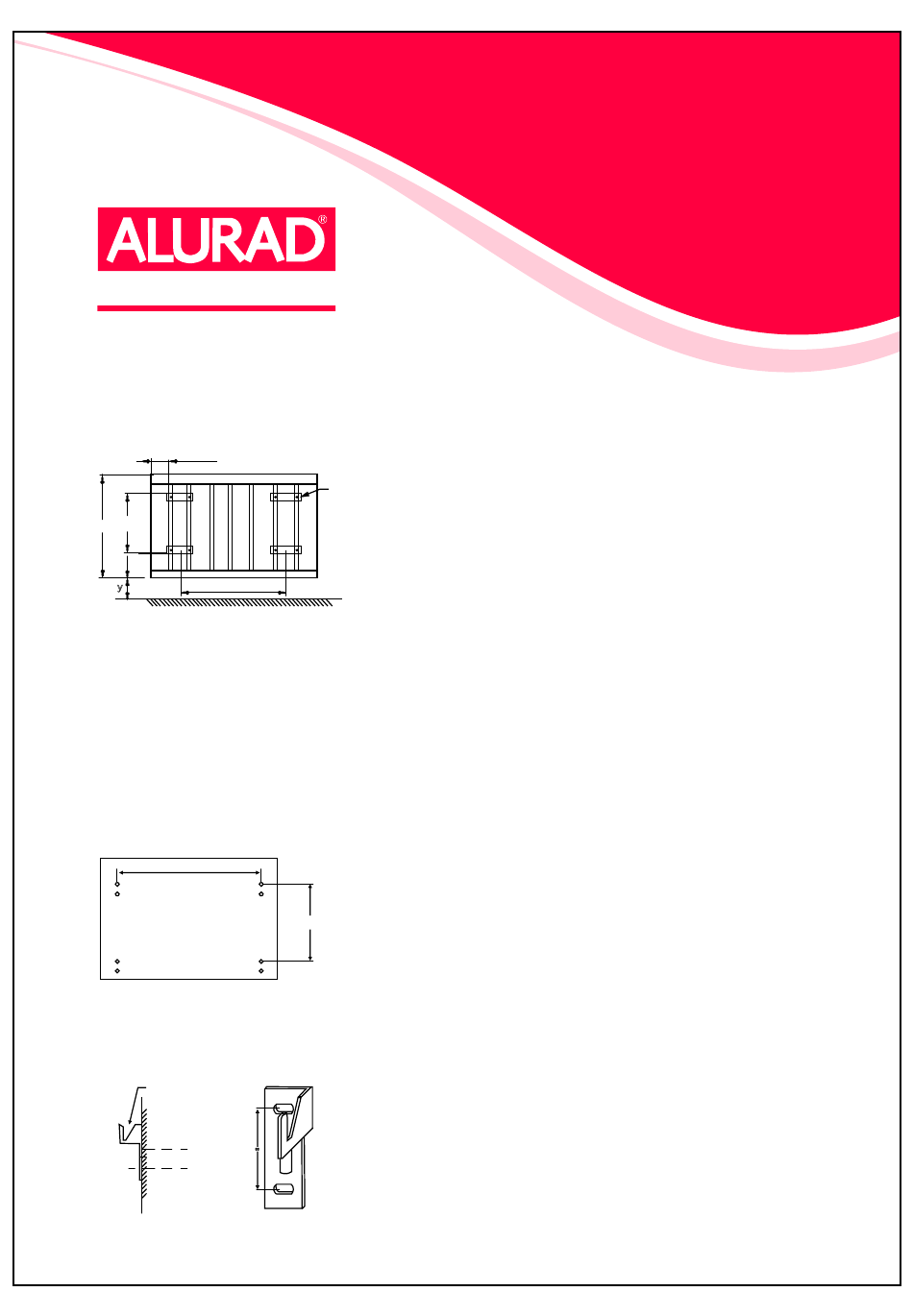

Figure 1
(h-220)mm
Figure 2
Figure 3
Atlantis
A-MOUNTING WITH
HANGER SYSTEM
1 Mount the radiator without removing it from its nylon
packing. Remove the nylon cover before use after
completion of all alteration and painting works.
The initial putting of the radiator into operation may
be carried out while the nylon cover is on.
Atlantis radiators can be easily mounted on the wall
using the four hanger elements.
For this purpose, first mark the locations of the
brackets on the wall in accordance with the
measurements given in the figure.
2 Bore the holes on the wall for mounting the brackets
using a drill, according to the measurements given
in the figure.
First mark the location of holes.
Then bore the holes.
Mount the brackets on the wall by tightening their
3
screws using a screwdriver. The upper mounting
elements should rest on the radiator's upper profile.
