Wireless (rf) rgb controller

Advertisement

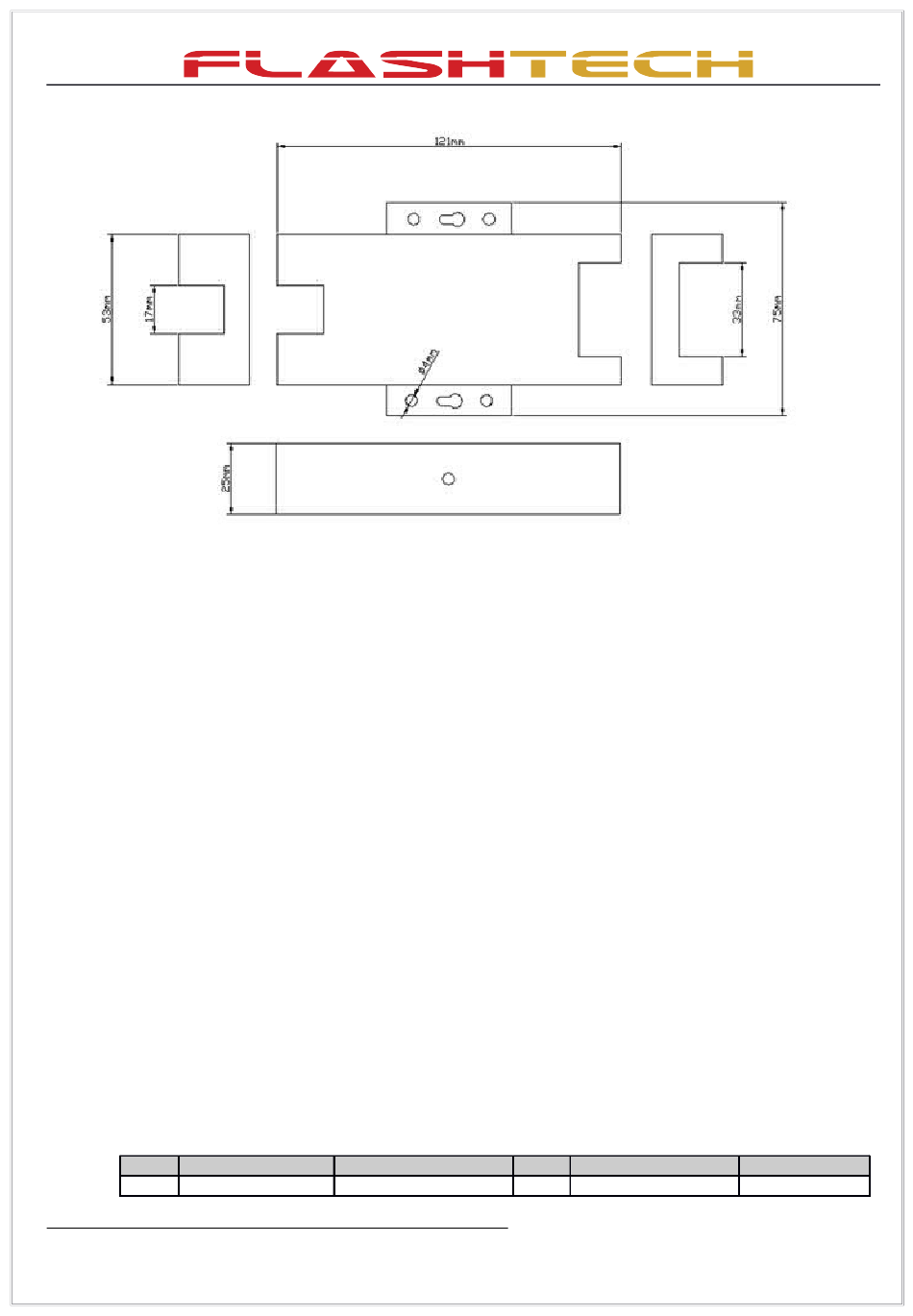

External Dimension
Interface Specifications
Power input interface
Positive and negative wires are connected directly to a 12v DC power source. In most cases this would be
your vehicle battery. If this item is being used for home or commercial use it first must be connected to a 12v
dc power inverter.
Load output interface
Connect each color wire directly to the appropriate screw,
BLACK wire→V + RED wire→R GREEN wire→G BLUE wire→B
WARNING : If using this controller with Flashtech Halos, the green and blue wires may have to
be switched for proper utilization. If the controller does not function properly with the Green
wire attached to "G" and the Blue wire attached to "B", switch them (Green wire → B ; Blue
Wire → B).
Direction for use
1.
Connect the load wire first, following by the power wire;
occur between connecting wire before you turn on the power;
2.
Below is the function of each button. The function of each key is as follows:
(1): you can turn on/off controller at any time
(2): Play/pause button, it is used to see the static effect of a led mode.
S(3)+: Changes the speed higher of a particular mode. One degree for every time you press
S-(4): Changes the speed lower of a particular mode. One degree for every time you press
B+(5): Changes the Brightness higher. One degree for every time you press
B-(6): Changes the Brightness lower. One degree for every time you press
M+(7): Changes the pattern forward (form below shows each option)
M-(8): Changes the pattern backwards (form below shows each option)
3
. All 25 option on the controller are listed below
No.
1
:
:
Patterns
Remarks
Static red
No.
14
Page 2 of 3
Please ensure short circuit cannot
Patterns
Remarks
Blue flash
