The chart settings shown below are "reference" settings to be used as
starting points. Actual voltage settings may vary depending upon the
conditions or each application and use.
VOLTAGE SETTINGS
PIN/STUD TYPE
Cuphead Pin
Insulation Pin
Weld Studs
(Flanged)
for ACCESSORIES
and SPARE PARTS
see:
SET-UPS
STANDARD
Adjustable and with spark
shield, for Pins or Studs.
CUP HEAD CHUCK
For all Cup Head Pins.
MIDWEST FASTENERS
800-852-8352
PIN/STUD DIA PIN/STUD MAT'L. VOLTAGE SETTING
12 GA
Mild Steel
85-95
12 GA
Mild Steel
75-85
10 GA
or Stainless
85-95
12 GA
110-120
Aluminum
10 GA
120-130
#10 or 3/16"
Mild Steel
120-130
1/4"
or Stainless
145-155
#8
120-130
Aluminum
#10 or 3/16"
130-140
Toll Free: 800-852-8352 • Fax: 937-866-4174
www.midwestfasteners.com

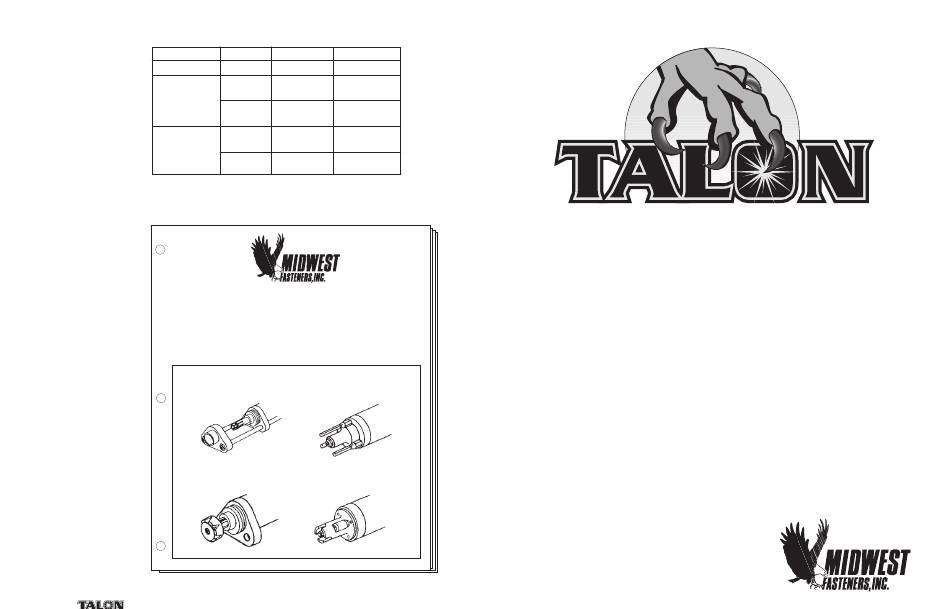

CD STUD WELDING ACCESSORIES
SPECIFICATION GUIDE
COLLET PROTECTOR
Fixed, for Pins.
TEMPLATE ADAPTOR
For precise location of studs.
Solid State — Capacitor Discharge
Pin Welding System
Quick Startup Guide
/ 3 11
Advertisement
Table of Contents
Summary of Contents for Midwest Talon
- Page 1 CD STUD WELDING ACCESSORIES SPECIFICATION GUIDE SET-UPS STANDARD COLLET PROTECTOR Adjustable and with spark Fixed, for Pins. shield, for Pins or Studs. CUP HEAD CHUCK TEMPLATE ADAPTOR For all Cup Head Pins. For precise location of studs. MIDWEST FASTENERS 800-852-8352 / 3 11...
- Page 2 CD-2T WELD GUN SETUP MIDWEST FASTENERS INC. POSI-Weld PARTS Magnetic Cuphead CUPHEAD PINS Chuck CDWG-201-35 1. Place POSI-Weld magnetic chuck in gun shaft and retighten set screw. 2. Place Cup Head Pin on magnetic chuck. NOTE: A) When welding, maintain correct pressure Remove the controller, cables and weld gun from the shipping packaging.
