Ingalls Engineering Co., Inc. 93048 Installation Instructions

Stiffy engine torque damper for 2000-08 honda s2000

Table of Contents

Download this manual

Ingalls Engineering Stiffy ™ Engine Torque Damper for 2000-08 Honda S2000

The Stiffy ™ Adjustable Engine Torque Damper is engineered to reduce deflection under hard acceleration and cornering for

improved performance and power to weight transfer. Deflection in the motor mounts, as with the chassis and suspension, is a

formidable enemy in power and weight transfer, robbing valuable horsepower and control. The innovative, built-in damper eliminates

the huge amounts of "torque shock" that result from wheel-hop and once installed; transfers more power to the road and improves

acceleration, shifting, and overall control and balance. The adjustable feature allows the assembly to be tuned and pre-loaded for

racing and street applications.

CAUTION: Observe proper safety and repair procedures for installation of all chassis parts. Some chassis parts require

specialized tools and experience and therefore MUST be installed by a qualified technician; otherwise and unsafe vehicle and/or

personal injury could result. Wear safety glasses and other protection.

WARNING: Before beginning, check for any damaged or loose suspension connections. Loose connections here indicate worn

or broken parts which MUST BE REPLACED. Failure to replace a damaged or worn spindle and/or link may cause the wheel to

separate from the vehicle, possibly resulting in serious personal injury. Installer MUST check for proper clearance. Modification(s)

may be required. Please proceed ONLY if the vehicle owner is completely aware of these potential suspension modifications.

Estimated Installation Time: One Hour

Included Parts List:

1 - Stiffy ™ Engine Torque Damper

1 - Engine Bracket

1 - Chassis Bracket

1 - Cable Tie

1 - Hardware Kit

Step 1: Under the hood, locate the passenger's side upper strut mount and remove the two M10 nuts (14mm HEX)

(Arrows "A", Illustration 1) that secure the strut to the strut tower. Fit Chassis Mounting Bracket over the strut studs as

shown in Illustration 2, (ensure that the bent tab portion of the bracket is angling up). Secure Chassis Mounting

Bracket using the OEM M10 nuts.

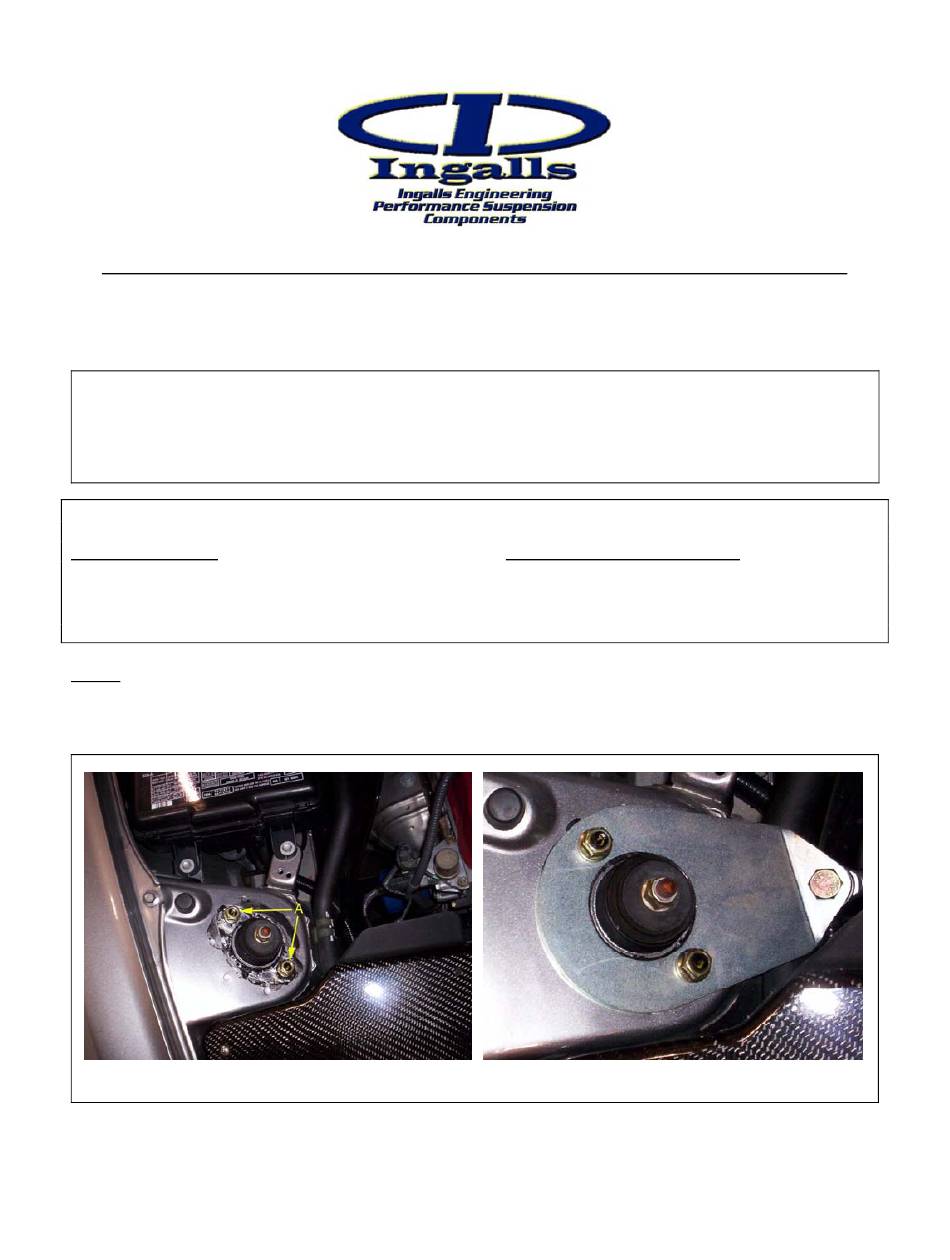

Illustration 1

(800) 641-9795 - (303) 665-7800 - Fax: (303) 665-7810 - www.IngallsEng.com

Installation Instructions for 93048

Technical Rating: Easy

Metric Sockets

Metric Box Wrenches

Crescent Wrench (up to 27mm)

3/8" Torque Wrench

3/8" Socket Driver (Wrench)

Illustration 2
