Marley 12003 Operating Instructions

READ CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR SERVICE ADJUSTABLE
SPEED CONTROLS!
RETAIN INSTRUCTIONS FOR FURTHER REFERENCE.
Models 12003
3 Amps
Description
Leading Edge solid state adjustable speed controls are
engineered and designed specifically for use with
Leading Edge commercial/industrial ceiling fans.
Controls provide adjustable speed operation at any point
between minimum and maximum fan speeds. All models
have a hard plastic backing to protect components and

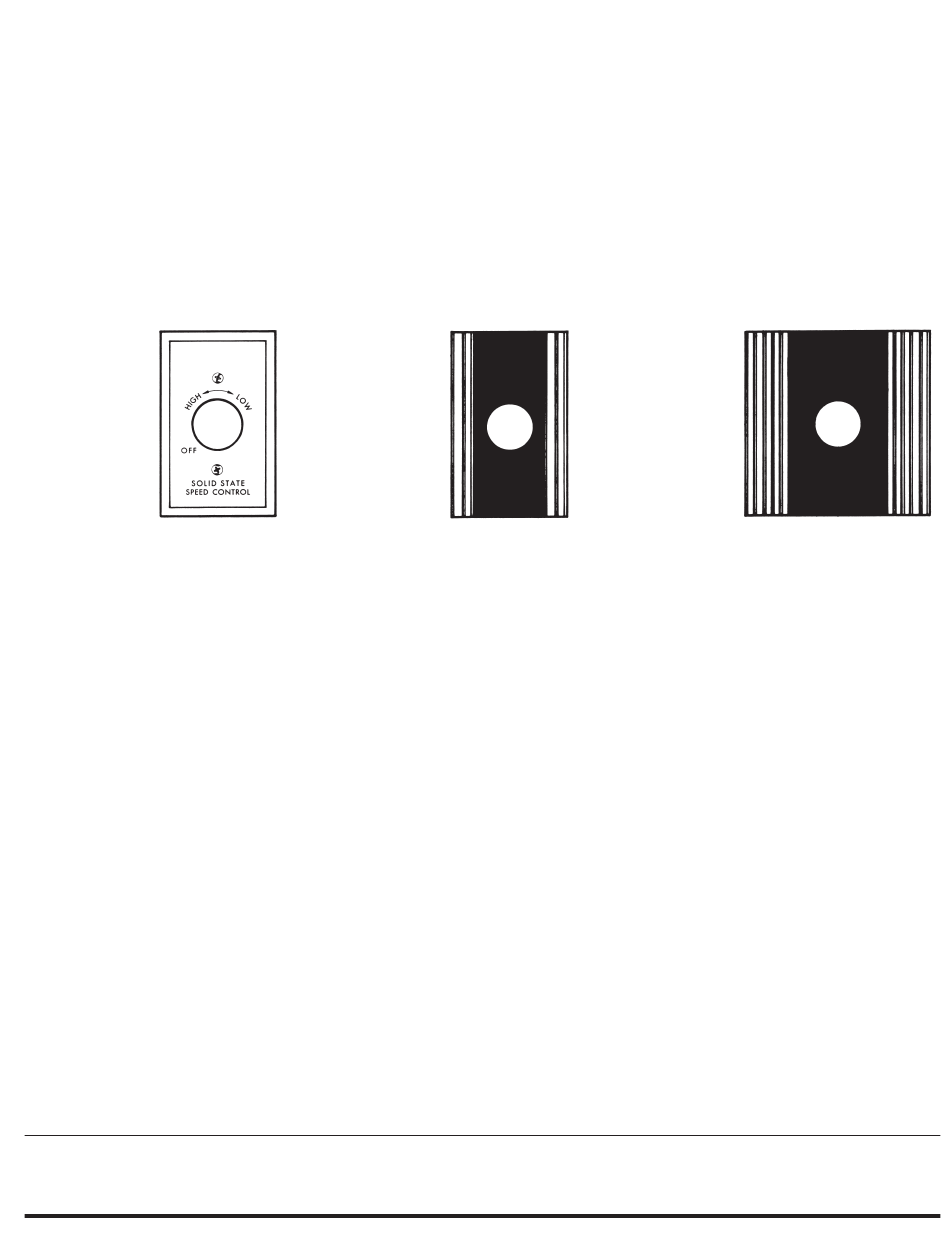

circuit board and dial on/off switch. 3 Amp control Model
features brushed aluminum wall plate. 8 and 12 Amp con-
trols feature a finned aluminum heat sink plate, wire
brushed gold finish and black trim. All models are UL
Listed.
SPECIFICATIONS AND
RECOMMENDED CONTROL
CALCULATIONS PER FAN MODEL
MODEL
NUMBER VOLTS
12003 120
12008 120
12012 120
27708 277
ECR 40490
OPERATING INSTRUCTIONS
MODELS: 12003, 12008, 12012, and 27708
Models 12008
27708
CONTROLS
36"/120
36201A
UNITS
AMPS
3 3
8 10
12 12
8
Adjustable Speed
Models
8 Amps

General Safety Information

WARNING: DISCONNECT POWER SUPPLY BEFORE
WIRING CONNECTIONS ARE MADE TO PREVENT
POSSIBLE ELECTRICAL SHOCK OR DAMAGE TO
EQUIPMENT.
WARNING: READ AND FOLLOW INSTRUCTIONS
CAREFULLY. FAILURE TO COMPLY WITH INSTRUC-
TIONS COULD RESULT IN FIRE, ELECTRICAL
SHOCK, INJURY TO PERSONS, AND/OR DAMAGE TO
EQUIPMENT.
1. All wiring should conform to the National Electrical
Code and local regulations.
2. Do not mount in an area which will allow the control
to come in contact with moisture.
3. Make certain the entire installation is grounded as a
precaution against possible electrical shock.
4. Do not exceed maximum amperage rating of the
control as overloading can result in damage to
ceiling fan and control.
CONTROLS
56"/120
56001A; 56001BA;
56001LCA;
56011A; 56111A;
CONTROLS
48"/120 56301RDP;
56101A; 56201A
48201A; 48201BA
UNITS UNITS
2
6
10
12/16
Controls
12012
12 Amps
CONTROLS
56"/220/277
56007A
UNITS
2
6
6
10
CONTROLS
60"/120
60001A;
60111A;
60101A
60011A
UNITS
1
4
8
5200-2405-003
