- Page 1 Yu-Fit Battery Configurator Tool User Guide...
- Page 2 If you experience any problems contact Technical Support on 0800 93 93 93 YU-FIT USER GUIDE...
- Page 3 The Yuasa Yu-Fit battery configurator tool allows the configuration process to be carried out on a growing number of vehicles equipped with new technology smart charge and ISS systems.
- Page 4 Yu-Fit Registration Before you can use the Yuasa Yu-Fit Battery Configurator tool it must be registered. To register you must first download the Yu-Fit application suite using the link found www.yuasabatteries.co.nz Once the application suite has been successfully installed follow the on-screen instructions to complete the registration process.

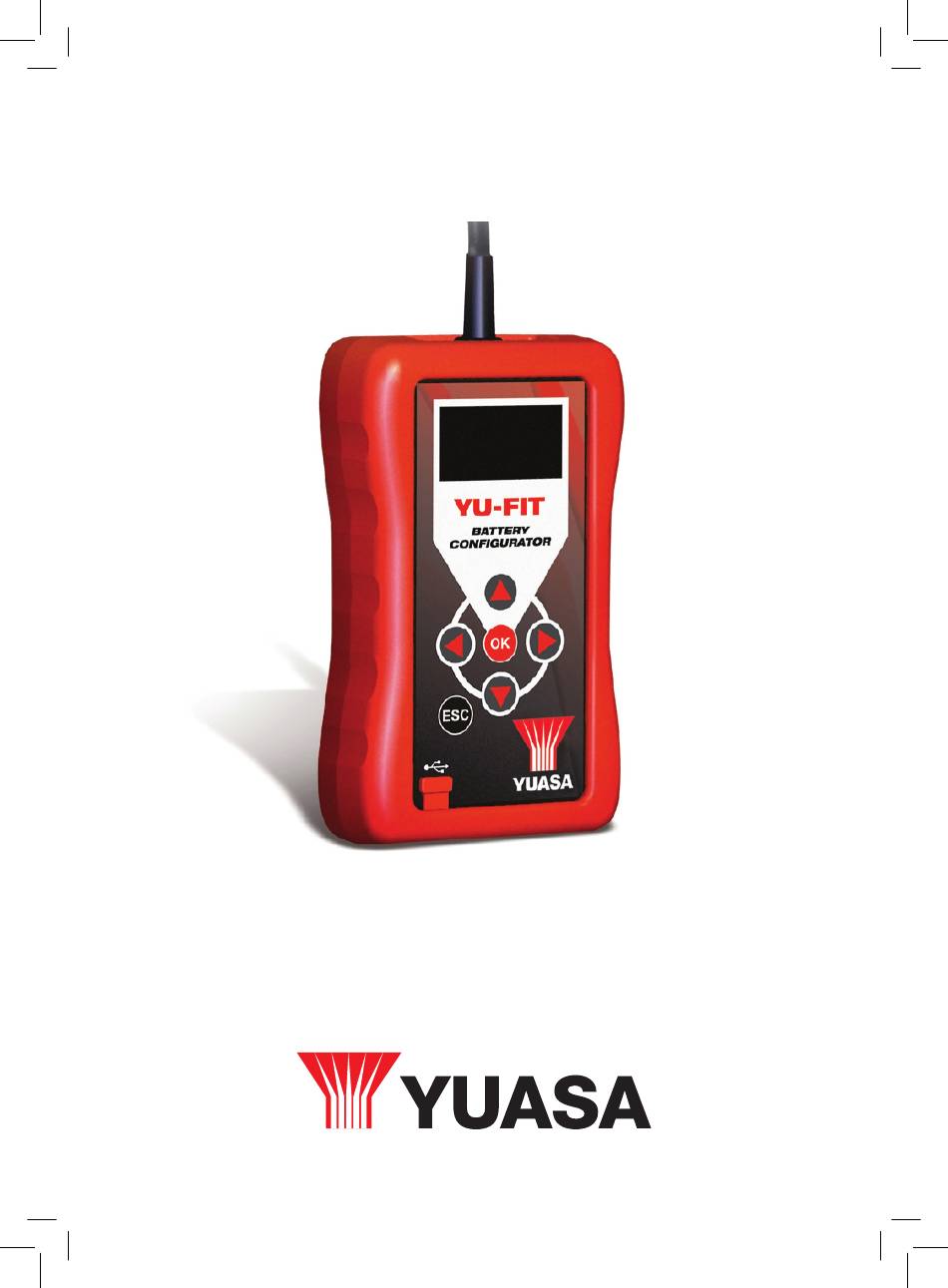

- Page 5 • OK button • ESC button OLED display EOBD Diagnostic Plug Arrows control the cursor around the screen OK button confirms the selected option ESC button cancels or returns from a menu Mini USB port for connection to PC YU-FIT USER GUIDE...
- Page 6 Yu-Fit Connection Once the vehicle battery has been replaced the Yuasa Yu-Fit Battery Configurator tool should be connected to the vehicle via the 16 Pin J1962 EOBD diagnostic plug. Yu-Fit LCD Icons Diagnostic/Vehicle Selection Select this to enter Vehicle Specific Serial Diagnostics function.
- Page 7 Selecting the System Setup icon displays the System Setup Menu which allows the Yu-Fit user to adjust settings and carry out system tests if required. Garage/Workshop Information Select this to display your user details. These can be edited using the PC suite.
-
Page 8: Battery Management
Yu-Fit Battery Configuration Procedure When the Yuasa Yu-Fit is connected to the vehicle the Main Menu screen will be displayed. Using the keypad arrows navigate to the DIAGNOSTICS icon and confirm with OK. Select the BATTERY MANAGEMENT icon and confirm with OK. -
Page 9: Replace Battery
Wait for the vehicle selection to be accepted, switch on the vehicle ignition and confirm with OK. Select the REPLACE BATTERY function and confirm with OK. Select the VALIDATE BATTERY option from the SELECT FUNCTION menu, confirm with ‘OK’ and wait for the function to initialise. YU-FIT USER GUIDE... - Page 10 Note The battery configuration procedure that the Yuasa Yu-Fit is capable of varies dependent on the vehicle manufacturer and sophistication of the systems installed on the vehicle. Vehicles allowing limited access with the Yuasa Yu-Fit will only allow the configuration of the correct specification replacement battery.
- Page 11 Notes YU-FIT USER GUIDE...
- Page 12 For more information contact your 0800 4 YUASA YUASA Batteries specialist on www.yuasabatteries.co.nz or visit...
