Blue Hawk BICYCLE PULLEY Manual

Hide thumbs
1
2
3

Advertisement

Table of Contents

PACKAGE CONTENTS/

Hook Pulleys
A
x2
Rope Cleat
B
x1
WARNING: Handling this product will expose you to chemicals, including lead, known to the state of California to cause birth
defects or other reproductive harm. Wash hands after handling.
AVERTISSEMENT :La manipulation de cet article peut vous exposer à des produits chimiques, notamment du plomb,
reconnus par l'État de la Californie comme étant la cause de cancers, d'anomalies congénitales et d'autres problèmes
liés aux fonctions reproductrices.Lavez-vous les mains après l'avoir manipulé.
ADVERTENCIA:La manipulación de este producto lo expondrá a sustancias químicas, incluido el plomo, reconocidas por el
estado de California como causantes de defectos congénitos u otros daños en el aparato reproductivo.Lávese las manos
después de manipularlo.

HARDWARE CONTENTS/

#10x50.4 mm Screw
AA
x14

PREPARATION/

Before beginning installation of product, make sure all parts are present. Compare parts with package contents list and
hardware contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product.
Estimated Installation Time: 15 minutes
Tools Required for Assembly (not included): Phillips screwdriver.
Helpful Tools (not included): Drill with bit, stud finder (if mounting item to the wall).
AB14503
Bicycle not included
48 ft. Rope
C
x1
Pulley Plate
D
x1
1
ITEM/ARTICLE/ARTÍCULO #0005884
BICYCLE PULLEY
MODEL/MODÈLE/MODELO #55424
E
Screw Eye Hook
BB
x1
Lift Assembly
x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BICYCLE PULLEY and is the answer not in the manual?

Questions and answers

Summary of Contents for Blue Hawk BICYCLE PULLEY

  • Page 1: Package Contents

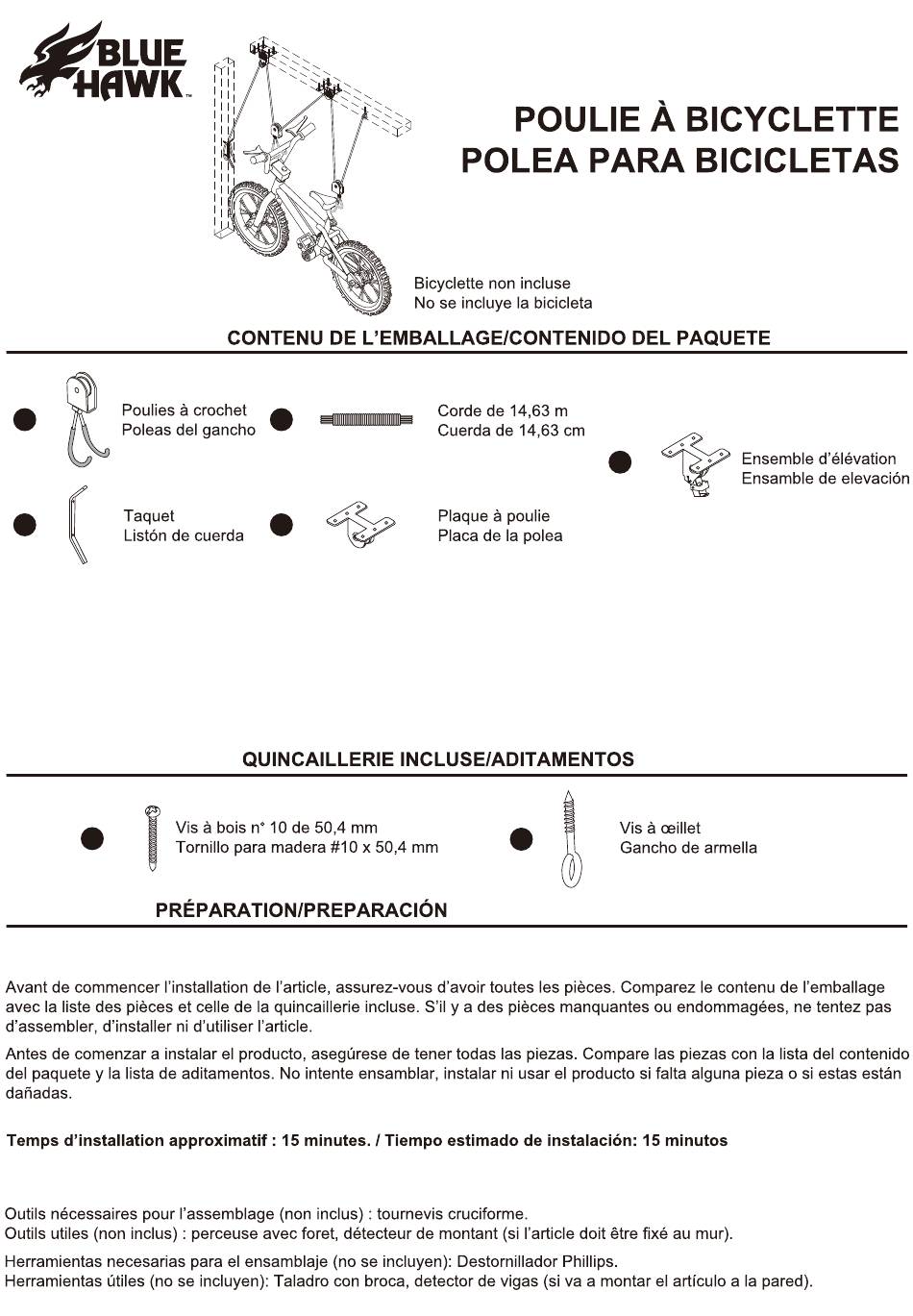

    ITEM/ARTICLE/ARTÍCULO #0005884 BICYCLE PULLEY MODEL/MODÈLE/MODELO #55424 Bicycle not included PACKAGE CONTENTS/ Hook Pulleys 48 ft. Rope Lift Assembly Rope Cleat Pulley Plate WARNING: Handling this product will expose you to chemicals, including lead, known to the state of California to cause birth defects or other reproductive harm.
