Page 1: User Manual
USER MANUAL BRIDGE X TS VIDEObit S.A. representa en Argentina a DIGITAL FORECAST... - Page 2 USER MANUAL Summary Bridge X TS is a device that supports a variety of inputs and outputs. This device can be used in the installation construction, maintenance service of video or audio signal. You can see the signal status to the LCD panel. Even if any one of the input signal, the converted signals are all output.
- Page 3 1 of Holder 1 of Battery tap(sony) 1 of VGA to Component jack 1 of analog audio jack 1 of HDMI cable 1 of SDI cable VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
- Page 4 USER MANUAL Product Composition(hard case) VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
- Page 5 Product Composition(basic) 1 of basic case 1 of X_TS main body 1 of adaptor 1 of VGA to Component jack 1 of analog audio jack VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...

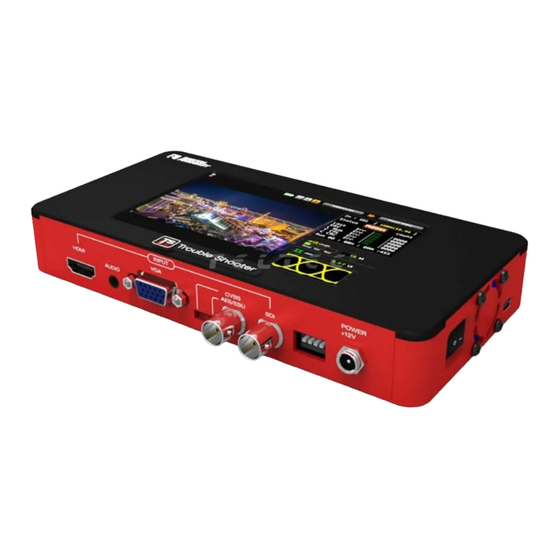

- Page 6 The name and the function of each product part Analyzer Out Signal converted out Multi-Controller Touch panel 5.0” View finder Power On/Off Switch Air Vent Source In Power Jack Battery tap(Holder) hole x4 VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
-
Page 7: The Standard And The Performance
HD format : 720P(24/25/30/50/59.94/60) 1080i(50/59.94/60) 1080p(24/25/30/sf24/50/59.94/60) LCD Display Specs Size: 5.0 Inch Resolution : 800 x 480 Pixel area : 0.135mm(W) x 0.135mm(H) Display area : 108mm(W) x 64.8(H) VIDEObit S.A. representa en Argentina a DIGITAL FORECAST... - Page 8 USER MANUAL Application VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
- Page 9 6. FULL/SPLIT : A display mode of a screen (the whole/division) can be chosen 7. STATUS : A state window of the screen upper row is indicated and isn't indicated 8. HDCP : When HDCP is activated at HDMI signal input, it's indicated VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
-
Page 10: The Addition Menu Explanation
When pressing a SET button after choosing the output format, it's applied Test pattern SMPTE Color Bar Pathological Black Gray Pathological + Move Black + Move SMPTE + Move Gray + Move VIDEObit S.A. representa en Argentina a DIGITAL FORECAST... - Page 11 This feature is only used when you want to use the VGA output mode SDI and CVBS, COMPONENT is YUV422 modes are supported, so as to change the RGB444 output mode normally does not come out. VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
- Page 12 Waveform : It can be indicated to choose YCbCr or RGB waveform at the bottom left Measure Window : It can be indicated to choose Audio, Vector scope, Jitter on window in split mode VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
- Page 13 Indication a pseudo eye pattern with jitter Peak to Peak Jitter : Simulated Physical Eye jitter Max 1 UI Check Indication by Good, Normal, Bad < Pseudo EyE Picture > VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
- Page 14 2.5 FULL/SPLIT FULL : A image is indicated on the whole screen SPLIT : A image is indicated with three division screens, and monitoring information is shown to the right side VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
-
Page 15: Monitoring Information Display
- C CRC Err:A CRC error of Cb,Cr signal is displayed - HDCP : A check of HDCP support is displayed - 352M : SMPTE352M Payload is displayed - AUD Freq : Audio sampling frequency is displayed VIDEObit S.A. representa en Argentina a DIGITAL FORECAST...
