Raptor Series 1501-0581 Installation Instruction

1501-0581
07-13 CHEVY/GMC
Silverado/Sierra Reg Cab 4" OE SS Oval
(Rocker Panel Mount)
Components List:

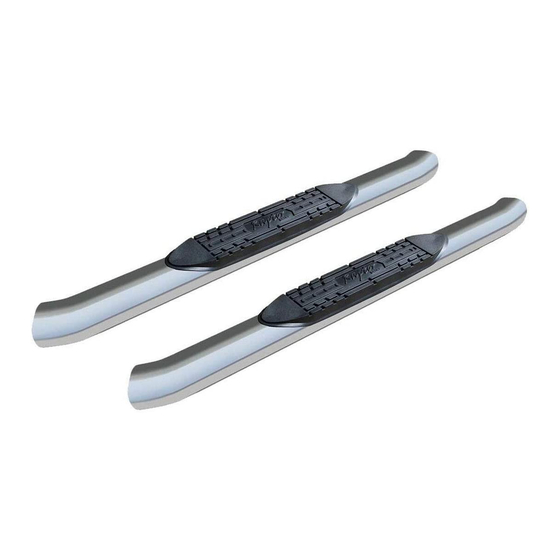

2 – Stainless steel oval step bars
2 – Front Bracket – Driver & Passenger Side
2 – Rear Bracket – Driver & Passenger Side
4 – Rubber gasket
Parts List:
8 – M8X 30 mm Hex Head Bolt
12 – M8 Lock Washers
12 – M8 Flat Washers
4 – M8 Hex Nut
4 – M8 U-Nut
8– M10X30 Button Head Bolt
8 – M10 Lock Washers
8 – M10 Flat Washers
Installation Instruction:
1. Remove all contents from the received box and check stainless steel tube
for any dent. Also verify all brackets and bolts against the parts list.
2. Read installation manual and installation drawing completely. Understand
all brackets and bolts before installation.
3. Install brackets as shown. ( See Figure 1.)
4. Place driver side step bar on brackets. Each step bar is marked driver and
passenger.
5. Assemble with M10 button head bolts and M10 washers. 2 bolts per
bracket, 4 bolts per bar (see Fig 2). Hand tighten.
6. Repeat installation for passenger side
1501-0581 1
