Mallory UNILITE 576 Installation Instructions

Distributor for 1952-70 harley davidson sportster motorcycles

Advertisement

Quick Links

UNILITE
1952-70 HARLEY DAVIDSON
SPORTSTER
NOTE: THIS DISTRIBUTOR WILL ALSO FIT 1930-73 FLATHEAD (45 AND UL).
A 1952-70 Sportster
TO INSTALL THIS DISTRIBUTOR. BECAUSE THE UNILITE
DISTRIBUTOR REQUIRES 7-16 VOLTS, A 12 VOLT ELECTRICAL SYSTEM IS ALSO REQUIRED.

GENERAL INFORMATION

Any coil or combination of coils with a total primary
resistance of at least 2.0 ohms can be used with this
distributor. We recommend a 2-3 ohm coil for racing
and a 3-4 ohm coil for street use. A coil with 4-5 ohms
resistance may be used. However, performance
may be reduced, even in street applications.
NOTE: Check the charging system and make sure
that it is producing no more than 16 volts.
We recommend a spark plug gap of .040" when using
a 2-3 ohm coil. A gap of .030" is recommended when
using a 3-4 ohm coil.
An optional spring kit (PN 29014) is available for this
distributor. The kit gives you a choice of 14 different
advance curve settings.

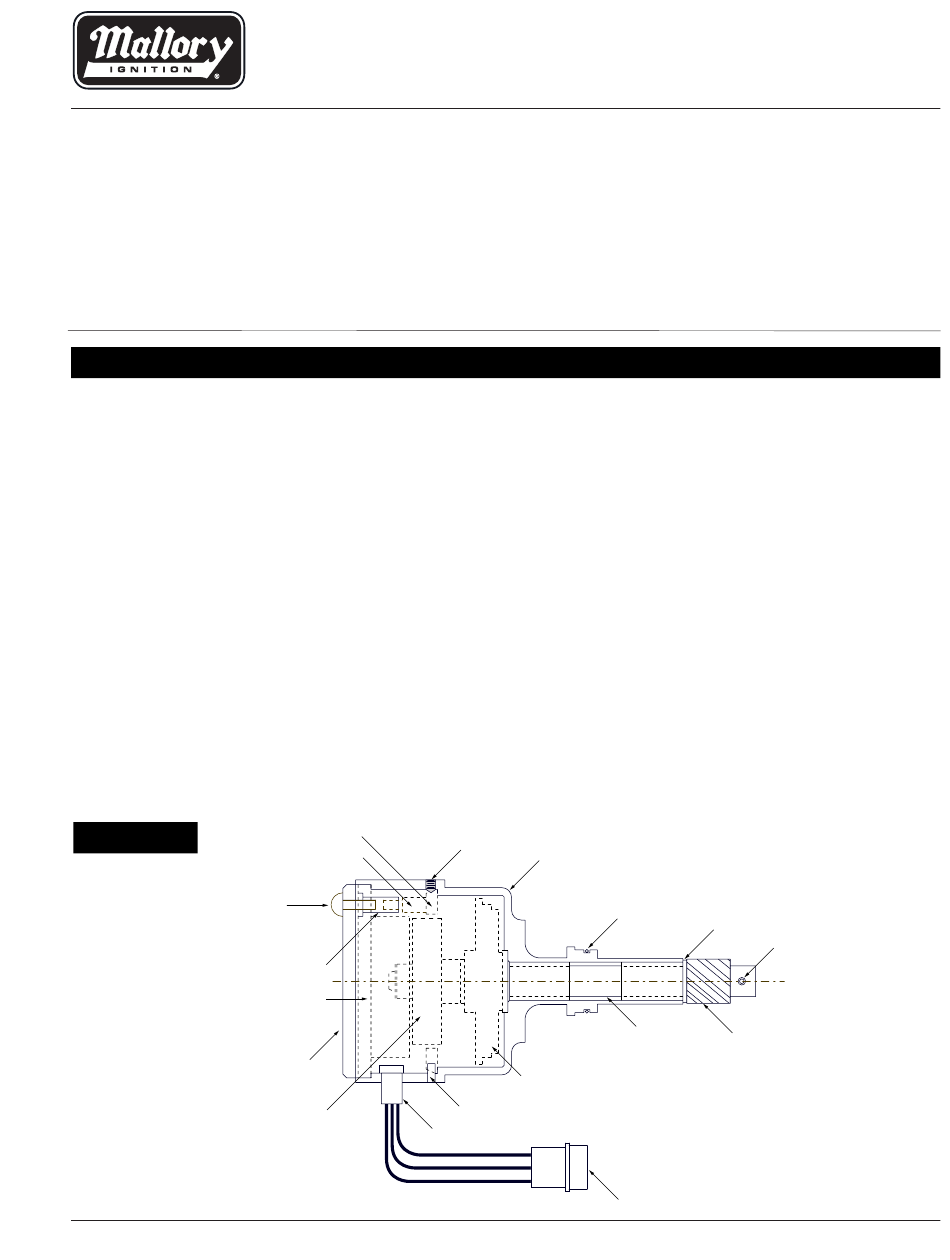

FIGURE A
SCREW
UNILITE PLATE ASSY
SHUTTER WHEEL
MALLORY TECHNICAL SUPPORT
INSTALLATION INSTRUCTIONS
®
DISTRIBUTOR FOR
PART NO. 576
®
DISTRIBUTOR CLAMP (ORIGINAL OR AFTERMARKET) IS REQUIRED
ADAPTER RING
STANDOFF
SLEEVE NUT
COVER
(775) 882-6600
®
MOTORCYCLES
IMPORTANT
®
MODULE USED WITH THIS
INSTALLATION

Step 1

Turn the ignition switch to the off position. With the
point distributor still in place and correctly timed,
rotate the engine until the points begin to open on
the front cylinder lobe. The front cylinder lobe is the
narrower of the two.
If the point distributor is not installed, rotate the engine
to the beginning of the compression stroke. Locate the
timing hole. Continue rotating the engine until the
advance mark is visible through the timing hole.

Step 2

Remove the ground cable from the battery. Remove
the point wire at the coil. Remove the point distributor.
SET SCREW
HOUSING
YH ADVANCE
PIN
GROMMET
Visit us on the web at: www.mrgasket.com
FORM 1479 (REV. B) 08/03
®
O-RING
WASHER
ROLL PIN
SHAFT
GEAR
CONNECTOR
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNILITE 576 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mallory UNILITE 576

  • Page 1 Remove the point distributor. FIGURE A ADAPTER RING SET SCREW STANDOFF HOUSING SCREW O-RING WASHER ROLL PIN SLEEVE NUT UNILITE PLATE ASSY SHAFT GEAR COVER YH ADVANCE SHUTTER WHEEL GROMMET CONNECTOR MALLORY TECHNICAL SUPPORT Visit us on the web at: www.mrgasket.com (775) 882-6600...
  • Page 2 Rotate the shaft until the arrow on the UNILITE ® plate points approximately at the “X” on the shutter wheel. Install the Mallory distributor in the engine. Be sure that the distributor wires exit on the side closest to the cylinders. Step 4 Install a distributor clamp.
  • Page 3 (unplug the white connector to the Module before welding). • Improper coil, use 2-4 ohm coil (check installation instruction). If you must replace the Module, replace it with Mallory Part # A605. If after completing the test you still have questions 216-688-8300 ext. 5...
