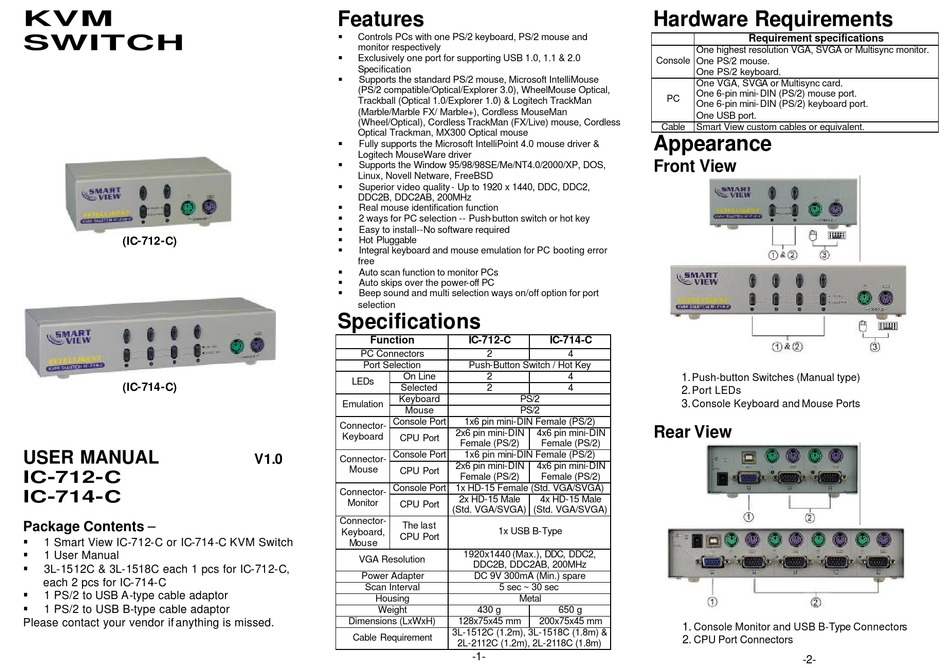

KVM SmartView IC-712-C User Manual

KVM
SWITCH
(IC-712-C)
(IC-714-C)
USER MANUAL
IC-712-C
IC-714-C
Package Contents –
§
1 Smart View IC-712-C or IC-714-C KVM Switch
§
1 User Manual
§
3L-1512C & 3L-1518C each 1 pcs for IC-712-C,
each 2 pcs for IC-714-C
§
1 PS/2 to USB A-type cable adaptor
§
1 PS/2 to USB B-type cable adaptor
Please contact your vendor if anything is missed.

Features

§
Controls PCs with one PS/2 keyboard, PS/2 mouse and
monitor respectively
§
Exclusively one port for supporting USB 1.0, 1.1 & 2.0
Specification
§
Supports the standard PS/2 mouse, Microsoft IntelliMouse
(PS/2 compatible/Optical/Explorer 3.0), WheelMouse Optical,
Trackball (Optical 1.0/Explorer 1.0) & Logitech TrackMan
(Marble/Marble FX/ Marble+), Cordless MouseMan
(Wheel/Optical), Cordless TrackMan (FX/Live) mouse, Cordless
Optical Trackman, MX300 Optical mouse
§
Fully supports the Microsoft IntelliPoint 4.0 mouse driver &
Logitech MouseWare driver
§
Supports the Window 95/98/98SE/Me/NT4.0/2000/XP, DOS,
Linux, Novell Netware, FreeBSD
§
Superior video quality - Up to 1920 x 1440, DDC, DDC2,
DDC2B, DDC2AB, 200MHz
§
Real mouse identification function
§
2 ways for PC selection -- Push-button switch or hot key
§
Easy to install--No software required
§
Hot Pluggable
§
Integral keyboard and mouse emulation for PC booting error
free
§
Auto scan function to monitor PCs
§
Auto skips over the power-off PC
§
Beep sound and multi selection ways on/off option for port
selection

Specifications

Function
PC Connectors
Port Selection
On Line
LEDs
Selected
Keyboard
Emulation
Mouse
Console Port
Connector-
Keyboard
CPU Port
Console Port
V1.0
Connector-
Mouse
CPU Port
Console Port 1x HD-15 Female (Std. VGA/SVGA)
Connector-
Monitor
CPU Port
Connector-
The last
Keyboard,
CPU Port
Mouse
VGA Resolution
Power Adapter
Scan Interval
Housing
Weight
Dimensions (LxWxH)
Cable Requirement
IC-712-C IC-714-C
2 4
Push-Button Switch / Hot Key
2 4
2 4
PS/2
PS/2
1x6 pin mini-DIN Female (PS/2)
2x6 pin mini-DIN 4x6 pin mini-DIN
Female (PS/2) Female (PS/2)
1x6 pin mini-DIN Female (PS/2)
2x6 pin mini-DIN 4x6 pin mini-DIN
Female (PS/2) Female (PS/2)
2x HD-15 Male 4x HD-15 Male
(Std. VGA/SVGA) (Std. VGA/SVGA)
1x USB B-Type
1920x1440 (Max.), DDC, DDC2,
DDC2B, DDC2AB, 200MHz
DC 9V 300mA (Min.) spare
5 sec ~ 30 sec
Metal
430 g 650 g
128x75x45 mm 200x75x45 mm
3L-1512C (1.2m), 3L-1518C (1.8m) &
2L-2112C (1.2m), 2L-2118C (1.8m)
-1-

Hardware Requirements

Requirement specifications
One highest resolution VGA, SVGA or Multisync monitor.
Console
One PS/2 mouse.
One PS/2 keyboard.
One VGA, SVGA or Multisync card.
One 6-pin mini- DIN (PS/2) mouse port.
PC
One 6-pin mini- DIN (PS/2) keyboard port.
One USB port.
Cable Smart View custom cables or equivalent.

Appearance

Front View

1.
Push-button Switches (Manual type)
2.
Port LEDs
3. Console Keyboard and Mouse Ports

Rear View

1.
Console Monitor and USB B-Type Connectors
2. CPU Port Connectors
-2-
