Summary of Contents for VAF instruments T-SENSE

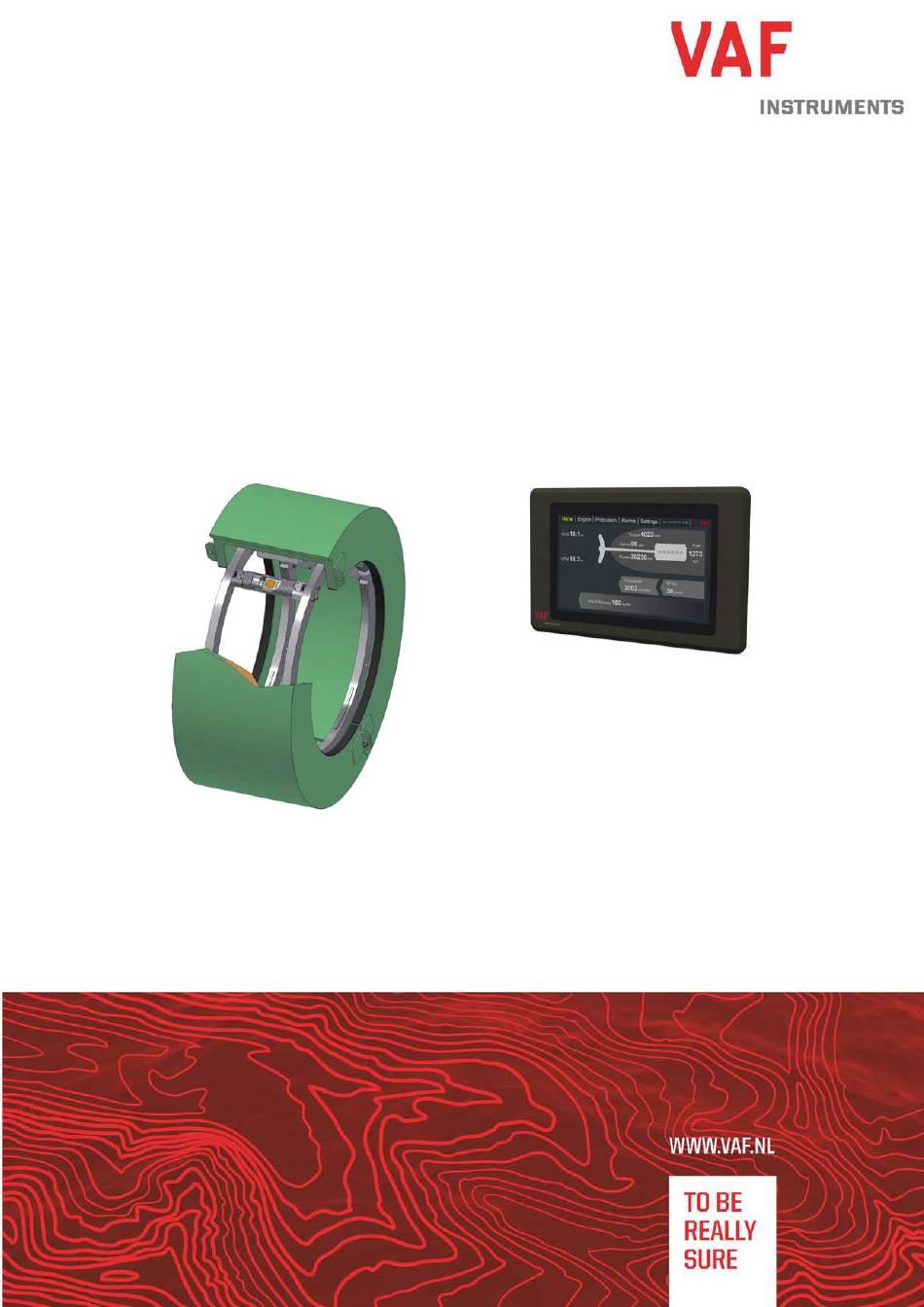

- Page 1 Technical Manual Instructions for installation, operation and maintenance ® T-SENSE Optical Torque Measuring systems and PEM4 stand alone Publication nr TIB-669-GB-1117 Supersedes...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PREFACE ........................3 1.1 General ........................3 1.2 Symbols ........................3 1.3 Copyright......................... 3 2. SYSTEM DESCRIPTION ..................... 4 2.1 PEM4 TOUCH SCREEN ..................4 2.2 System security ....................... 4 3. TECHNICAL SPECIFICATIONS .................. 5 3.1 PEM4 TOUCH SCREEN ..................5 4. ... - Page 3 19. SPARE PARTS ..................... 25 20. WARRANTY CONDITIONS .................. 26 ...
-
Page 4: Preface
VAF Instruments. To ensure safe and correct installation and operation, read this manual completely before installing the equipment and starting operations. -
Page 5: System Description
2. SYSTEM DESCRIPTION 2.1 PEM4 TOUCH SCREEN The PEM4 touch screen is able to calculate several output data. Functions, which can be performed with this PEM4 touch screen are: Measurement and display of torque, shaft speed, power and thrust (optional). ... -
Page 6: Technical Specifications
3. TECHNICAL SPECIFICATIONS 3.1 PEM4 TOUCH SCREEN Supply voltage 115-230 VAC to power supply unit Dimensions 235 x 150 x 44 (w x h x d) Cut out 217,6 x 128,6 mm (w x h) Cut out depth 38 mm Front panel thickness 7 mm Connections... -
Page 7: To Record Nameplate Data
Check if the inputs show any errors. If that is the case the connection(s) or connected equipment should be checked and corrected. 6.1 TO RECORD NAMEPLATE DATA This information is required when contacting the supplier for any reason. Date of delivery: xx xx xxxx Serial number: xxxx... -
Page 8: Installation Diagram
The maximum number of touch screens, which can be connected by Ethernet connection is two. ® Figure 2 – T-Sense torque sensor connected to one PEM4 touch screen ® Figure 3 – Example of T-Sense torque sensor connected to two PEM4 touch screens Remark: ® When a TT-Sense Thrust &... -
Page 9: Installation Of The Pem4 Touch Screen
6.3 INSTALLATION OF THE PEM4 TOUCH SCREEN 1. Install the PEM4 touch screen in a control cabinet or control panel in the ECR or on the bridge, where it will be free as possible from moisture, large fluctuations of temperature and particularly of vibration shock. - Page 10 ® 5. Only applicable if an additional (second) touch screen is connected to the T-Sense system. Additional touch screens are connected to the system as described in Figure 5. For the use of two PEM4 screens a Ethernet switch is necessary.
- Page 11 6. IP settings of the PEM4 display In order to have no malfunction of the system the IP settings of the PEM4 display have to be set up correctly. The next steps will explain how to adjust the IP settings of the system. Switch off the power supply of the PEM4 display.
- Page 12 Ensure the IP address is 168.0.0.110 for the first PEM4 display. In case a second PEM4 display is installed the second screen should have IP address 168.0.0.111. If this is correct press “Next”. Set the DNS address to 255.255.255.0 and press “Done”. The screen below will appear. Press “Confirm”...
-
Page 13: Cable Specifications
Power supply (24 VDC) cable, 1x2x0,5 mm , flex strands IC-11 Connection cable Ethernet, CAT5e, Braid Shielded, RJ45 Remark: ® When a TT-Sense Thrust & Torque sensor is installed it can be connected in the same ® way as above mentioned T-Sense equipment. -
Page 14: Operating Principles
In this control box the signal is converted to a Ethernet, which signal is connected to ® the PEM4 touch screen. Zero torque adjustment will be done during commissioning of the T-Sense rotor and control box. -
Page 15: Operating Instructions Pem4 Touchscreen
7.4 OPERATING INSTRUCTIONS PEM4 TOUCHSCREEN 7.4.1 Operating menus The PEM4 touch screen includes with the following operating menus: 7.4.1.1 The user mode For daily use: In this mode all relevant system menus are displayed. Different pages could be selected by tapping the page at the top of the screen. 7.4.1.2 The settings mode (settings menu) for users Only displayed after choosing the “Settings Menu”... -
Page 16: Settings Menu
7.5.2 Propulsion screen Figure 8 – Propulsion screen This page is showing the average propulsion data over the last 1, 4 and 24 hours. When the propeller shaft is rotating the PEM4 is continuously recalculating these average values. In case the propeller shaft is not rotating the average values stay as they are. - Page 17 7.5.3.1 Settings menu, torque inversion Figure 10 – Settings menu, torque inversion When the touch screen is showing a negative torque value, when sailing ahead, you are able to convert this negative value to positive by pushing the “Standard” button once. “Standard” will now change to “Inverse”.
-
Page 18: Alarm Screen
7.5.3.4 Settings menu, info Figure 13 – Settings menu, info This screen is displaying all essential data in case you to have to contact VAF Instruments regarding ® your T-Sense torque measuring system. 7.5.4 Alarm screen Figure 14 – Alarm Screen In case the PEM4 touch screen detects that output data is missing the system will showing the alarm message “Communication Fail”. -
Page 19: Method Of Calculations
7.6 METHOD OF CALCULATIONS Shaft power is calculated from the measured torque and the revolutions of the shaft. Shaft power ∙ ∙ 9.945 = Shaft power [kW] = Torque [kNm] = rotations per minute [rpm] Total energy is calculated from the integrating shaft power over time ... -
Page 20: Maintenance
If the PEM4 stops working completely contact VAF Instruments for instructions. VAF Instruments is working with a RMA (return material authorisation), in the event the PEM4 has to be sent back for repair, you can contact VAF Instruments, by email: service@vaf.nl... -
Page 21: Trouble Shooting
15. TROUBLE SHOOTING 15.1 PEM4 MALFUNCTION If the PEM4 does malfunction, power the PEM4 down, check all wiring and power the PEM4 back up again. This will restart the program. 15.2 NO TORQUE SIGNAL The connection between the PEM4 and the stator control box is broken. ... -
Page 22: Drawings
17. DRAWINGS Drawing 1 – 0815-1023... - Page 23 Drawing 2 – 0815-2037...
- Page 24 Drawing 3 – 0815-2038...
-
Page 25: Abbreviations
18. ABBREVIATIONS PEM4 Touch screen for Ethernet communication SPU3 Signal Processing Unit, part of the PEM4 efficiency monitoring system Central Processing Unit Thin Film Transistor - Liquid Crystal Display PCAP Projected Capacitive Light Emitting Diode Liquid Crystal Display PT100 Temperature sensor type PT100 Type of flowmeter with Hall sensor and PT100 output 19. - Page 26 20. WARRANTY CONDITIONS 1. Without prejudice to the restrictions stated hereinafter, the contractor guarantees both the soundness of the product delivered by him and the quality of the material used and/or delivered for it, insofar as this concerns faults in the product delivered which do not become apparent during inspection or transfer test, which the principal shall demonstrate to have arisen within 12 months from delivery in accordance with subarticle 1A exclusively or predominantly as a direct consequence of unsoundness of the construction used by the contractor or as a consequence of faulty finishing or...
- Page 27 4. Defects not covered by the guarantee are those which occur partially or wholly as a result of: A. non-observance of the operation and maintenance instructions or other than foreseeable normal usage; B. normal wear and tear; C. assembly/installation by third parties, including the principal; D.
- Page 28 Vierlinghstraat 24, 3316 EL Dordrecht, The Netherlands Specifications subject to change without notice. P.O. Box 40, 3300 AA Dordrecht, The Netherlands VAF Instruments B.V. is an ISO 9001 Certified Company. T +31 78 618 3100 sales@vaf.nl, www.vaf.nl Agents and distributors in more than 50 countries.
