SERVICE MANUAL
EN
Extreme caution needed when using this product. Cutters have sharp blades which are
rotating at high speed. Never operate this product with the safety guard removed.
The 201-510 Roving Cutter is designed to cut glass rov-
ing into short lengths (1/4" to 1"), and dispense them into
the resin fan. When properly adjusted, the glass/resin
mixture will need a minimum amount of rolling.
The air supply hose must have a minimum 5/16" ID.
Lower air pressures or a smaller diameter hose could
result in poor operation.
77-2475-R5.2 (9/2017)

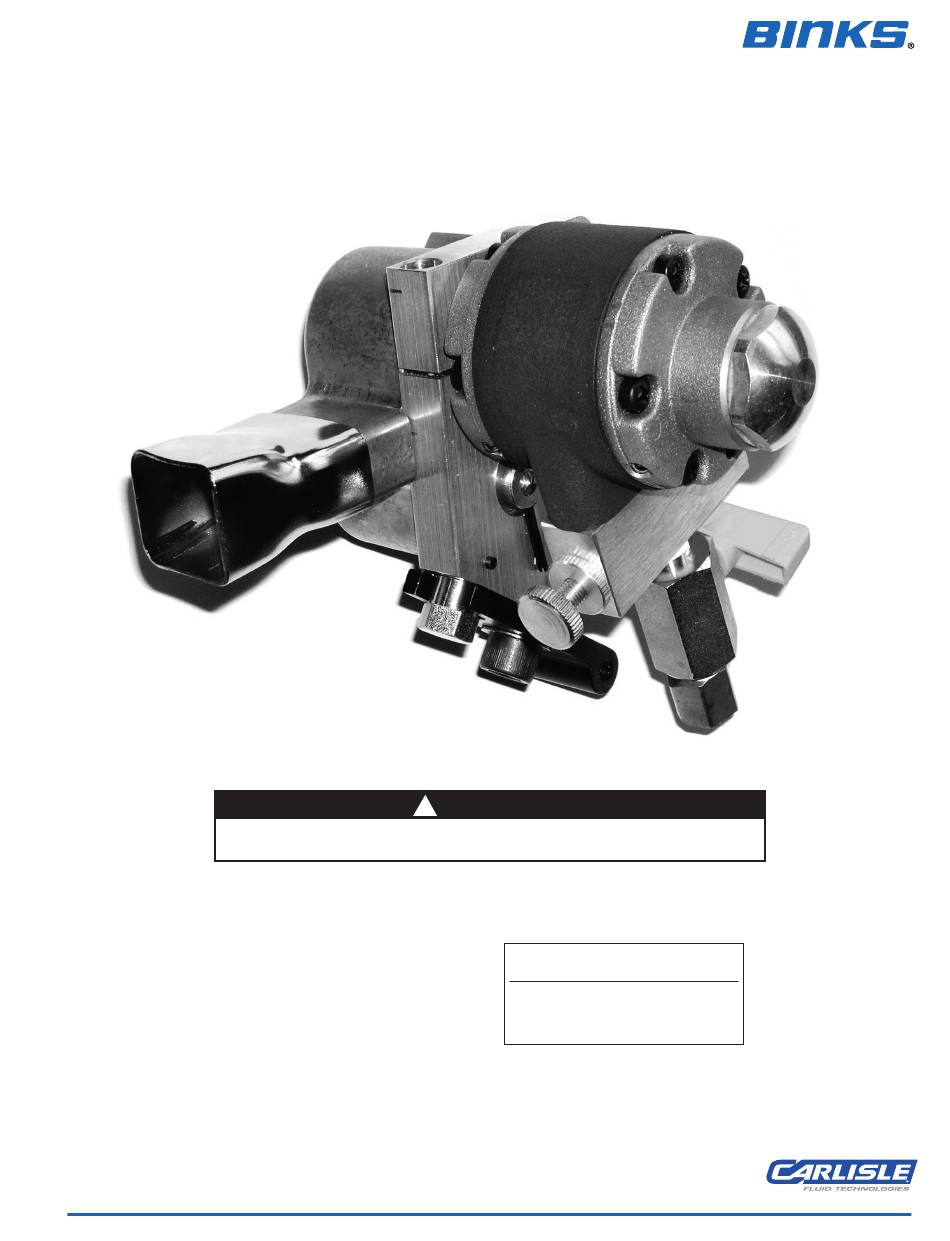

BINKS MODEL 201-510
ROVING CUTTER
WARNING
!
Max. Air Consumption: 27cfm (47 m
Max. Air Inlet Pressure: 80 psi (5.52 bar)
201-510 ROVING CUTTER
PACKAGE CONTENTS
207-10501
SQUARE CHUTE
207-12194
ANGLED CHUTE
207-10903
SPARE PARTS KIT
1 / 12
/h)
3
www.carlisleft.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 201-510 and is the answer not in the manual?

Questions and answers

Summary of Contents for Binks 201-510

  • Page 1 Extreme caution needed when using this product. Cutters have sharp blades which are rotating at high speed. Never operate this product with the safety guard removed. The 201-510 Roving Cutter is designed to cut glass rov- Max. Air Consumption: 27cfm (47 m Max.
  • Page 2 IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT. FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300). Binks reserves the right to modify equipment specification without prior notice. www.carlisleft.com 2 / 12 77-2475-R5.2 (9/2017)

  • Page 3: Parts List

    MODEL 201-510 CUTTER ASSEMBLY PARTS LIST When ordering, please specify Part No. ITEM PART ITEM PART DESCRIPTION QTY. DESCRIPTION QTY. 207-11403 BACK PLATE ......1 207-11182 CHOPPER GUARD ASSEMBLY... 1 237-39 SOCKET HEAD SCREW ....1 237-175 HEX HEAD SCREW ....1 237-38 SOCKET HEAD SCREW ....

  • Page 4: Operation

    Binks MODEL 201-510 ROVING CUTTER OPERATION: 8. For disassembling the air motor NOTE assembly (5), begin by removing To introduce roving to the cutter, dou- Lubrication is very important and the the two pins (5d) holding the tire ble over one end of roving and insert it motor should be oiled after every 2-4 shaft (5c) to the rotor.
  • Page 5 Binks MODEL 201-510 ROVING CUTTER WARNING USE CAUTION TO PREVENT ACCIDENTAL CUTS AS THESE BLADES ARE SHARP. Cutting Head Assembly: 3. Now you can add the manifold assembly (6) by sliding it into the back plate. Be sure to lubricate the three The cutter comes from the factory set to cut 1"...
  • Page 6 MODEL 207-12393 CHOPPER AIR MOTOR ASSEMBLY (ITEM NO. 5 IN PARTS LIST ON PAGE 4) REFER TO PART SHEET 77-2883 FOR DETAILS OF 5a PARTS LIST When ordering, please specify Part No. ITEM NO. PART NO. DESCRIPTION QTY. — AIR MOTOR ...... 1 237-22-K5 E-CLIP ........
  • Page 7 MODEL 207-11185 1" CUTTING HEAD ASSEMBLY (ITEM NO. 11 IN PARTS LIST ON PAGE 4) PARTS LIST When ordering, please specify Part No. ITEM NO. PART NO. DESCRIPTION QTY. 237-558 RETAINING RING ......2 237-574 BEARING ........1 207-11191-1 8 VANE CUTTING HEAD ..... 1 207-11186 ...
  • Page 8 MODEL 207-11415 CUTTER MOUNTING KIT (ITEM NO. 22 IN PARTS LIST ON PAGE 4) PARTS LIST When ordering, please specify Part No. ITEM NO. PART NO. DESCRIPTION QTY. 237-14 ROLL PIN ........... 1 207-11407 CUTTER ADJUSTMENT BRACKET ..1 20-263-1 WASHER ...........
  • Page 9 BINKS MODEL 207-12393 CHOPPER AIR MOTOR ASSEMBLY CA PROP PROP 65 WARNING WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. PARTS LIST When ordering, please specify Part No.
  • Page 10 ASSEMBLY INSTRUCTIONS: BINKS MODEL 207-12393 CHOPPER AIR MOTOR ASSEMBLY 1. Remove the end cap. 11. Install new vanes as required. The angle cuts on the vane face to the center of the rotor. 2. Remove dead end plate bolts. 12. Place the proper end plate gasket on the body of dead 3.

  • Page 11: Troubleshooting

    TROUBLESHOOTING TROUBLE PROBABLE CAUSE SOLUTION Glass wrap up. Wet glass or oil on anvil sleeve. Remove guard and clean out. Material in cutter guard. Blower control knob is shut. Open blower control knob. Tension adjustments. Correct tension adjustment. Dull or worn blades or anvil. Replace blades or anvil.

  • Page 12: Warranty Policy

    ©2017 Carlisle Fluid Technologies, Inc. All rights reserved. Binks is part of Carlisle Fluid Technologies, a global leader in innovative finishing technologies. For technical assistance or to locate an authorized distributor, contact one of our international sales and customer support locations.
