RCM Telemetry Instructions V2.0
Summary:

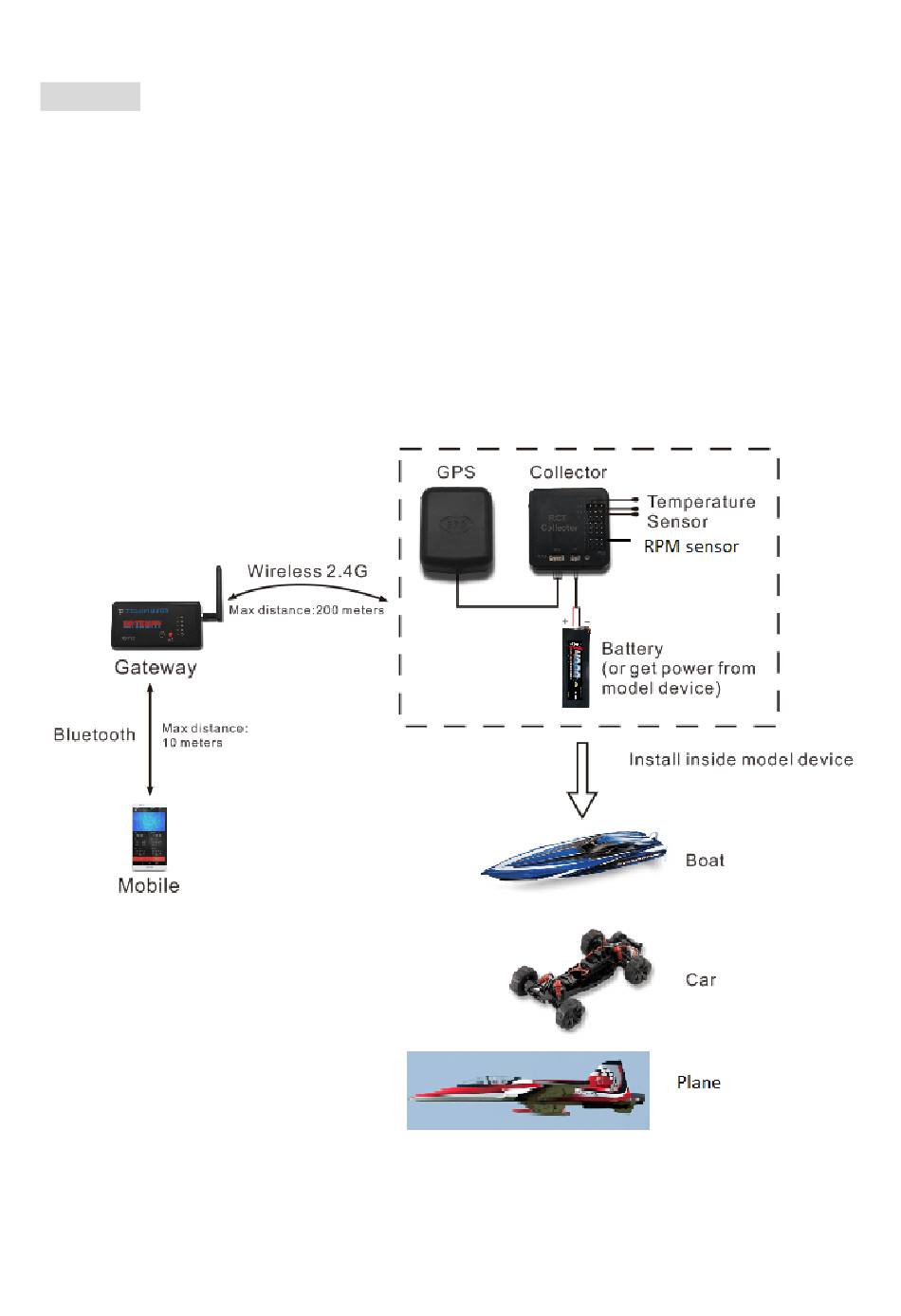

The RCM Telemetry System comprises five parts - Mobile App/Gateway/Collector/GPS/sensor.
The system collects and records real-time telemetry data as you drive. When powered the collector
will send real time data to your mobile device showing the RC model speed, running distance,
running route, voltage ,RPM, battery/ESC/motor temps. The application automatically detects and
recognizes sensors for easy setup and configuration. User can set alarm warnings for desired
thresholds, add points on the map. The mobile device will sound alarm (beep beep) for low battery
voltage and high motor/ESC/battery temps to protect the RC equipment. The recordings can be
named and saved to compare.
- 1 -
Advertisement
Summary of Contents for Offshore Electrics RCM Telemetry V2.0
- Page 1 RCM Telemetry Instructions V2.0 Summary: The RCM Telemetry System comprises five parts - Mobile App/Gateway/Collector/GPS/sensor. The system collects and records real-time telemetry data as you drive. When powered the collector will send real time data to your mobile device showing the RC model speed, running distance, running route, voltage ,RPM, battery/ESC/motor temps.
- Page 2 Instructions: Step 1: Scan the QR code and download the "RCM telemetry 2.0.Apk", install to mobile device, run the App, turn on the App Bluetooth after the gateway’s bluetooth light is illuminated . If your mobile have V1.0 App, please delete it before installing V2.0 App. Step 2 : Install collector/GPS into the RC model, attach sensors to battery/esc/motor.
- Page 3 LED Indication Light on Light off / blink 1 Red Power on Power off 2 Green Receiving signal from collector No signal reception 3 Green GPS receiving GPS UN-receiving 4 Green Sending signal to mobile Mobile no signal reception 5 Red Normal operation Short of power No.
-
Page 4: Rpm Sensor
Link procedure: Step1: Power on the collector ,move the plug to second and third interface. Step2: Power on the gateway, Press and hold the gateway's "FUN" button, until lights illuminate. Step3: Put the plug on the first and second interface, restart the collector and gateway. 3. - Page 5 Bluetooth icon , Press it and connect Bluetooth after the gateway’s bluetooth light is illuminated, each gateway with different Bluetooth number, stick on the back of Gateway Alarm/ motor GPS icon Setting the number as pole Setting you need, motor pole should be match the KMH/MPH device...
