ModuleMaster ABS Module Installation Instructions Manual

ABS Module Removal & Installation Instructions
Buick Rendezvous
2002-2007

Removal Procedure

1. Turn the ignition switch to the OFF position.
2. Remove the air cleaner housing from the engine
compartment.
3. Remove the master cylinder mount nuts.
4. Remove the master cylinder and place the
master cylinder off to the side, do not disconnect
the master cylinder brake pipes.

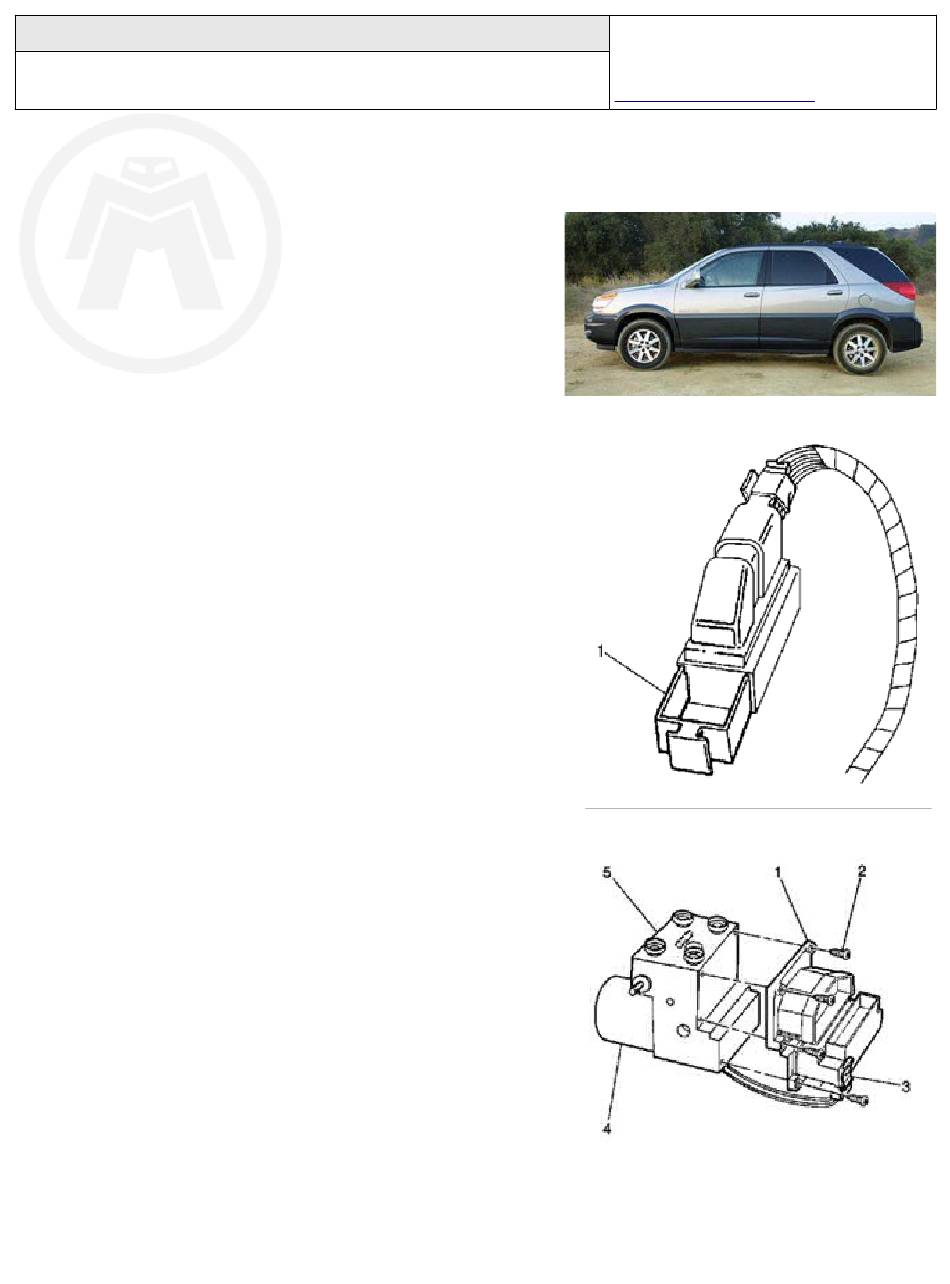

5. Disconnect the EBCM harness connector. Pull
out the locking tab (1) then pull the connector
straight off (upper right).
6. Brush off any dirt/debris that has accumulated on
the assembly.
7. Disconnect the pump motor connector (3) at the
bottom of the EBCM (lower right).
Important: Do not damage the seal by prying
the EBCM from the BPMV. Do not damage the
solenoid valves while removing the EBCM from
the BPMV.
8. Remove the six EBCM to BPMV screws (2).
9. Separate the EBCM (1) from the BPMV (5) by
gently pulling apart until separated. Important:
Do not use any tool to pry the EBCM off.
ModuleMaster
Support: 208-892-0764
www.modulemaster.com
2007 Buick Rendezvous
