OneStepAhead
EURO II

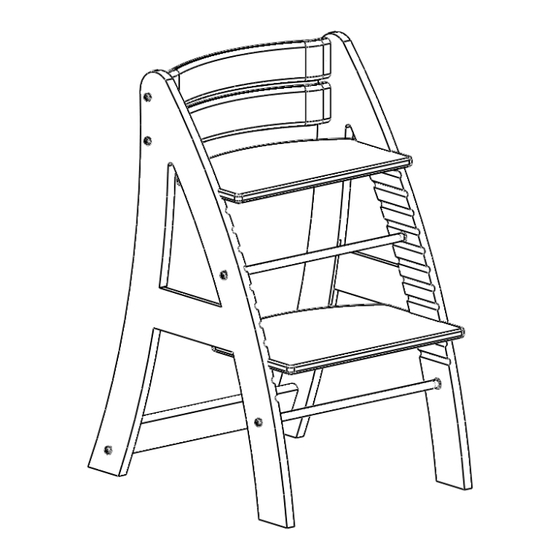

GROW WITH ME CHAIR
WARNING
Assembly Instructions.
Adult Assembly Required.
Read all instructions before use.
Save instructions for future use.
Never use with missing parts or hardware.
MODEL #22169
®
OneStepAhead
75 Albrecht Drive
Lake Bluff, IL 60044
1-800-950-5120
www.onestepahead.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for One Step Ahead EURO II
- Page 1 ® OneStepAhead EURO II GROW WITH ME CHAIR WARNING Assembly Instructions. Adult Assembly Required. Read all instructions before use. Save instructions for future use. Never use with missing parts or hardware. MODEL #22169 ® OneStepAhead 75 Albrecht Drive Lake Bluff, IL 60044 1-800-950-5120 www.onestepahead.com...
- Page 2 If your seat and/or footrest is NOT FIRMLY HELD IN POSITION, DO NOT USE THE CHAIR until you have contacted One Step Ahead for assistance. DO NOT allow anyone to climb, stand on, or play on or inside of this product. It is not a step ...
-
Page 3: Parts List
Parts List 1x Left Side 1x Right Side 1x Bottom Rail 2x Curved Back Rail 1x Allen Wrench 1x Seat Platform 1x Foot Rest Platform 1x Seat Cushion SAVE FOR FUTURE USE! 8x M6 x 35 Bolts 10x Washer 10x Spring Washer 1x Connecting Rod 2x M6 x 50 Bolts 2x Barrel Nut... - Page 4 Assembly Overview See Detail Below Step 1 Attach one end of CONNECTING ROD (N) into LEFT or RIGHT side panels (A or B). Insert the Screw (J), Spring Lock Washer (L), and Washer (K) thru the side panel and hand tighten. NOTE: DO NOT fully tighten screws at this time.
- Page 5 Step 2 Attach the opposite end of CONNECTING ROD (N) into remaining side panel (A or B). Insert the Screw (J), Spring Lock Washer (L), and Washer (K) thru the side panel and hand tighten. NOTE: DO NOT fully tighten screws at this time. Step 3 Install BARREL NUT (P) into BOTTOM RAIL (C), make sure that hole in Barrel Nut is aligned with hole in the end of the Bottom Rail to accept Screw (Q).
- Page 6 Step 4 Install the CONNECTING ROD (N). Insert the Screw (J), Spring Lock Washer (L), and Washer (K) thru the side panel and hand tighten. NOTE: DO NOT fully tighten screws at this time. J L K Step 5 Install SEAT PLATFORM (E) in the topmost seating position. The Seat Platform MUST be pushed back until it stops and will not slide in any further.
- Page 7 Step 6 Put the chair into an upright position on a flat and level surface. Level the chair and then securely tighten ALL of the bolts! IMPORTANT: DO NOT DISCARD THE ALLEN WRENCH. You MUST regularly check the bolts and retighten as needed using the ALLEN WRENCH included with the chair! Check and retighten 1-2 weeks after initial assembly.
