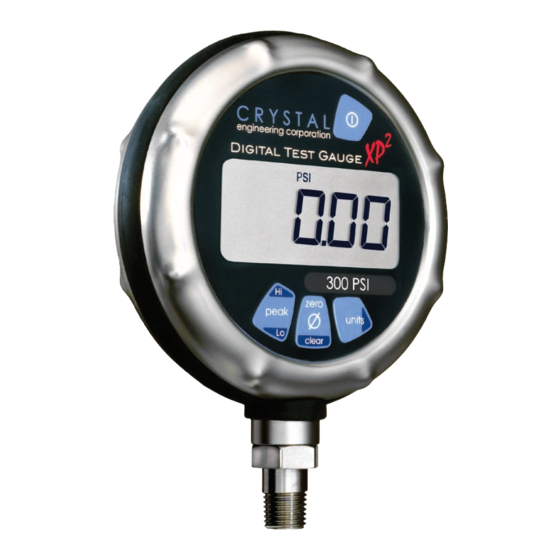

Summary of Contents for Crystal XP2

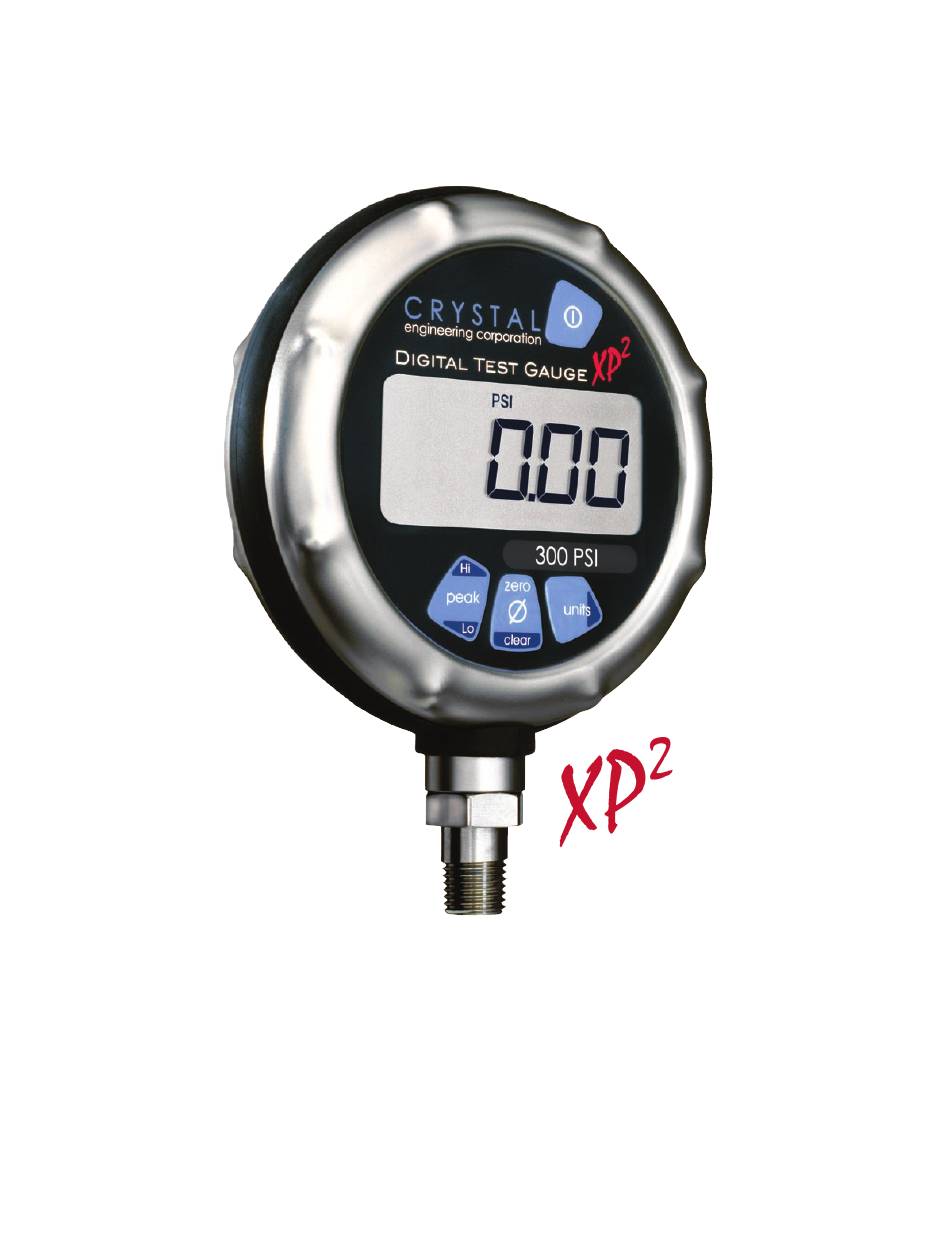

- Page 1 D i g i t a l T e s t G a u g e O p e r a t i o n M a n u a l C R Y S T A L engineering corporation...
-
Page 2: Table Of Contents
Contents Introduction ............4 Operating Instructions . - Page 3 XP2 Model & Serial Numbers ........
-
Page 4: Introduction
Many features in this and our other products are a direct result of your comments! Crystal Engineering is the company that designs, manufactures, markets and services the XP2, 30 series pressure calibrators, MultiCal multimeter pressure adapters and a variety of industry specific pressure measuring equipment. Crystal Engineering pioneered features like full temperature compensation and “of reading”... -
Page 5: Warning
first. Always check that the pressure has been equalized with ambient pressure before disconnecting the XP2! To zero or tare the XP2, you must turn off peak indication, then press the button zero for at least ½ second before it responds. The delay avoids unintentional changes to the zero/tare setting. -
Page 6: Peak Detection
Peak detection continuously records maximum and minimum applied pressure. To see the recorded values, press the button, and the icon will peak peak peak appear, along with the recorded peak pressure. Press the button again and the icon will appear instead, along with the minimum recorded pressure. -
Page 7: Measuring Vacuum
Measuring Vacuum All versions of the can be used to measure moderate vacuum, though only ranges of 300 PSI (and 20 bar or 2000 kPa) and lower are actually tested and certified for vacuum operation. When measuring pressure less than ambient barometric conditions, a minus (-) sign will appear. -
Page 8: Low Battery Indication
Low battery indication The battery icon ( ) is the first indication of a low battery. The will continue to operate accurately while the icon is visible. When the batteries are exhausted, the letters “batt” will appear across the display. After “batt” appears, no pressure measurements will be possible until the batteries are replaced. -
Page 9: Troubleshooting
Troubleshooting is a very high performance gauge. Due to the high resolution of this product, you may observe conditions that appear to be defects in the product, but are in fact a result of being able to resolve and measure pressure to a degree not possible with other instruments. Noisy or unstable reading when used with fluids When calibrating or comparing the indicated pressure from an against a hydraulic... -
Page 10: Digital Interface
24 bytes.) A decimal point will always be included with the pressure value (for clarity) even if it is not displayed on the XP2. For example, a pressure query of a 300 PSI on the mbar scale could return a reading like this: 2478. -
Page 11: Pressure, High
For example, a 100 PSI would return 100.00 Model ?MOD Return the model name, up to 20 characters long. For example, a 100 PSI XP2, dual display would return the following: 100PSIXP2 Version ?VER Version returns the XP2’s firmware version as a 4 digit number preceded by the letter “... -
Page 12: Serial Number
Serial Number ?SN# The serial number is returned in two strings, which are also shown sequentially on the display. A typical example is shown below: 12659 Commands The following are commands. All commands start with an exclamation mark ( Next Pressure Unit !I,P This command is acknowledged with a simple “... -
Page 13: Reset
Reset !RST This command schedules a reset. There will be a three second pause before resets; during this time, no commands or queries should be sent to the unit. When the unit resets, a product identification string, called the Boot Signature, is sent. -
Page 14: Troubleshooting The Digital Interface
Troubleshooting the Digital Interface The following section gives possible reasons for various error codes. N,Ø The “ Ø ” indicates there were no overrun or framing errors, so the command was properly received. However, the “ ” means the could not match it to any allowed command. -
Page 15: Programming Tips
This advice is derived from our own experiences automating systems based on the XP2, as well as the experiences of our users; following it will probably save you some time. Anytime you establish (or re-establish) communications with the unit, you should use the following initialization sequence, which will help you deal with possible noise due to reset, etc.:... -
Page 16: Calibration
WinXP2 Configuration Software). “Zero” the XP2, then record displayed pressure for two or more pressure points. Determine if would benefit from an overall increase or decrease of the indicated pressures. To change the userspan factor from the keypad, turn off the XP2, then press the... -
Page 17: Xp2 Model & Serial Numbers
XP2 Model & Serial Numbers The model number and serial number of your are located behind the battery cover under a battery. Serial Numbering System Serial Numbers consist of 6 numbers, with the left most digit representing the year of manufacture. -
Page 18: Pressure Ranges, Display Scales & Resolution
PRESSURE is Our BUSINESS ™ PN: 2975 Rev F, 3/2004 Page 18 of 24... -
Page 19: Specifications
Specifications Accuracy specifications are for one year, and include all effects of linearity, hysteresis, repeatability, and temperature within the specified operating temperature range. The gauge must be exercised and re-zeroed whenever exposed to significant changes in environmental conditions to achieve these specifications. To exercise the gauge, cycle the gauge between zero and the pressure of interest. -
Page 20: Connection
Connection ″ NPT stainless steel filter. Pressure Fitting: ¼″ male NPT with integral Enclosure Stainless steel, designed to meet NEMA4 and IP66. Weight: 500g (17.6 oz.), including batteries. PRESSURE is Our BUSINESS ™ PN: 2975 Rev F, 3/2004 Page 20 of 24... -
Page 21: Power
Power Batteries: 3 x AA, alkaline recommended can be operated from an external power supply (AC adapter kit PN: 2984). Battery Life: 1500 hours continuous operation Low Battery Indicator: Battery Icon ( Dead Battery Indication: “batt” Certifications has been tested and certified to comply with a variety of international standards. C-tick This complies with the Australian requirements for the C-tick mark. -
Page 22: European Community Declaration Of Conformity
Crystal Engineering Corporation 720 Aerovista Place, Suite B San Luis Obispo, CA, 93401 declare that Digital Pressure Gauge XP2 Series (Battery or DC Power Supply Accessory) In accordance with the following directives 89/336/EEC The Electromagnetic Compatibility Directive and its amending directives... -
Page 23: Accessories
LabVIEW™ ......National Instruments “Pressure is Our Business™” is a registered trademark of Crystal Engineering Corp. -
Page 24: Warranty
Crystal Engineering will, at our option, repair or replace the defective device free of charge and the device will be returned, transportation prepaid. However, if we determine the failure was caused by misuse, alteration, accident or abnormal condition of operation, you will be billed for the repair.
