Summary of Contents for ZURN QHPM-2S

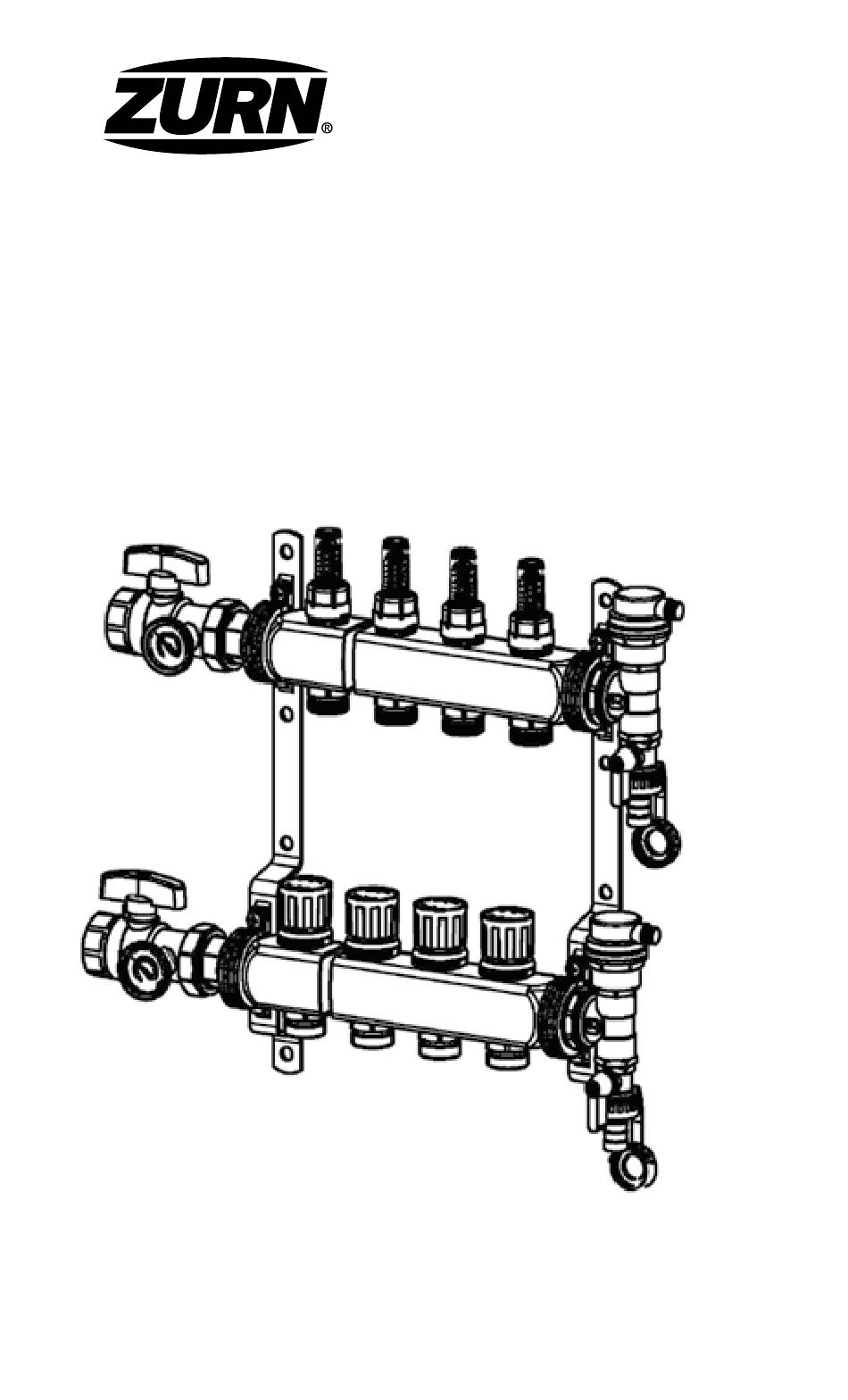

- Page 1 QHPM Stainless Steel Heating Manifold Operating Instructions...
-
Page 2: Specifications
Specifications Product Code QHPM-2S 8" [203] 11.68" [296.5] 1.96" [50] 4.13" [105] 3.31" [84] 5.35" [136] QHPM-3S 8" [203] 13.65" [346.5] 1.96" [50] 4.13" [105] 3.31" [84] 5.35" [136] QHPM-4S 8" [203] 15.61" [396.5] 1.96" [50] 4.13" [105] 3.31" [84] 5.35"... -
Page 3: Technical Data
Specifications Product Code Size Circuits Connections QHPM-2S 1" Inlet 3/4" QHPM-3S 1" Inlet 3/4" QHPM-4S 1" Inlet 3/4" QHPM-5S 1" Inlet 3/4" QHPM-6S 1" Inlet 3/4" QHPM-7S 1" Inlet 3/4" QHPM-8S 1" Inlet 3/4" QHPM-9S 1" Inlet 3/4" QHPM-10S 1" Inlet 3/4"... - Page 4 Connecting The Heating Circuits Attach the tubing to the appropriate Using the spanner, tighten the circuit and header. compression nut. Repeat procedure for all remaining circuits.
-
Page 5: Sample Configuration
Sample Configuration Typical manifold piping configuration example:... - Page 6 Flow Meter Adjustment And Operation Flow meter before Remove the set ring. To increase flow, turn adjustment. the flow meter counter clockwise. To decrease flow, turn flow Reattach the set ring. Repeat procedure for all meter clockwise. remaining flow meters.
- Page 8 ZURN PEX , INC. ® HIGHWAY 11 EAST COMMERCE, TX, USA 75428 PHONE: 855-ONE-ZURN (855-663-9876), FAX: 1-800-209-2148 In Canada: ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE, MISSISSAUGA, ONTARIO L4V 1L2 PHONE: 905-405-8272, FA X: 905-405-1292 www.zurn.com Form No. ZMKTG370-65, Rev. 10/12...
