OZtrail OZ2210 Instruction Manual

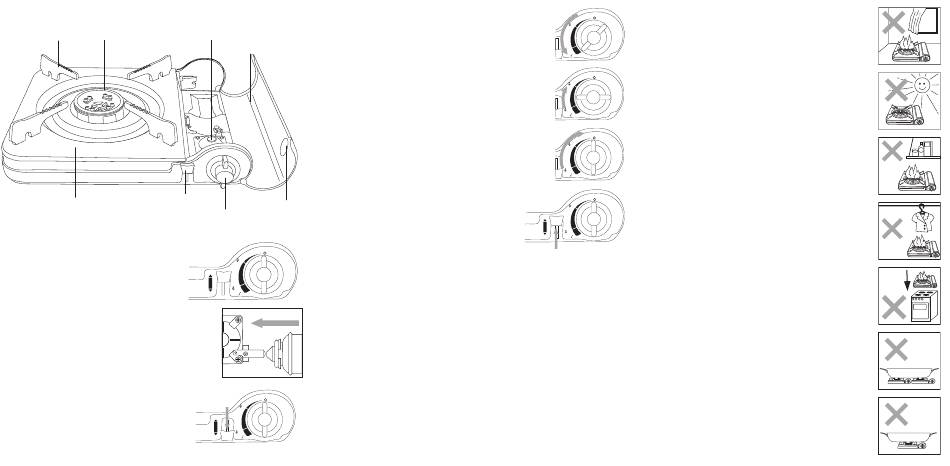

NAME OF PARTS
Pot Stand (Trivet) Burner Head Valve & Cartridge Guide
Cartridge Lever
Drip Pan
OPERATING INSTRUCTIONS
Fitting Gas Cartridge:
1. Turn the control knob to the OFF position. Make sure that the cartridge
lever is in the UNLOCK position. If the gas knob is in the ON position the
cartridge cannot be put into position.
2. Open the cartridge cover and insert the gas cartridge. Make sure that the cartridge slot fits
into the cartridge lever guide on the valve inside the stove.
(Caution: Use only approved butane gas cartridge UL147B or EN417)
3. When you are ready to use the stove, push the cartridge lever down to the
FUEL-LOCK position. If a hissing sound or gas smell is evident, check that
cartridge is fitted correctly. Repeat step 2 to stop the gas leakage. If lever is
hard to push down, do not force it. Check that the cartridge is fitted
correctly and the control is in the OFF position.
Ignition:
1. Turn the control knob towards the IGNITION position until a click is heard from the piezo
ignitor.
Cartridge Cover
2. If ignition fails, turn the control knob back to the OFF position and repeat.
Heat Control:
1. The control knob can be positioned on 'Maximum', 'Minimum', etc. Adjust it to the suitable
position for cooking.
2. When turning the control knob from 'Maximum' to 'Minimum', turn slowly toward 'Minimum'.
Extinguishing:
1. Turn the control knob to the OFF position. Confirm that the flame is completely extinguished.
2. Raise the cartridge lever to the UNLOCK position, and take out the gas cartridge.
WARNING!!
• Switch cartridge lever to UNLOCK position when appliance is not in use.
Reference Window
• Do not store cartridge in stove during transportation or storage.
Control Knob
• Replace the nozzle cap back onto the cartridge to protect nozzle and avoid accidental gas
leakage if nozzle is bumped or depressed.
• Avoid boil overs and spillage.
• During use parts may become very hot. Keep young children away.
• When hot only handle the appliance by the control surfaces intended to be touched.
OFF
• Allow to cool before moving or handling.
MIN
• Do not use as space heater.
UNLOCK
• Do not use for any other purpose other than cooking.
• Remove all packaging before use. Do not operate stove in the carry case.
MAX
LOCK IGNITION
• Caution: Never obstruct the air openings or vents on this appliance.
PRESSURE SENSITIVE SAFETY DEVICE
If the stove is used in a hot area such as outdoors in direct sunlight or incorrectly (not in
accordance with these instructions), the internal pressure of the cartridge will increase.
If the pressure reaches a dangerous level the in-built safety device will activate stopping
the flow of gas and extinguishing the flame. If the in-built safety device activates,
determine and correct the cause before reusing the stove.
Re-igniting the stove after the pressure sensitive safety device has been activated:
OFF
1. Remove the gas cartridge from the stove. Push in the nozzle of the cartridge for a second to release pressure from the cartridge.
MIN
Place the cartridge in a cool area for a while to lower the pressure to normal.
UNLOCK
2. Turn the control knob to the ON position to remove excess gas from the valve.
MAX
IGNITION
LOCK
3. Repeat instructions as set out in this manual (Operating Instructions).
PRECAUTIONS
OFF
MIN
Gas Cartridge:
UNLOCK
1. This appliance shall only be used with a butane cartridge certified to UL147B or
MAX
EN417 IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER TYPES OF GAS CARTRIDGES.
IGNITION
LOCK
2. The cartridge should be placed away from flammable products or direct sunlight.
Never keep cartridge in places where the temperature is over 50˚C.
OFF
3. Do not subject the cartridge to impact or rough handling.
MIN
4. Cartridges must be stored outdoors in a well ventilated location out of reach
UNLOCK
of children.
MAX
5. Do not puncture or incinerate empty cartridge.
LOCK IGNITION
6. Avoid carrying cartridge in the boot of a car or any unventilated enclosure.
7. Gas cartridges shall be changed in a well ventilated location, preferably outside,
OFF
MIN away from people and any sources of ignition such as naked flames, electric
heaters/equipment.
UNLOCK
8. To check if gas cartridge contains gas, disconnect from the stove, then hold upright
MAX
and shake from side to side. If you can feel or hear liquid movement, it contains gas.
IGNITION
LOCK
Stove:
OFF
1. Check the seals between the appliance and the gas cartridge are in place and in
MIN
good condition before connecting the gas cartridge.
UNLOCK
2. Do not use this appliance if it has damaged or worn seals
MAX
LOCK IGNITION
3. Do not use this appliance if it is leaking, damaged or does not operate properly.
4. If there is a leak on your appliance (smell of gas) and you cannot stop the gas flow,
remove the appliance to a well ventilated location away from any ignition source.
Only check for leaks outdoors using a soapy water solution. Do not try to detect
leaks using a flame.
5. This appliance must only be serviced by an authorised person.
6. Do not modify this appliance
Use:
1. Do not use for any purpose other than cooking. Incorrect use may result in
overheating, incomplete combustion and/or a risk of fire or explosion.
2. Do not put items such as briquettes or heat beads on the stove.
3. In the event of a gas leak (smell of gas) immediately turn the control to the
off position and move the cartridge lever to the unlock position to isolate
the gas supply.
4. Do not move the appliance during operation.
5. The maximum sized vessel (pot or pan) to be used on this stove is 21cm diameter.
