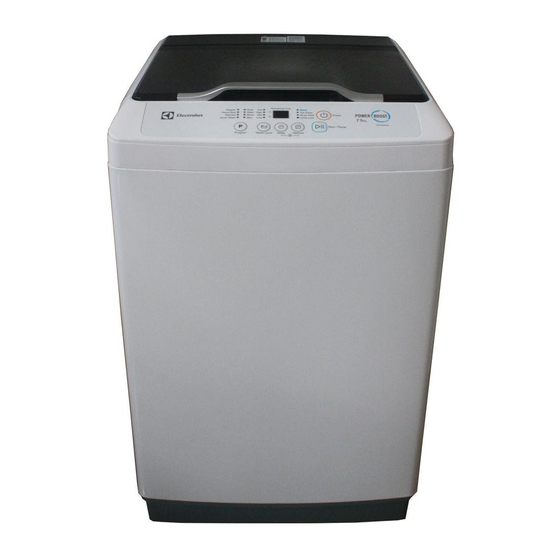

Electrolux EWT654XW Installation Instructions

INSTALLATION INSTRUCTIONS

1.Unpacking and bottom cover
1.1 Take the machine out of the
packaging base.
IMPORTANT : The top polystyrene
must be removed the last process,
protecting the drum from hitting the
cabinet when the machine is tilted.
1.2 After lifting the machine out,
all the packaging base must be
removed.
2.Bottom cover insertion
Lay down the machine on its back
side, and insert the bottom cover
into slot until to the end, then fasten
the screw.
Corner
Packing
Bottom Cover
Motor Base
Polystyrene Base
IMPORTANT :
the cabinet by placing two of the corner
packing pieces supporting between
back of machine and floor.
IMPORTANT:
Top polystyrene must be removed after
installation bottom cover.
Lift up the machine and remove the top
polystyrene.

3. Drain hose

3.1 Holding the hose clamp and
squeezing it, then put it into the
drain hose inserting.
3.2 Insert drain hose into the drainage
holes at the bottom of washing
machine until it comes to end.
Squeeze hose clamp again and
shift it to the location as shown
on picture to lock the drain hose.
16
Prevention damaged to
Inlet hose and Drain hose
are placed under the top
polystyrene.
