EOM-POS EOM-375 Quick Setup Manual

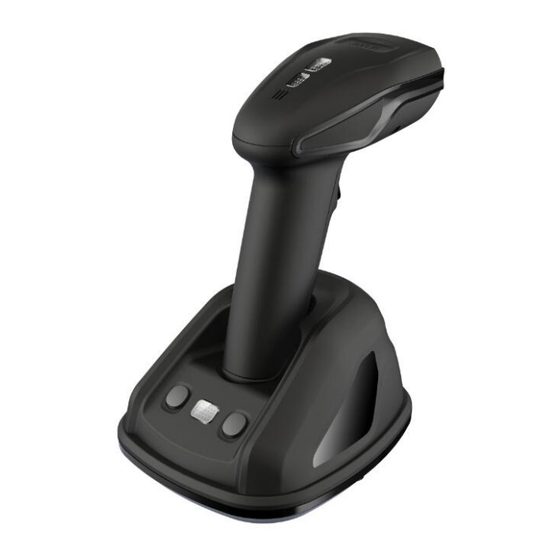

Handset&Cradle
Wireless Barcode Scanner
Quick Setup Guide
A Handset
①Data Indicator（Front）
②Power Indicator（Back）
B Cradle, data relay and charging handset
⑤Indicator
⑥Pairing Button
Reset toDefaults

Installation

Step1. Refer to the below pictures, connect the cradleto host (e.g. PC)
with different cables firstly：
USB End: Plug the RJ45 endinto cradle ⑧,and plug the other endto the
host.
①
②
④
□ ③
A
□
B
Keyboard
PS/2 end to PC port and the female end with keyboard wire.
⑥
⑧
⑤
⑦
③Trigger
④View window of capture
RS232 End：
⑦Channel Button
⑧Data & Power Interface to connect to PC. Power port on RS232 cable connect to power
adaptor(DC5V).
Typically,the cradle will identify theinterface type automatically. In
extreme casescradle may need a manuallysetting if the host fails to
identify it. Please trigger the code below for manual setting.
Automatic Identification
USB cable
Note: The auto setting of interface type will only be activated when
PS/2 End:Plug the RJ45 to cradle ⑧ ,and connect the male the pairing is well done. Please refer to the Step2 and Step3 for pairing.
Step 2.Put the handset onto the cradle, then pair the handset and
cradle: Press and hold cradle
handsetissued a "beep-beep-beep" sound.
Note:1 cradle can support maximum 100 handsets. The handset cannot
upload data if the handset and cradle were not well paired.

Usage of Scanner

Power On/Power off
PS/2cable
Scanner will be power on when the trigger is pulled.When the scanner is
RS232 cable RJ45 side to connect cradle ⑧ ,the other side
not operated for 30seconds,it will turn off automatically.
Code capture
In the standby mode, pull the trigger to capture code. Make sure
the red aiming line
Recharging
1, Place the handset onto the cradle to start recharging.
2, Using USB DC adapter or USB ports on PCas the power source, it can
be chargedby MicroUSB cable via interface at the handset bottom.
Note ： 1. When the handset is low power, the power
indicator
2.When the handset is recharging, the power indicator keeps
cable
RS232
flashing red, and it turns yellow on when charging finishes.

Built-in Data Memory

In Auto-storing Mode, if the handset is out of contact distance limit
with the cradle,the captured code data will be saved into built-in
(Default)
handset memory and the data indicator
USB
upload the codedata to the cradle automatically whenthe contact
PS/2
connection comes back normal.Then the data indicator
RS232

Multi-Cradles working

In case two or more cradles working in the same room, please set
them to different channels to ensure high upload efficiency as follow.
1. Open a notepad or any text editoron the host to display the channel
number.
⑥ for about 4 seconds,until the
2. Press the cradle Channel button
3. Put the handset onto the cradle. Press and hold the cradle
button
Remark: If two or more cradles working in the same signal channel, it
will slow down upload speed. However, they won't jam with each other.
Indicator&Button
Scanner Indicator
Indicator
Power
Indicator
is covering the full code.
(②Back)
Data
indicator
(①Front)
will beflashinggreen.
Possibility of upload failures: Cradle disconnected to PC; Exceeding
②
distance limit; Handset working in Manual Upload Mode (stock check).
① turns red.The handset will
turns green.
②
⑦ to change the channel number.
⑥ for about 4 seconds to pair the handset and cradle.
state Meaning
Green Started normally
Greenflash Power low,need to recharge
Red flash Recharging
Yellow Recharge finished
Green All data uploaded
Red Stored data pending to upload
Red flash Data storage is full
Yellow flash Data is uploading
